Ferrari Mondial 8 spare parts

Quick navigation: Engine and Gearbox - Bodywork - Air Intake and Fuel System - Steering - Brakes and Clutch - Electrics - Cooling and Heating - Interior - Wheels - Exhaust

Visit our webshop for all parts for this vehicle

Engine and Gearbox

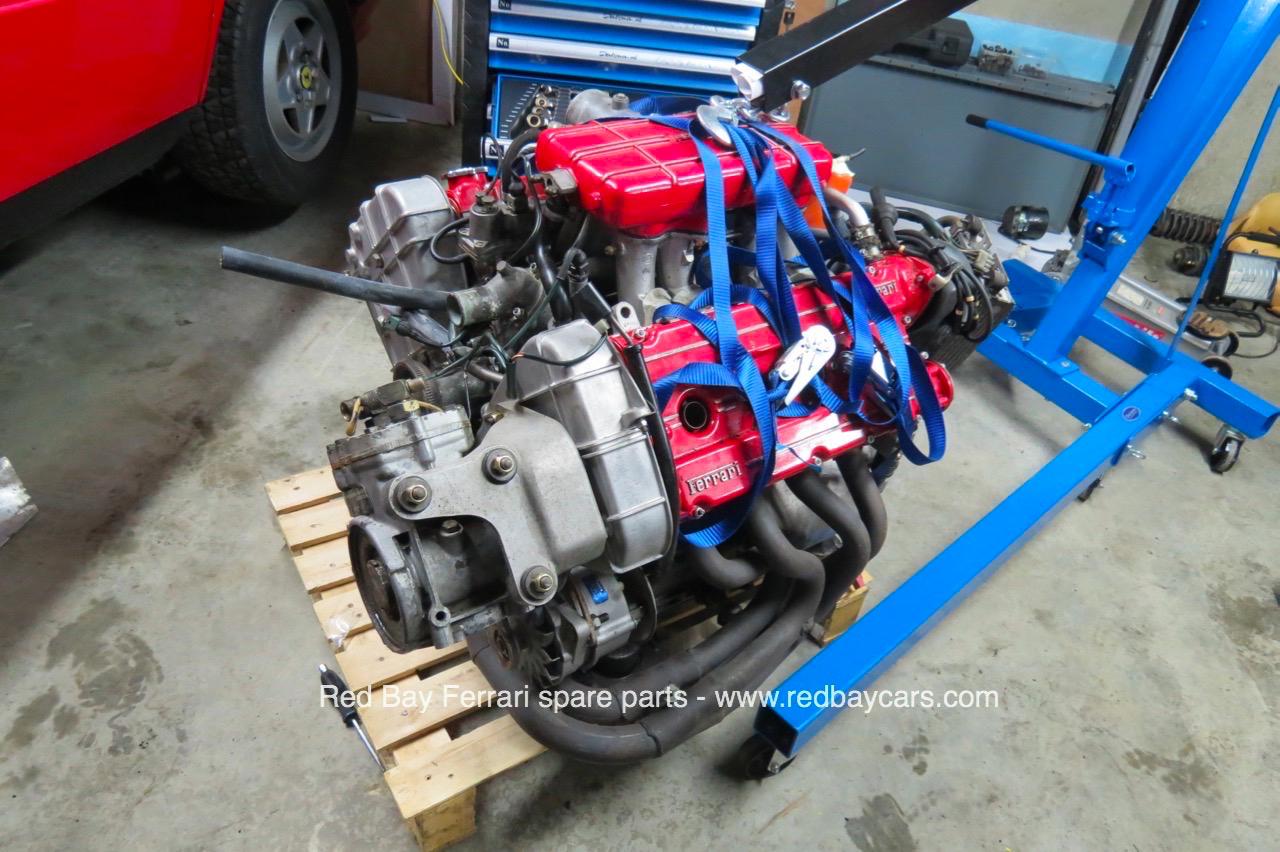

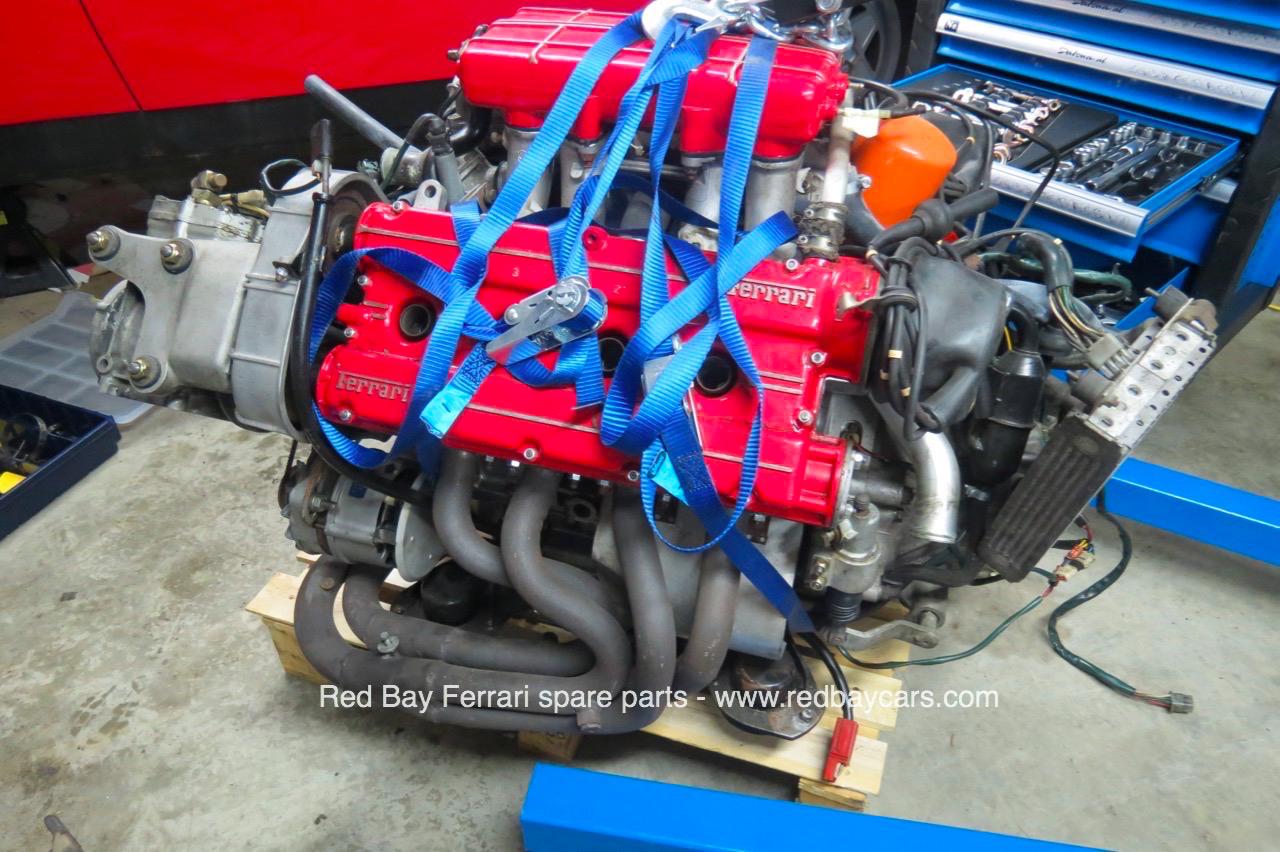

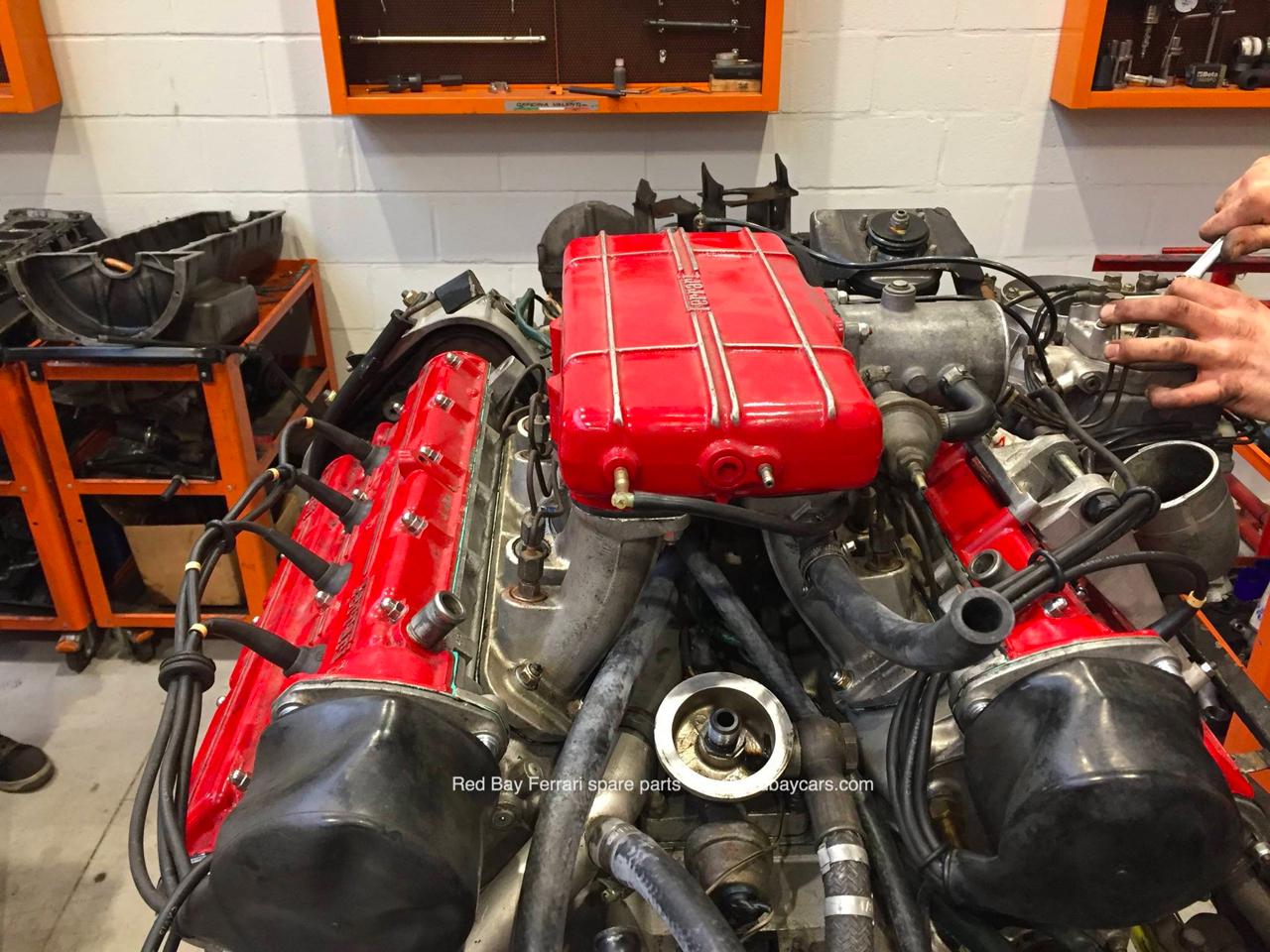

Ferrari Mondial 8 engine type F106B with gearbox and clutch

Specifications: V8 DOHC engine of type F106B, 2 valve / cylinder, 8V location 90° with capacity 2926 cc. Maximum output of 240 bhp (160 kW) at 7200 rpm. A very reliable engine that had approximately 26,420 miles when removed from the car, a RHD Mondial 8 of 1980. Many pictures available of the original car and engine.

History: the donor car saw its engine with transmission removed in 2011 when the previous owner removed it to use in a Mondial QV. In 2011, the engine was partially rebuilt: the cylinder heads were overhauled, new belts, liquids and the entire engine and gearbox were cleaned and covers were sprayed. The odometer of the car is still available.

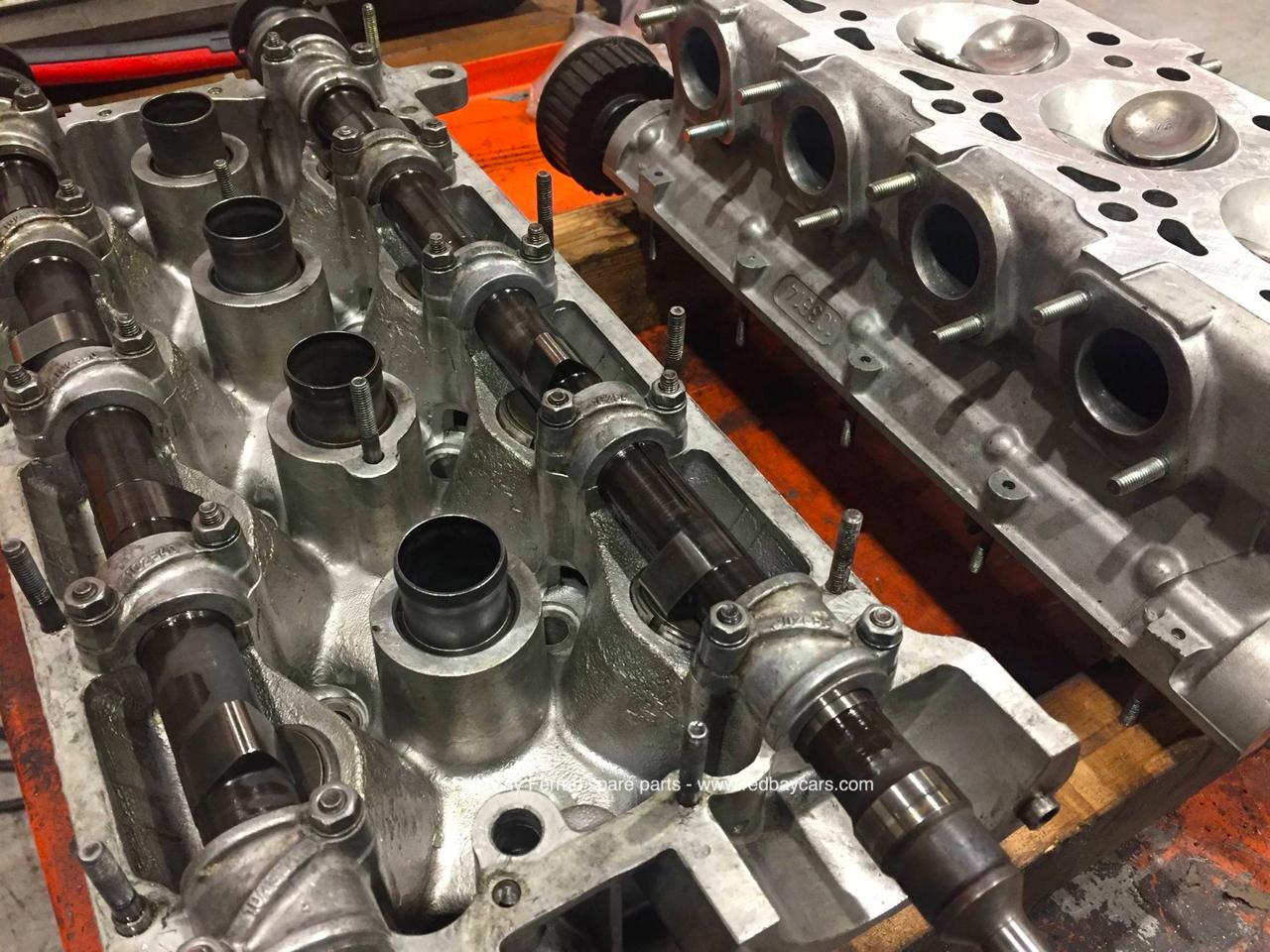

In March 2017, the cylinder heads were rebuilt a second time because the valves and valve seats had to be replaced, done by a specialist in Italy. Many pictures available.

A lot of money went into this engine to have it fully working ! Full history available including hundreds of pictures.

Condition: The engine and gearbox are fully working and in excellent condition, engine works fine and has been tested. Ready to be built in !!!

INCLUDED the engine and gearbox including sensors and cables. EXCLUDED: the cooling liquid reservoir, subframe and Magnetti Marelli consoles.

Pictures here, here, here, here and here

Price : SOLD

Bodywork

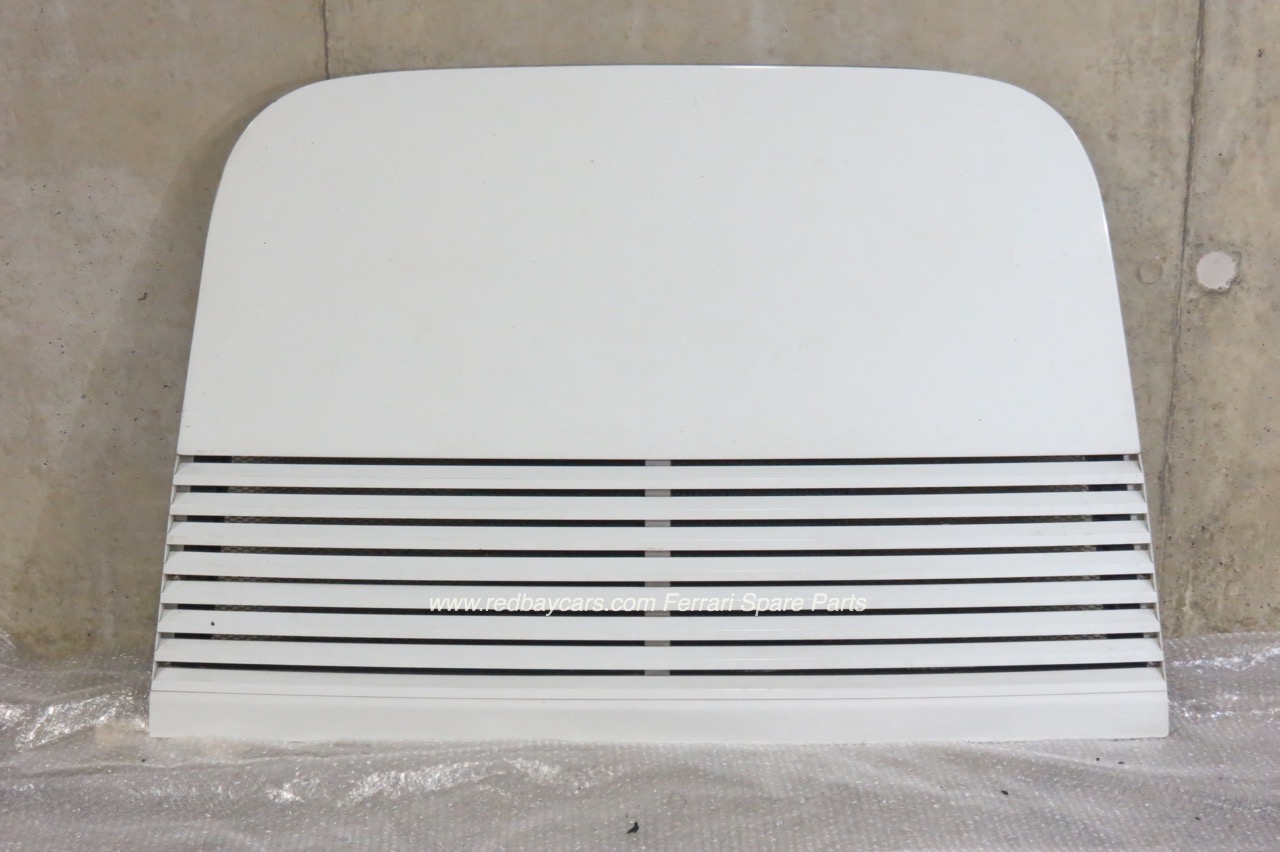

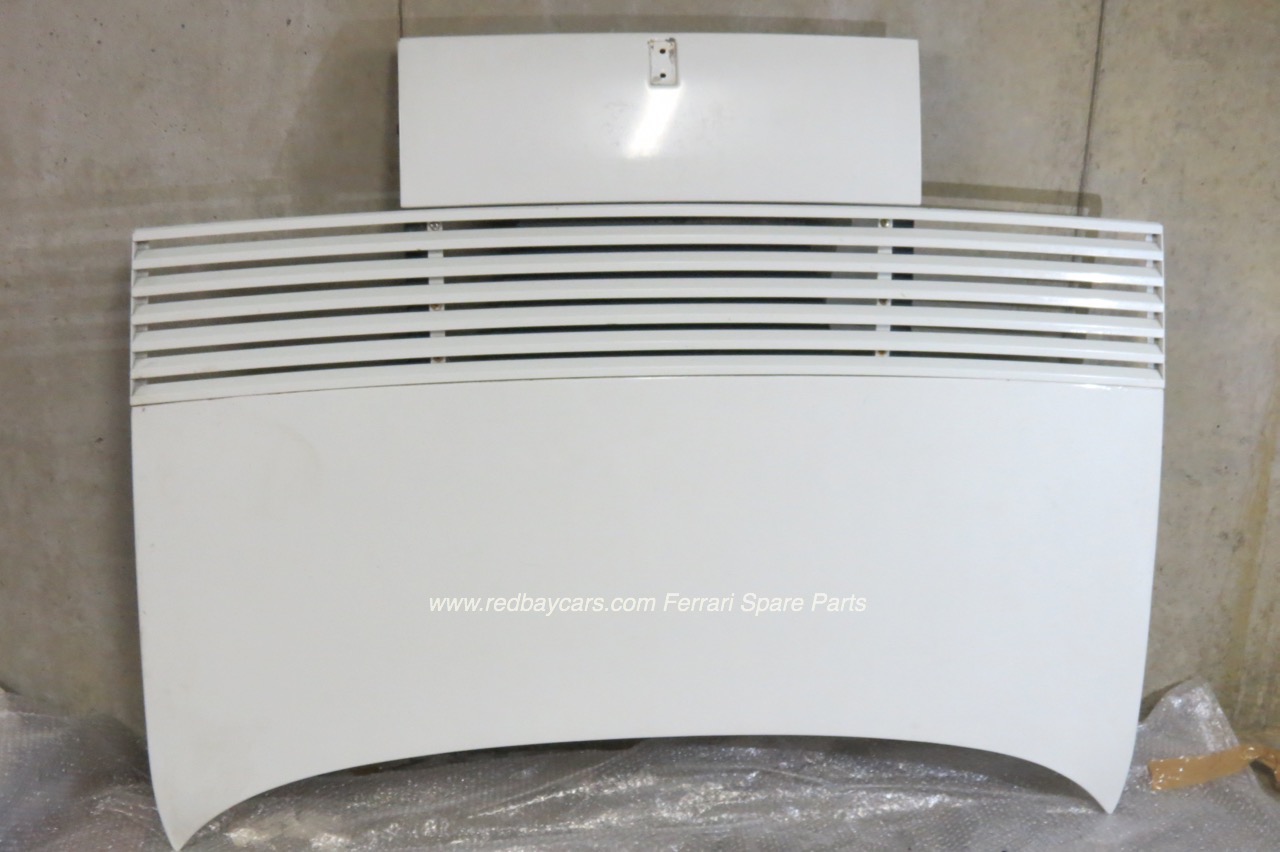

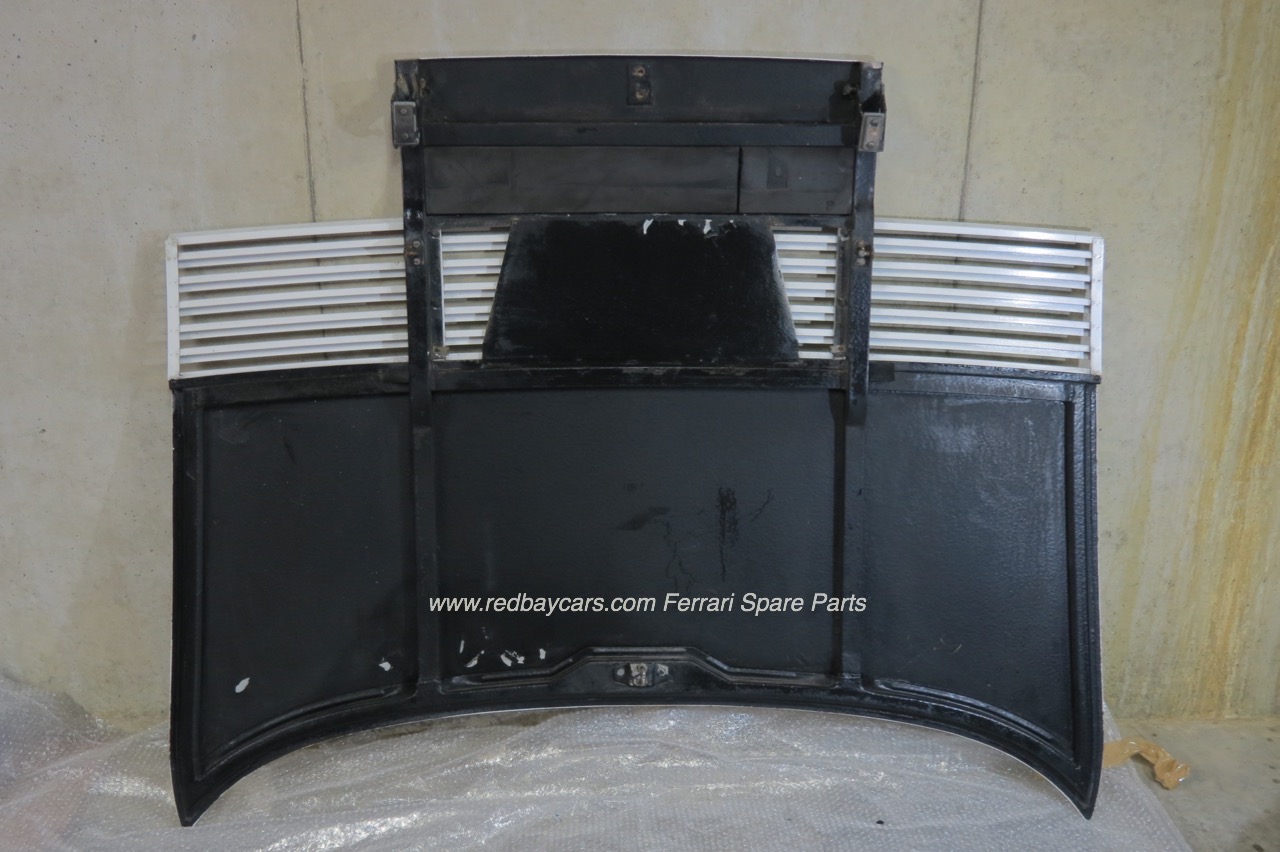

	Part nr 60952800 Front bonnet with grill, catch, hinges and pin Lid in original bianco color, includes the grill (part 60559600), catch (part 60536900), hinges (60918700) and pin. A complete hood! 1 small dent at the top of the hood near the area for the Ferrari shield. Overall in very good condition. Price: 845 euro Detailed picture here and here		Part nr 60533900 Engine bonnet with grill, catch, pins and hinges In bianco color, including the grill (part 60536400), pins, catch (part 60702100) and hinges (part 60515100), complete and ready to be installed. Bodywork and paint in excellent condition. Available in the webshop Detailed picture here and here

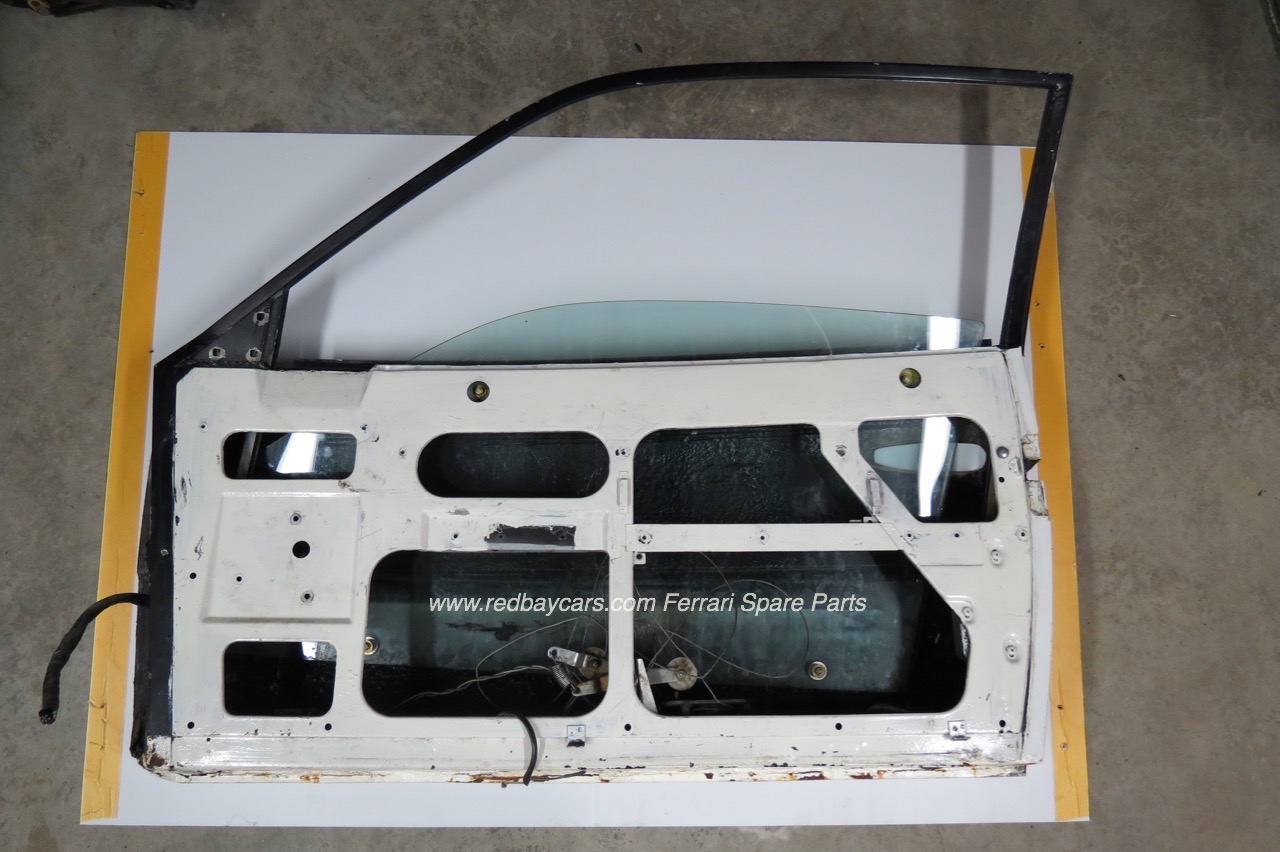

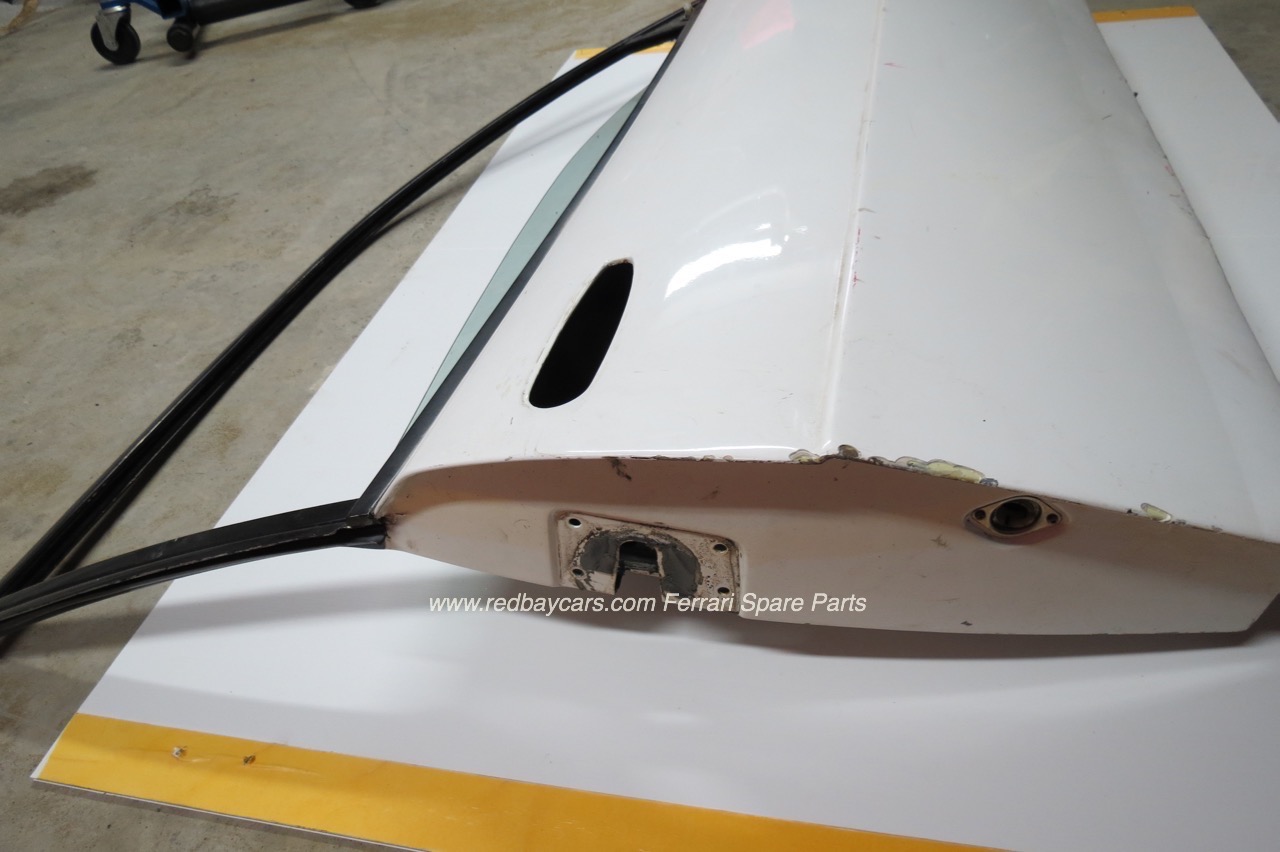

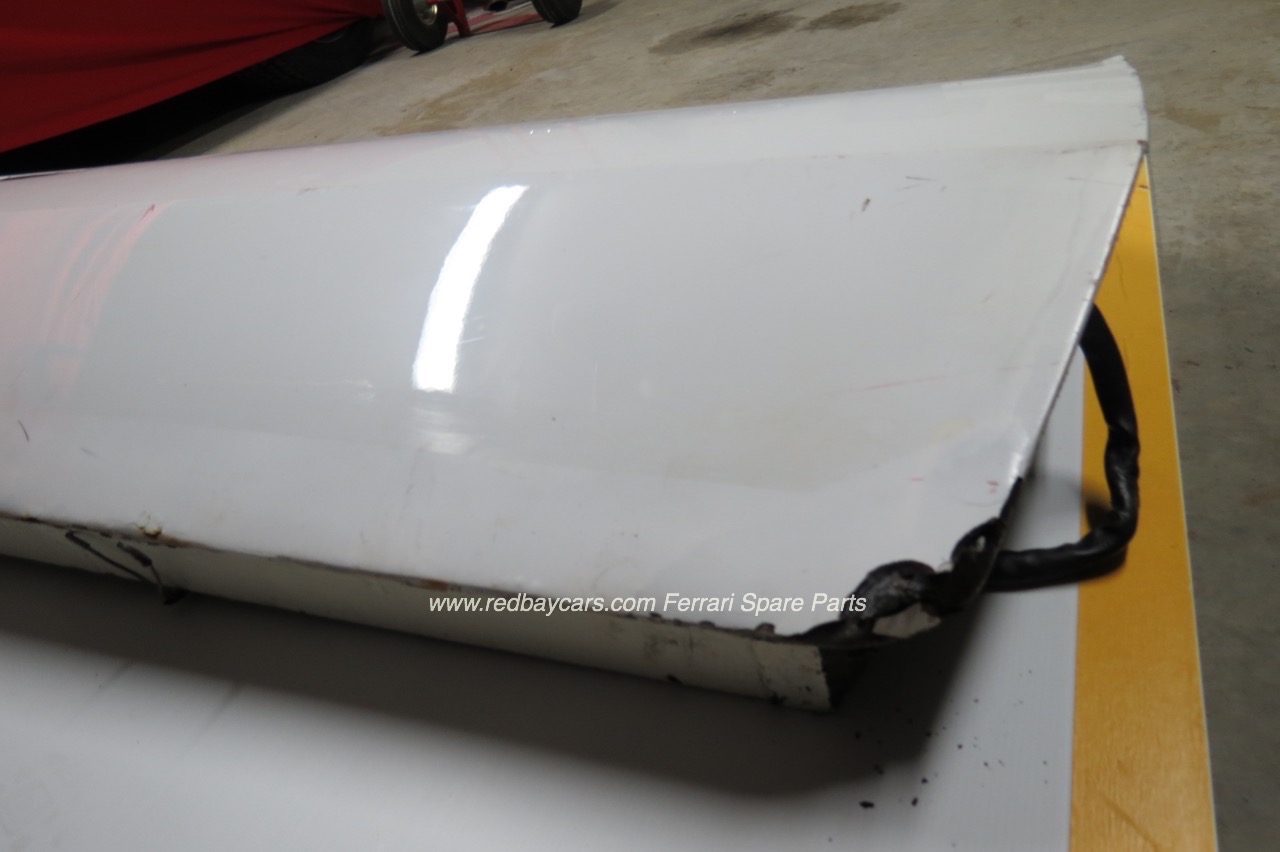

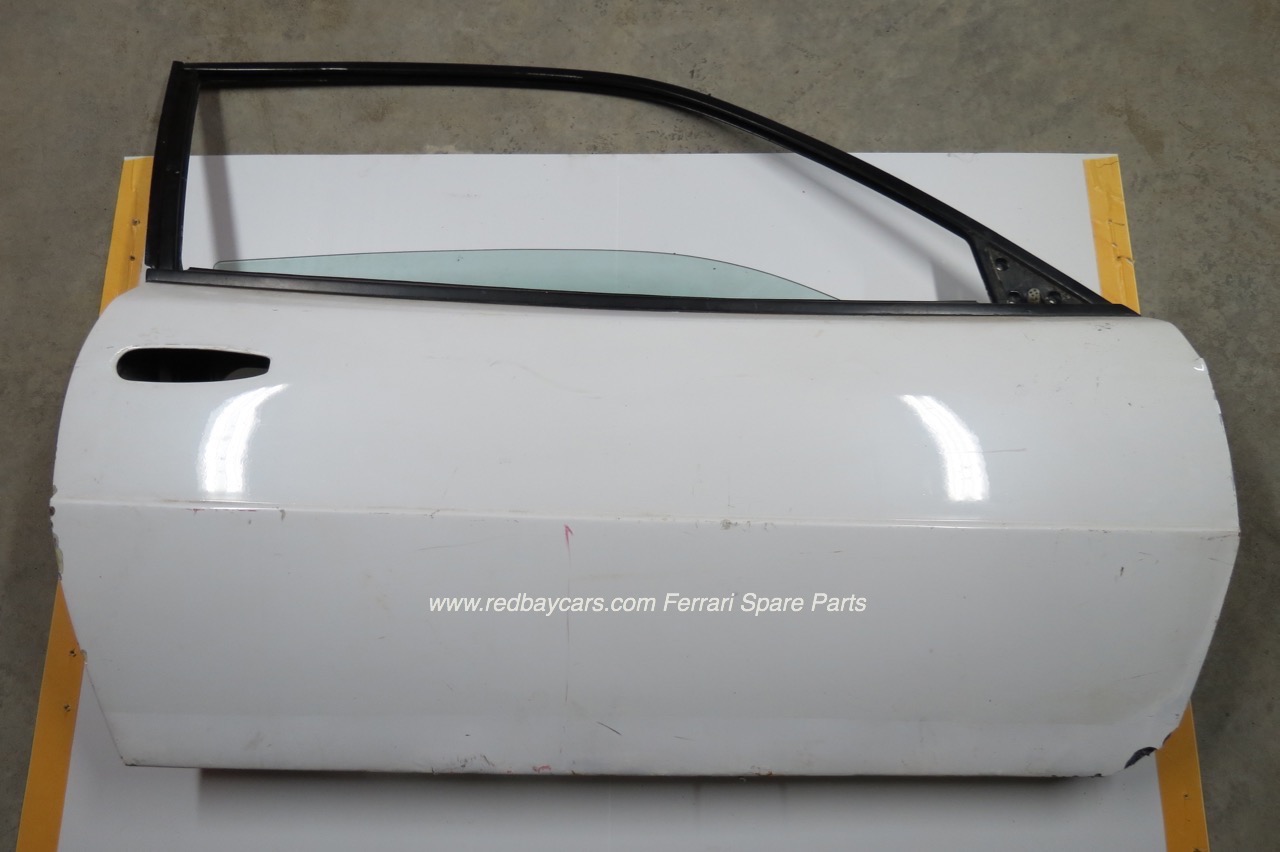

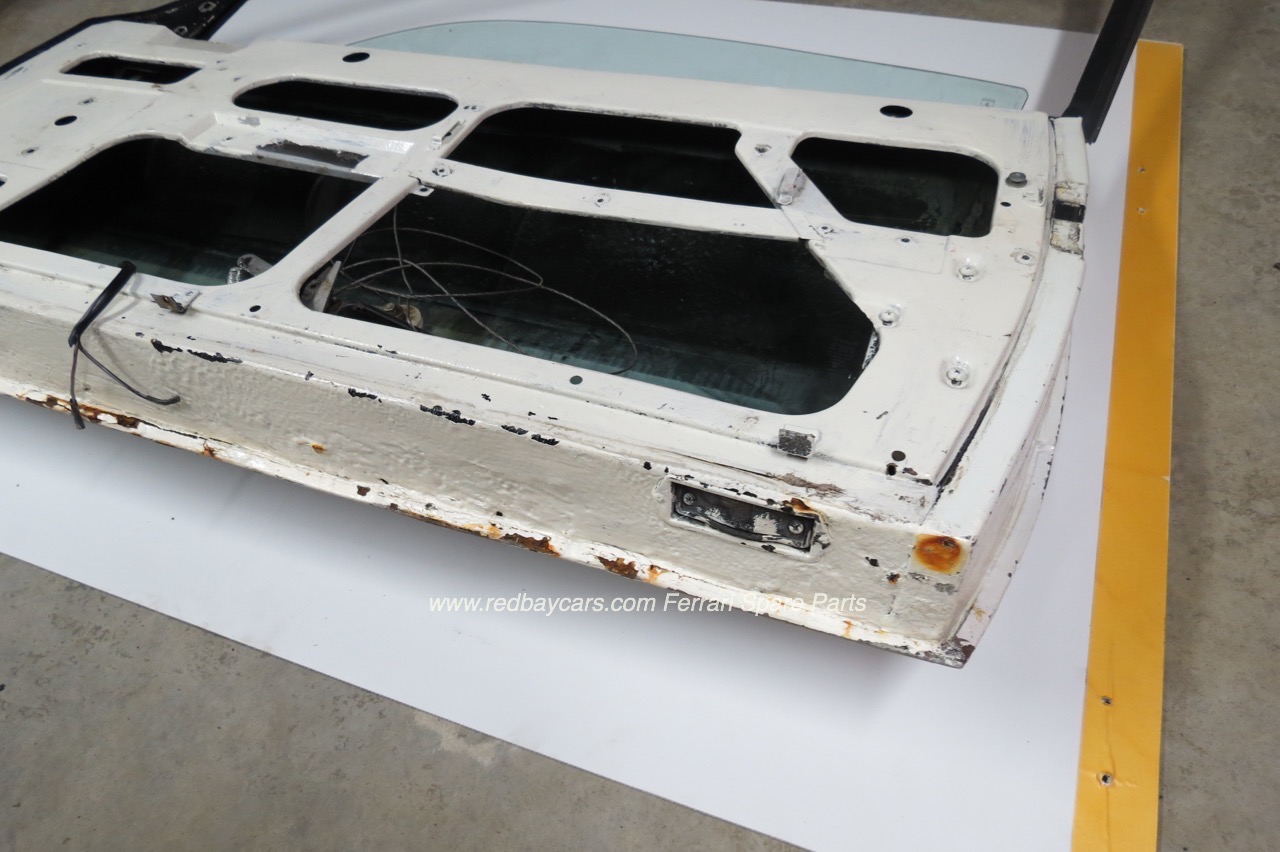

	Part nr 61273700 R.H. door with part nr 60552700 glass and part nr 60551900 lower crosspiece right Right hand door with window and lower crosspiece assembly to lift the window. Door is rusty at the bottom and needs repair and repaint. Included: the black moldings around the window. Also fits a Mondial QV Several available - contact us Detailed pictures here , here, here, here, here and here		Part nr 61206000 L.H. and 61205900 R.H. Mounting for top with door stop In great condition. Available in the webshop Detailed picture here

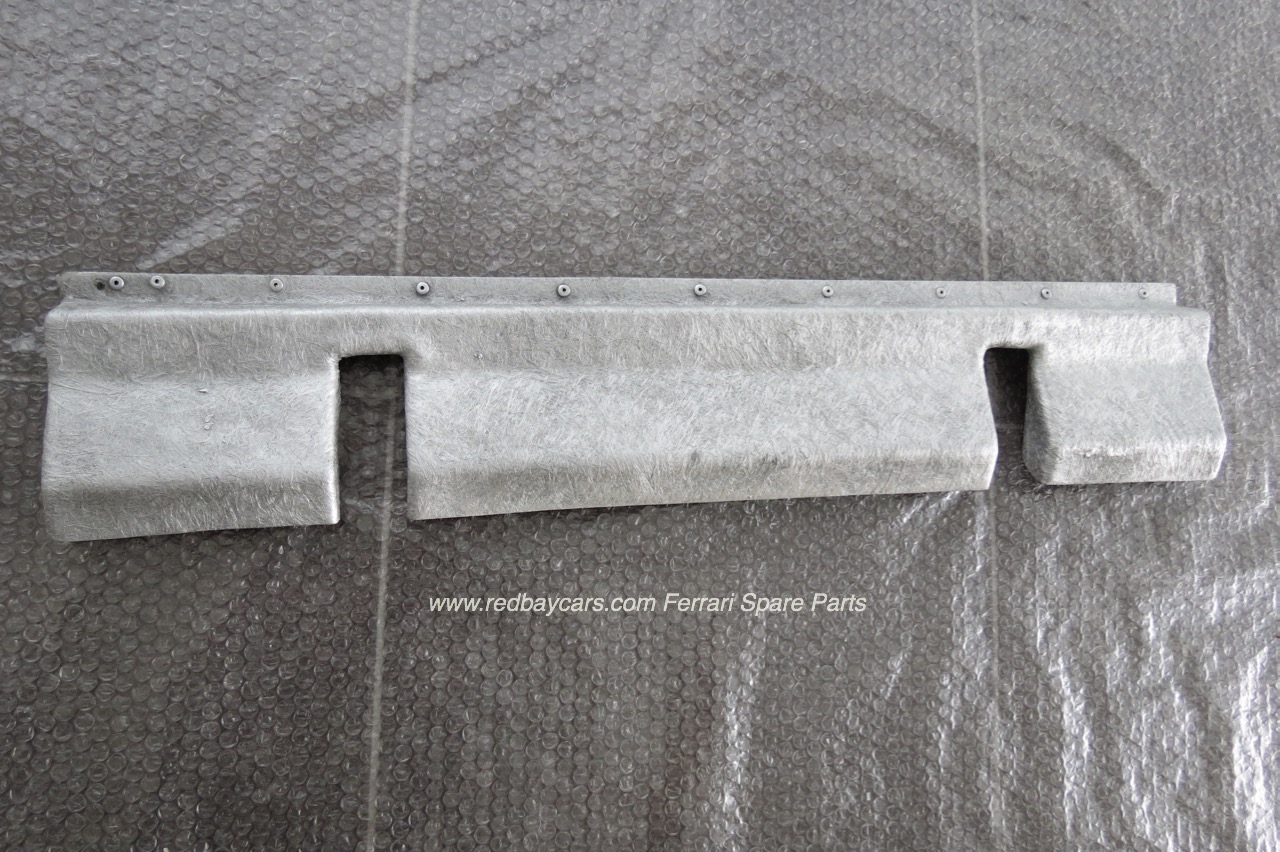

	Engine front top covering This is the piece of insulation material that is attached to the chassis facing the top cylinder bank. Also fits the Mondial QV, T and 3.2 Available in the webshop Detailed picture here		Part nr 60637500 R.H. glass and 60637600 L.H. glass blue colored This is a pair of windows next to the rear seats. Glasses are in very good condition with the correct Ferrari labels on them. Fit the Mondial 8, QV, 3.2 and T LH: Check availability in the webshop RH: Check availability in the webshop Detailed pictures here, here and here

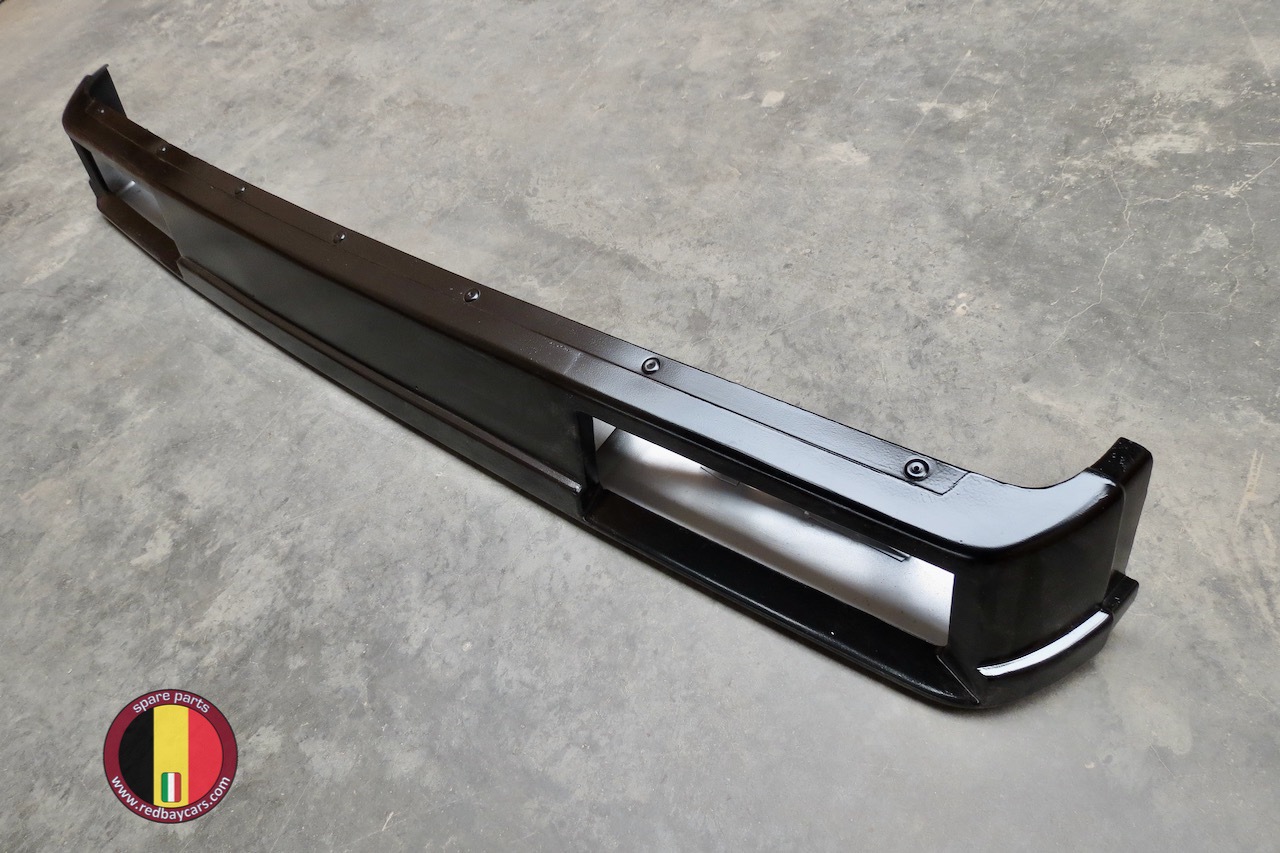

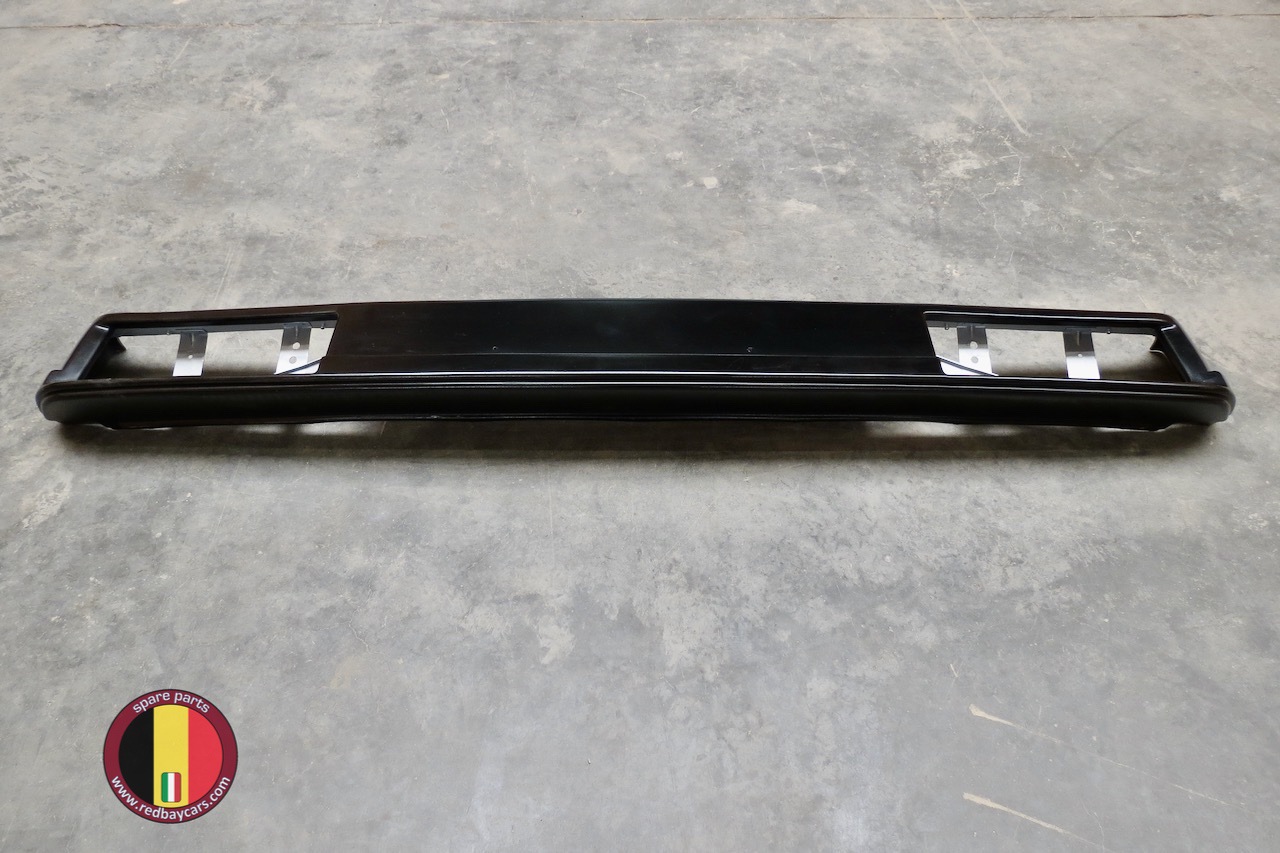

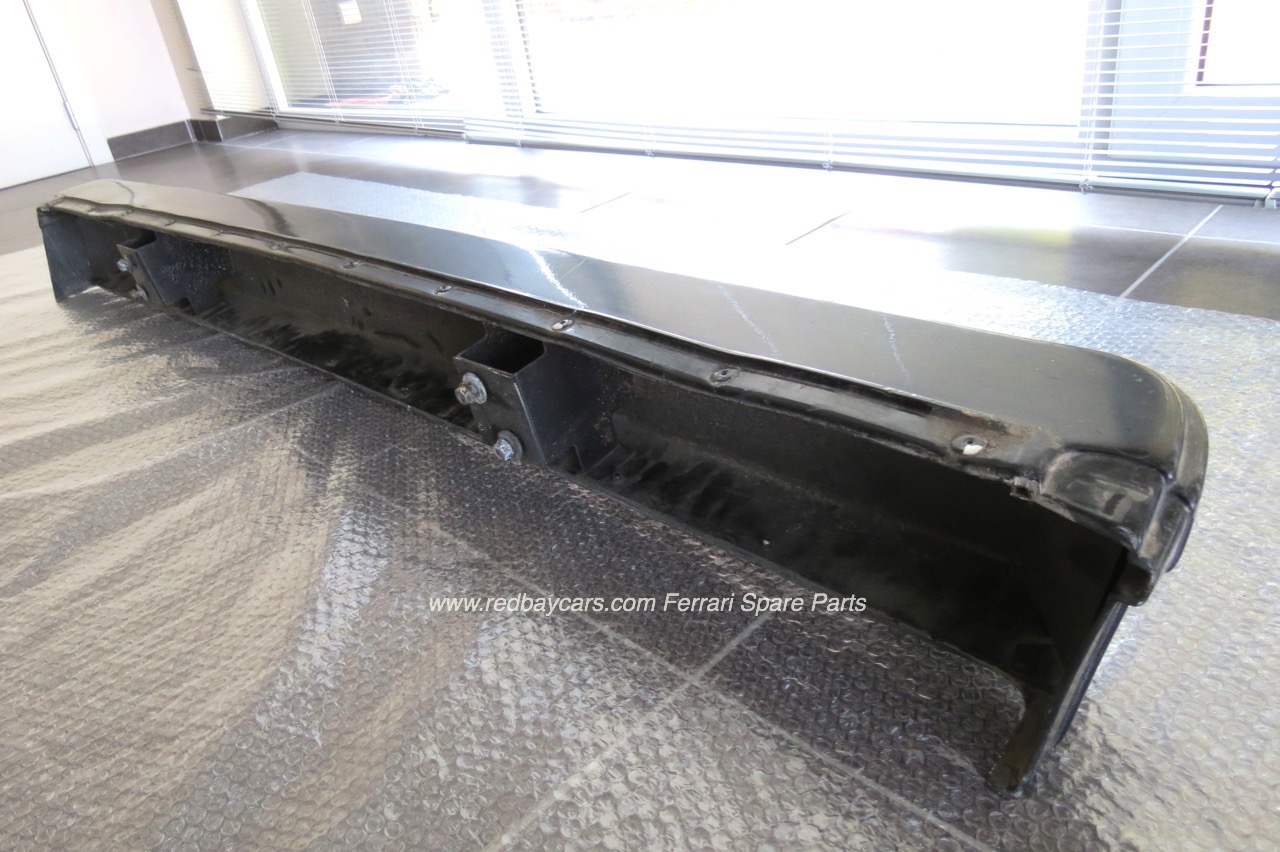

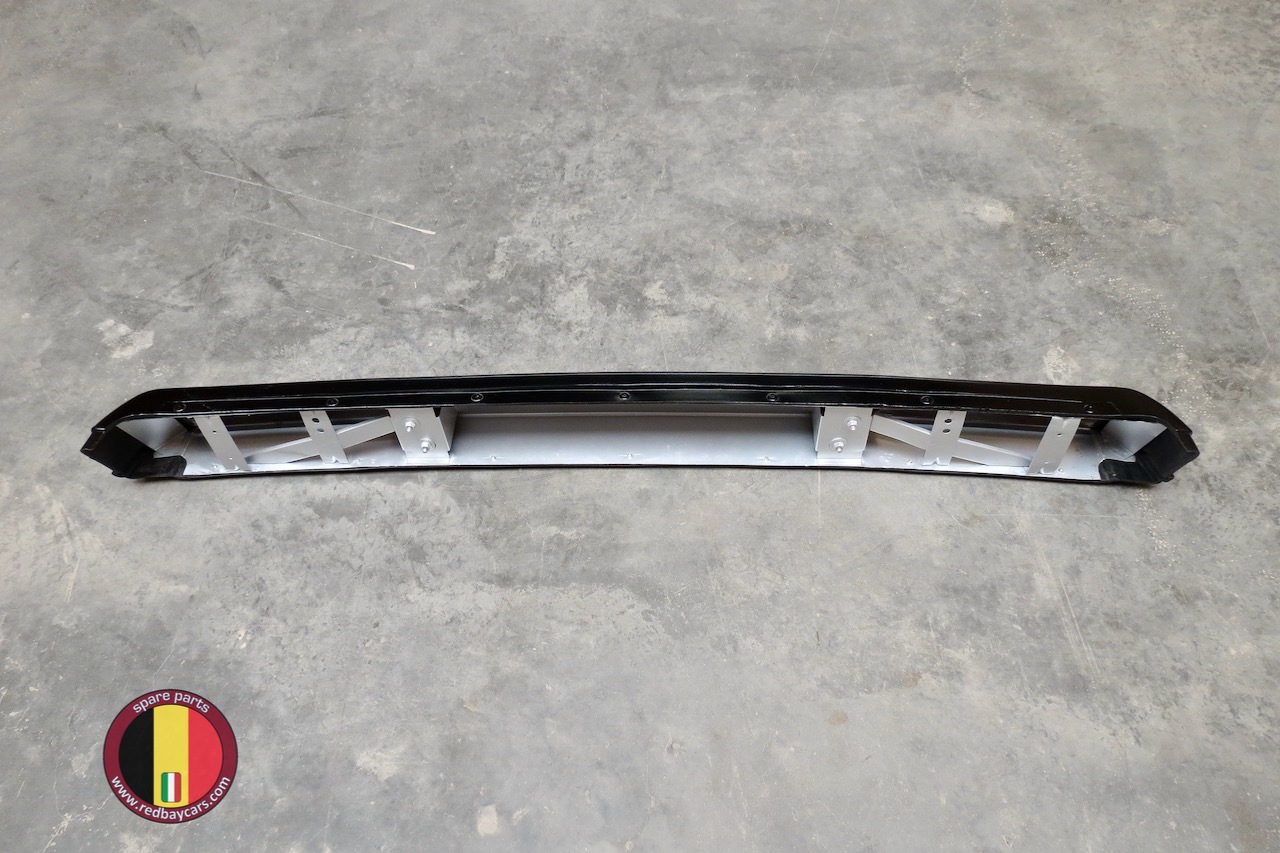

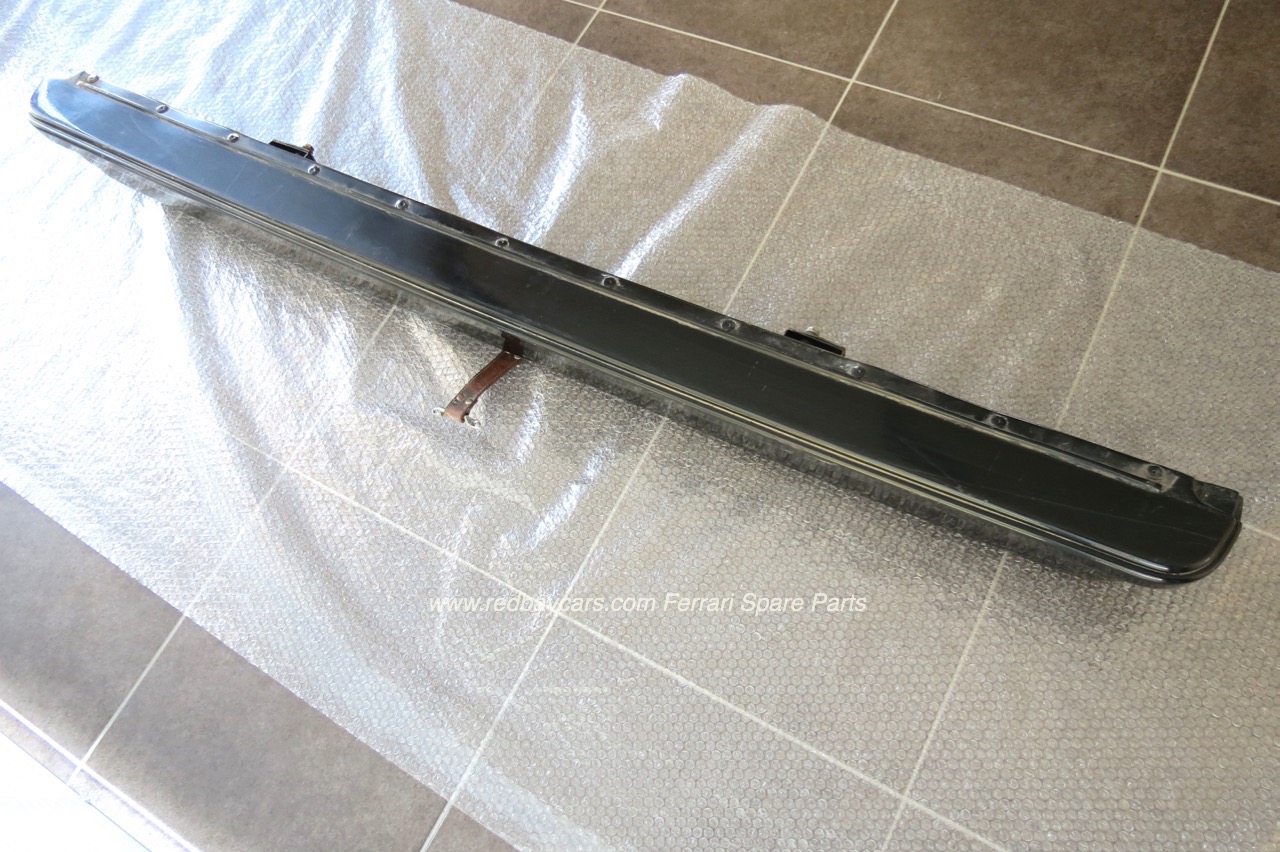

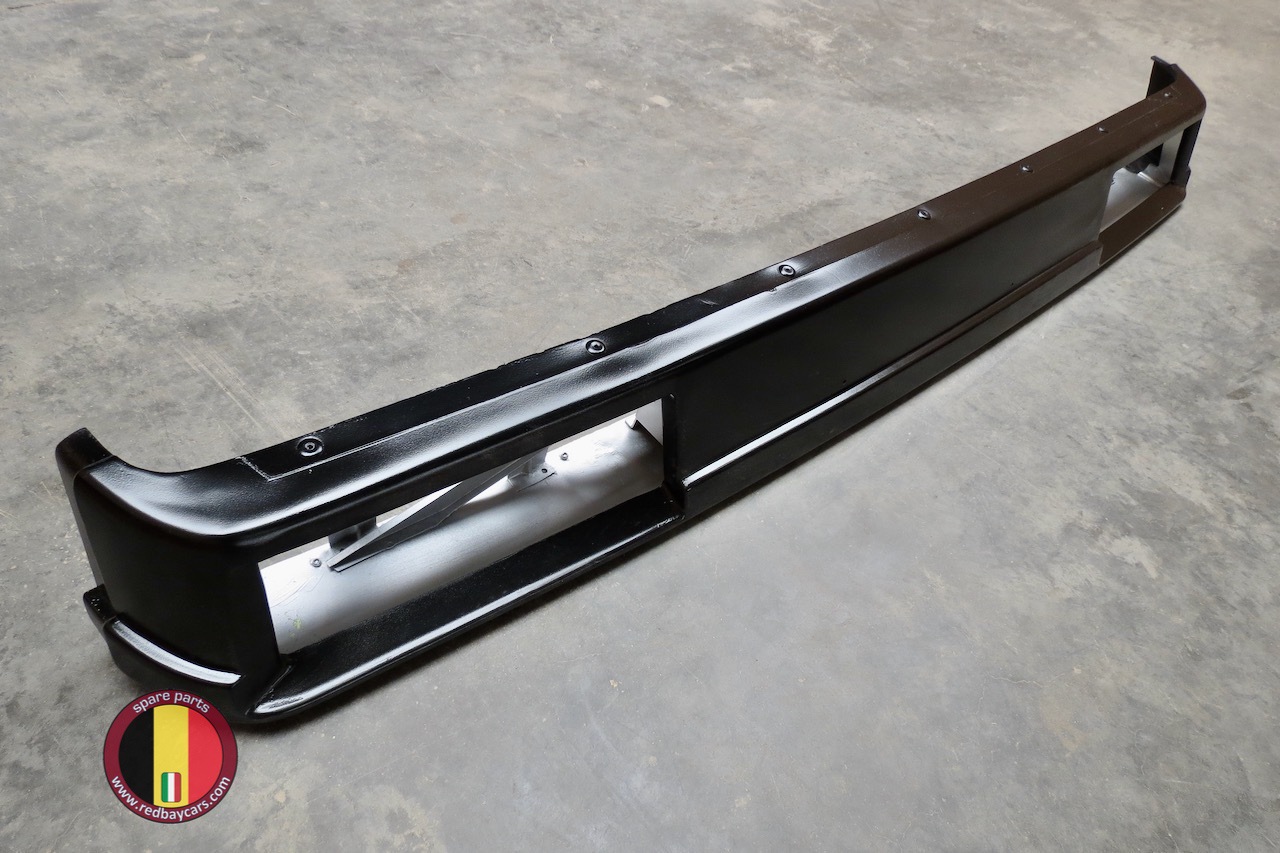

	Front Bumper M8/QV Part nr 60571000 This bumper has been sanded and totally repainted + the metalwork at the back has been coated with zinc against oxydation. In really wonderful shape, ready to be installed! Better than new. Check availability in the webshop Detailed pictures here, here, here and here		Part nr 60573600 Rear bumper Euro spec The rear bumper is in close to perfect condition. Some minor scuffs, but can be removed. This one also fits the Mondial QV Check availability in the webshop Detailed pictures here, here, here and here
	Engine Support Silentbloc 308/328/M Part nr 106418 Check for options and availability in the webshop Detailed pictures here and here		Part nr 61899800 Trunk bonnet in primer paint This trunk lid is protected by a primer paint coating, the lid is in excellent condition, ready to be painted in the correct color. The bottom side is in black. Contains wires for lights. The catch is not included, but we have some in stock. This lid fits all Mondial types. Check availability in the webshop Detailed picture here, here, here, here, here and here

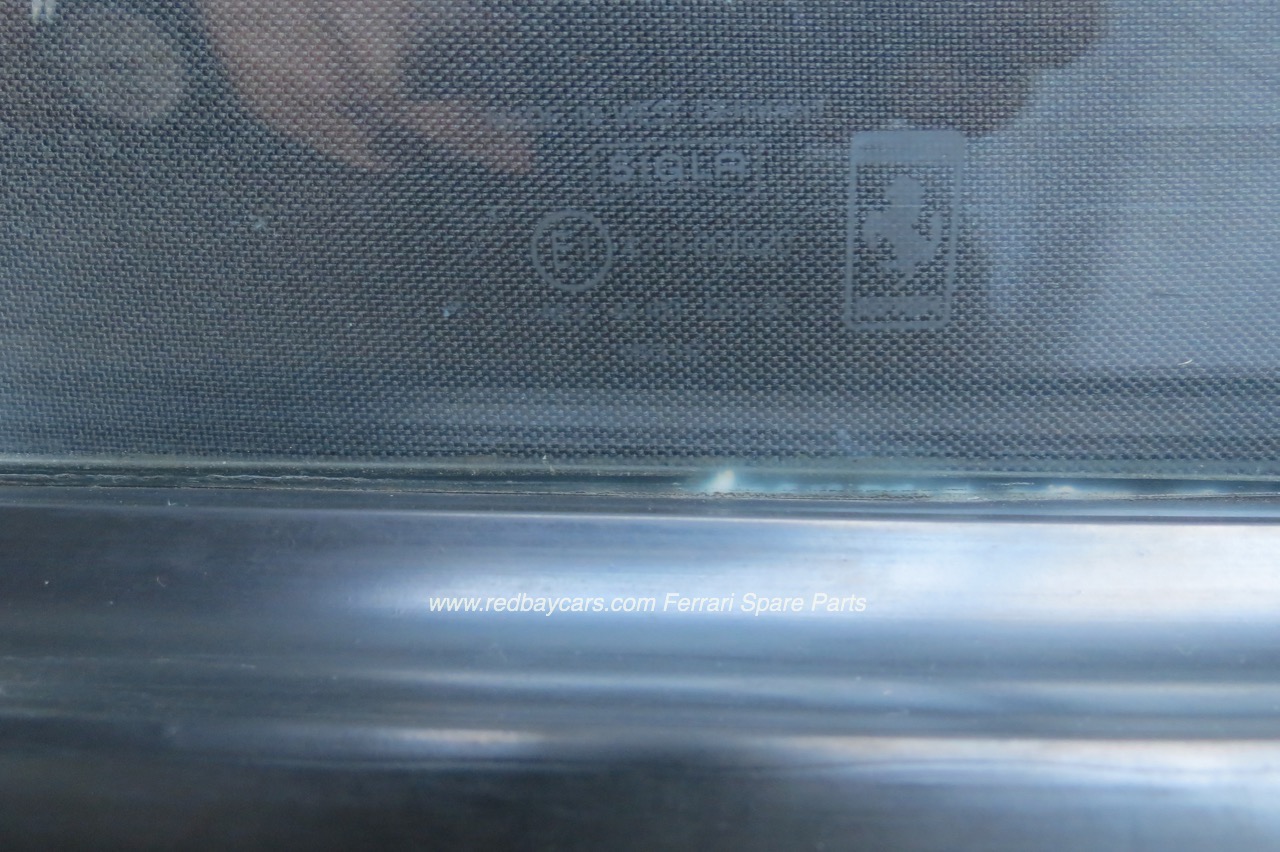

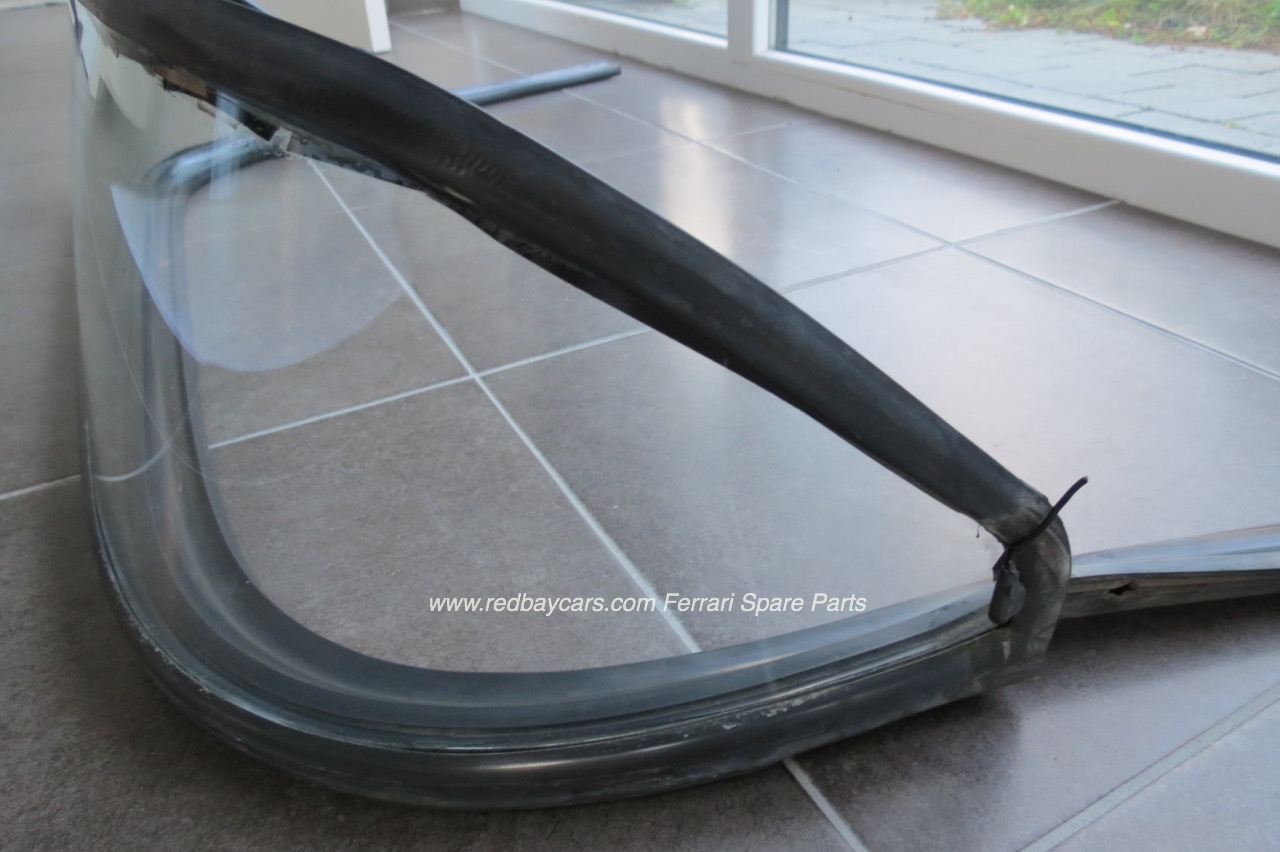

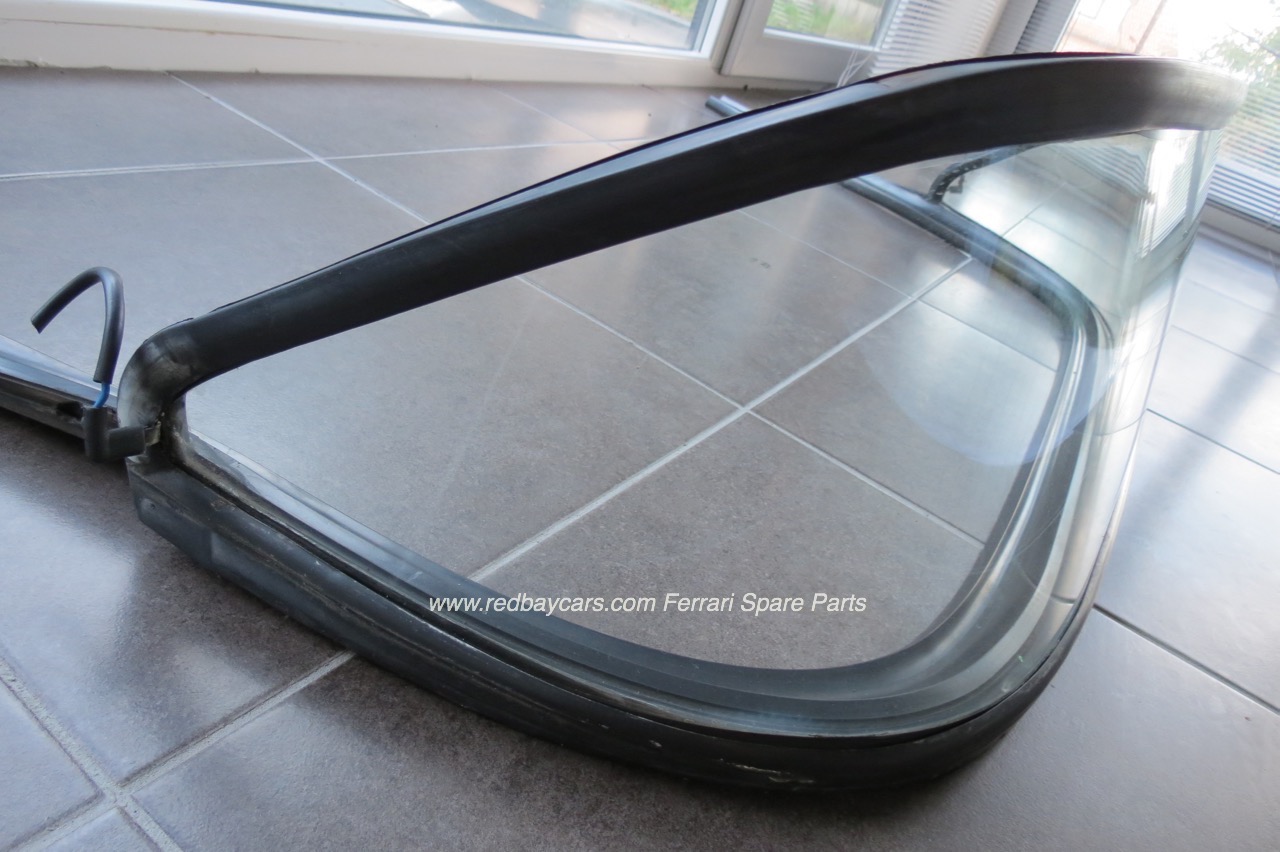

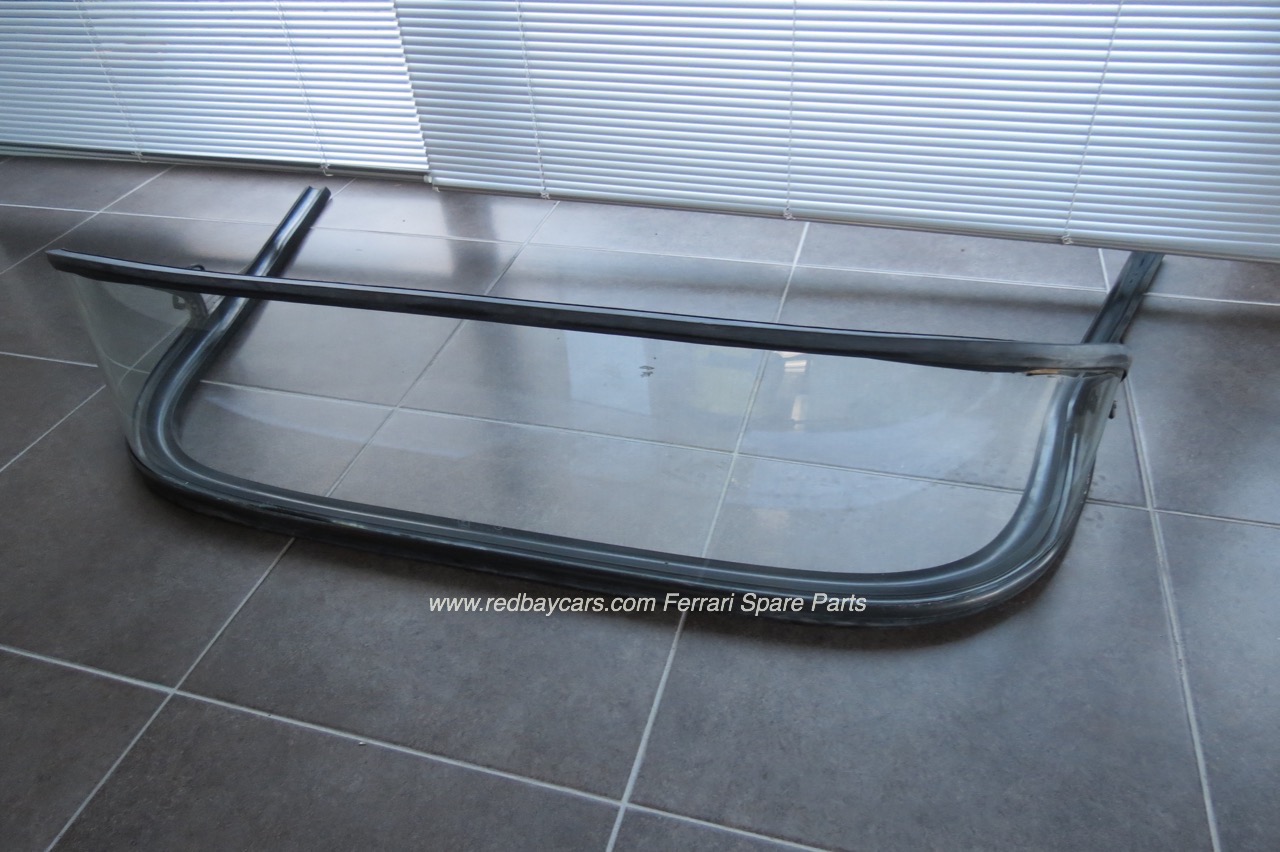

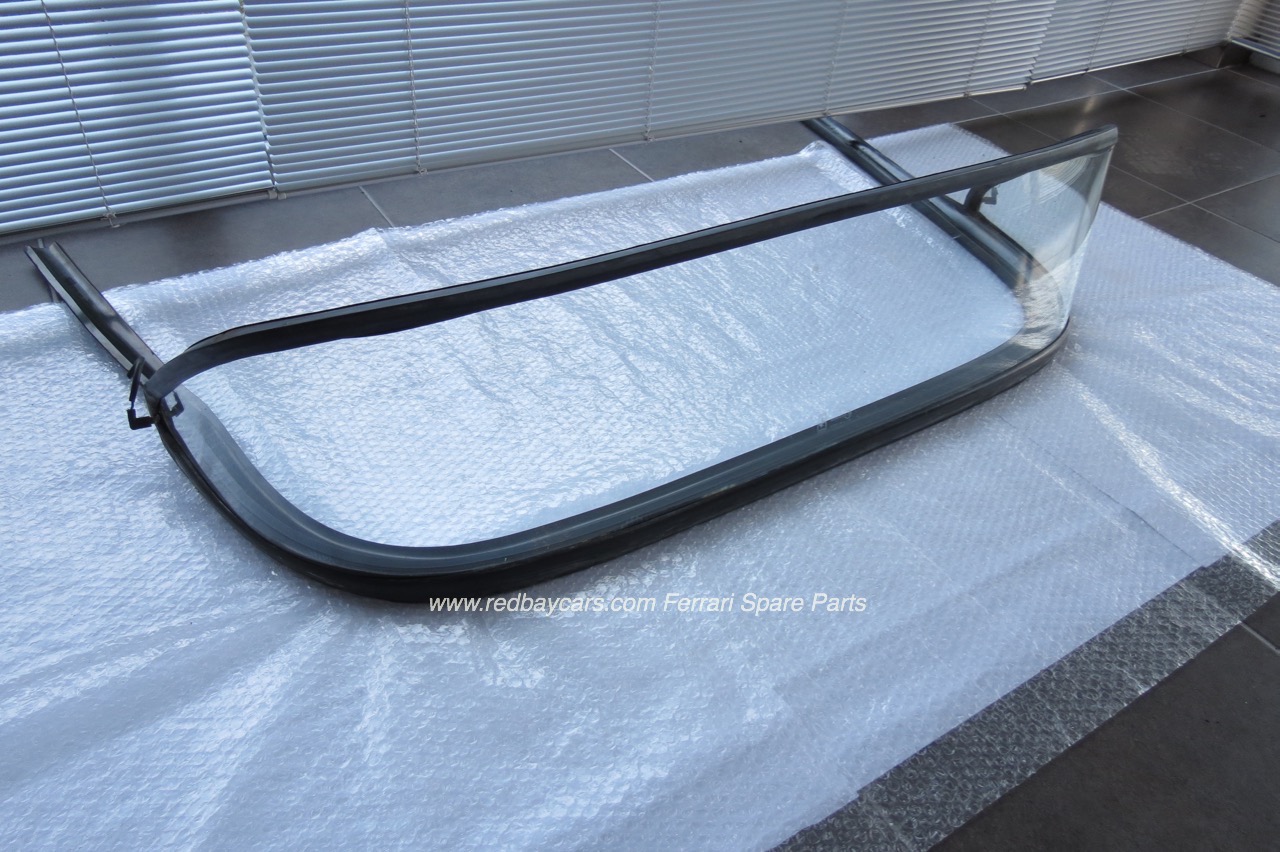

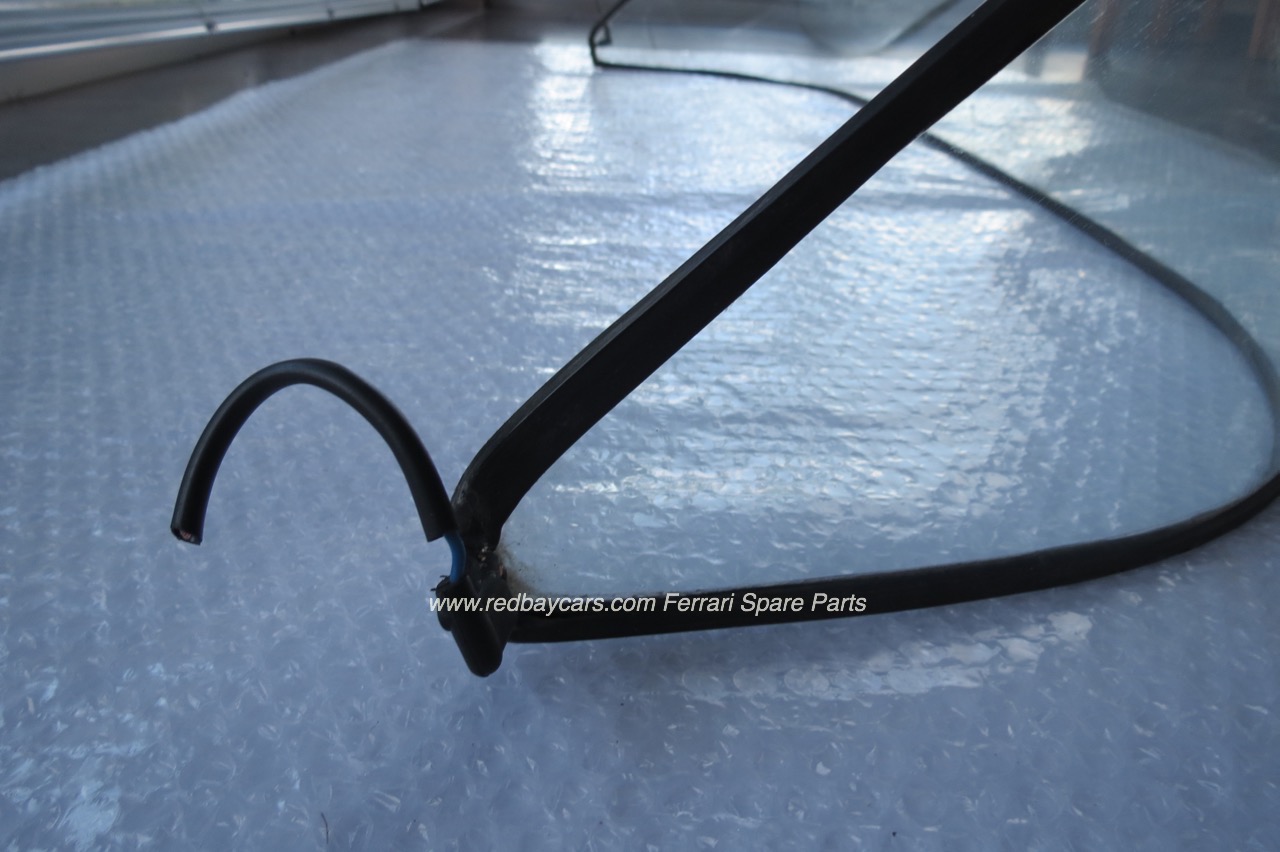

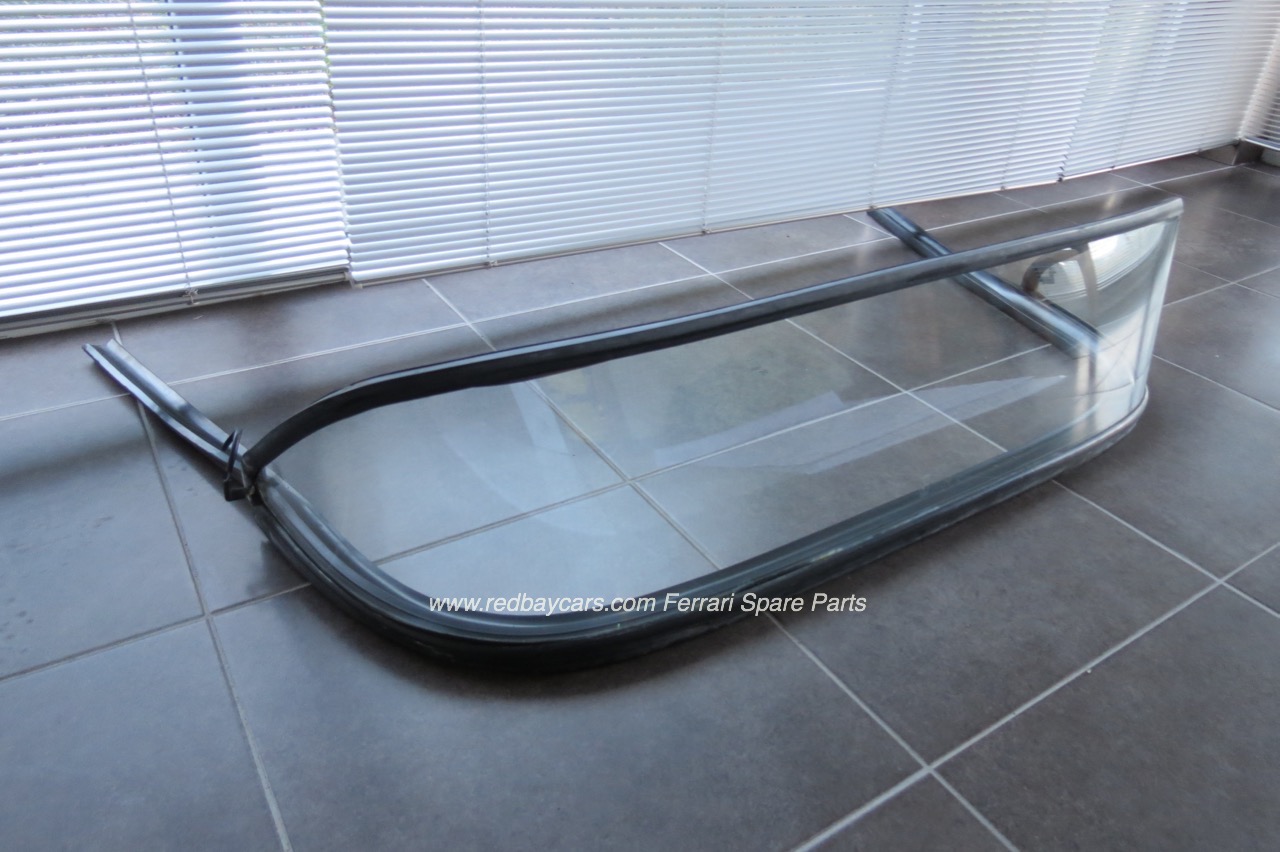

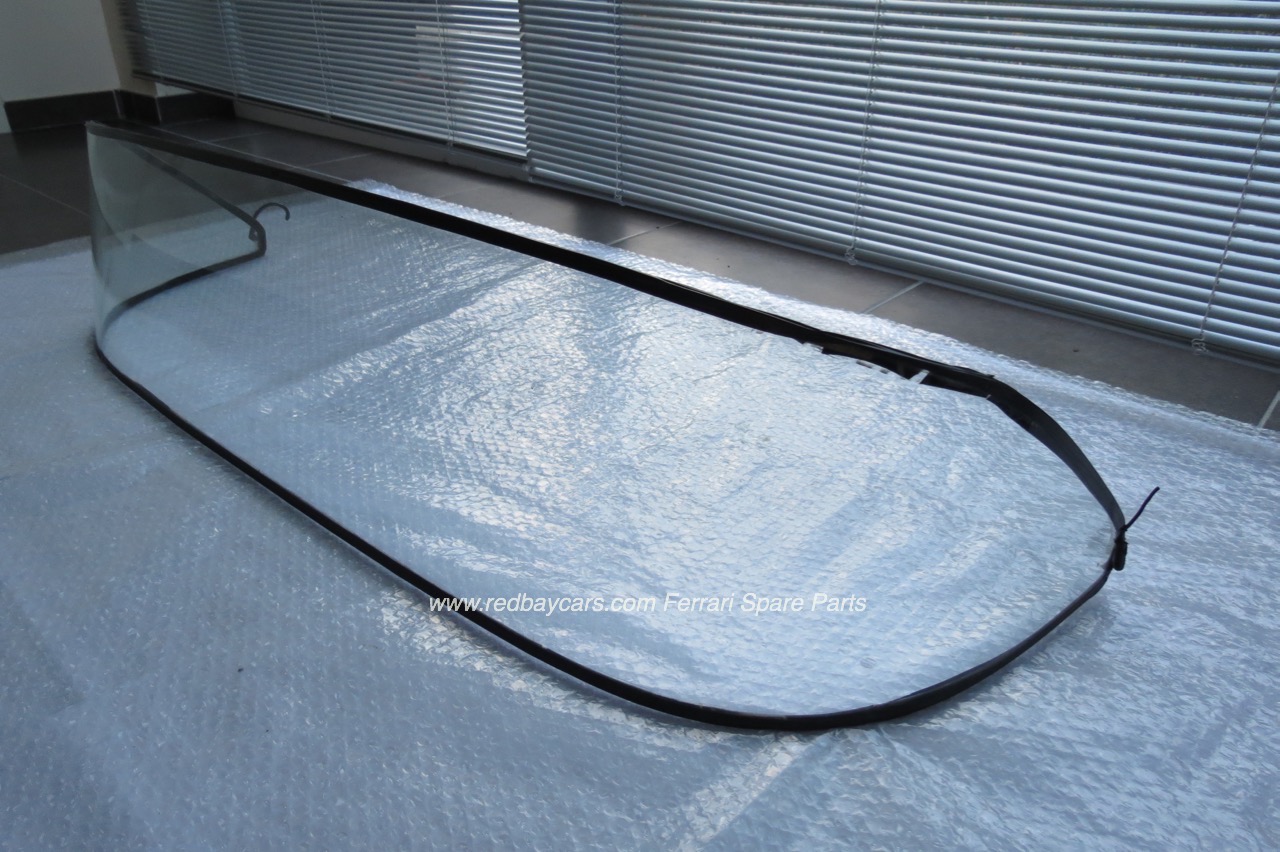

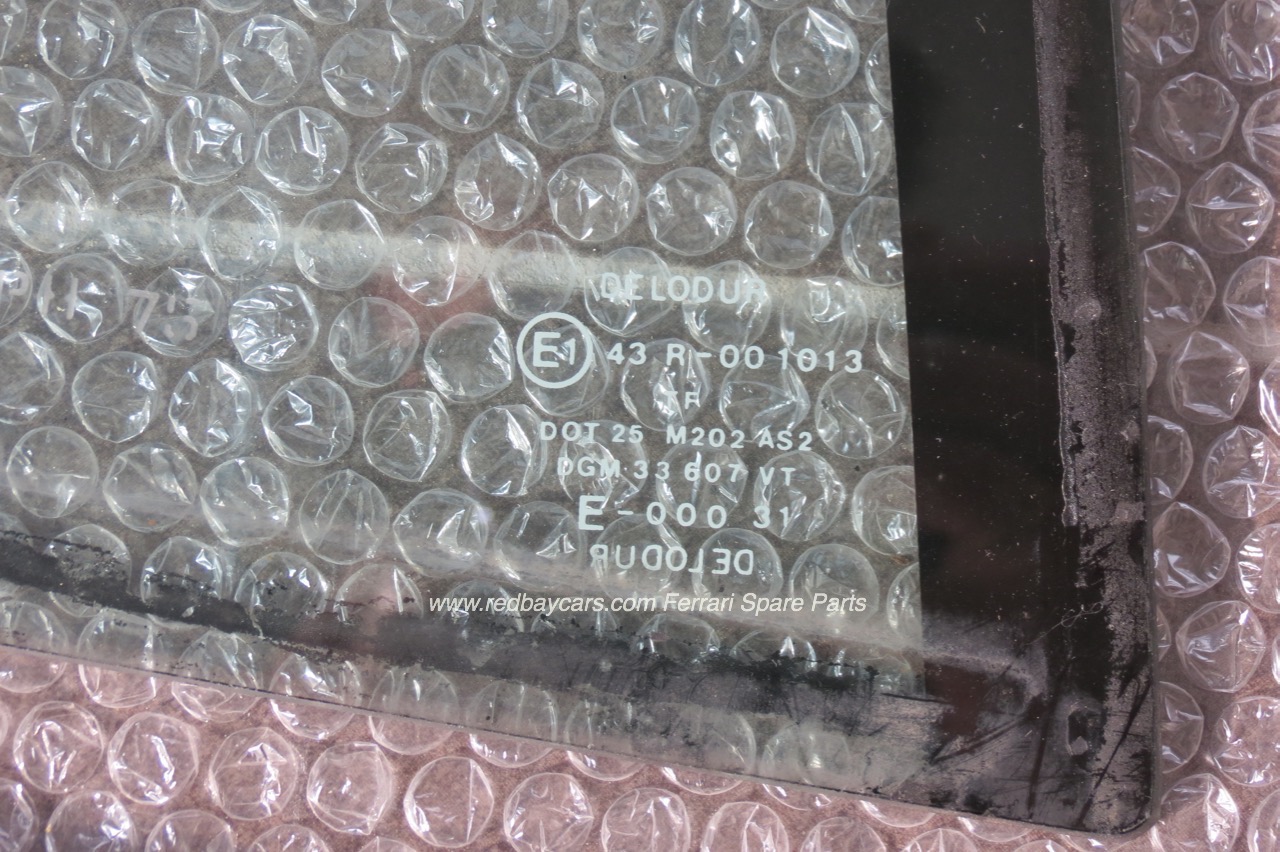

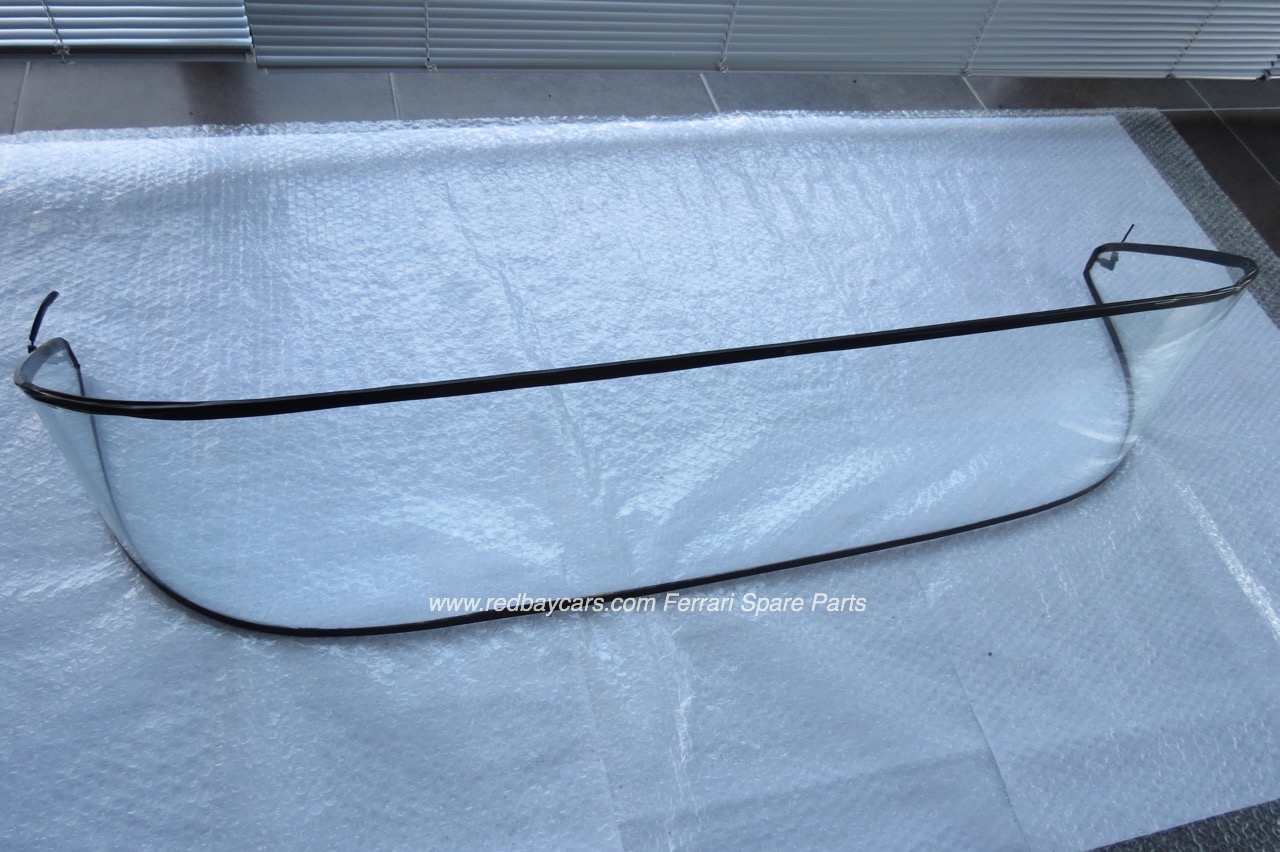

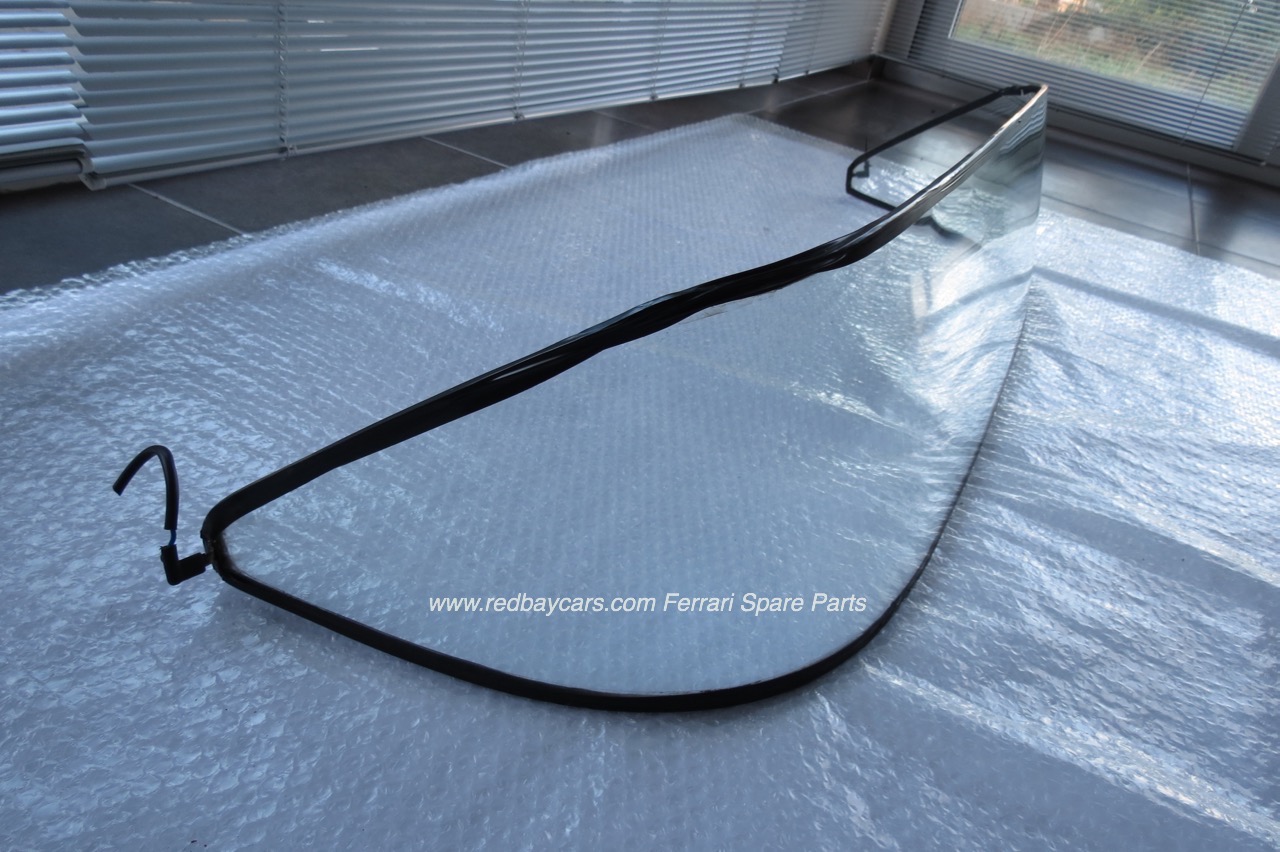

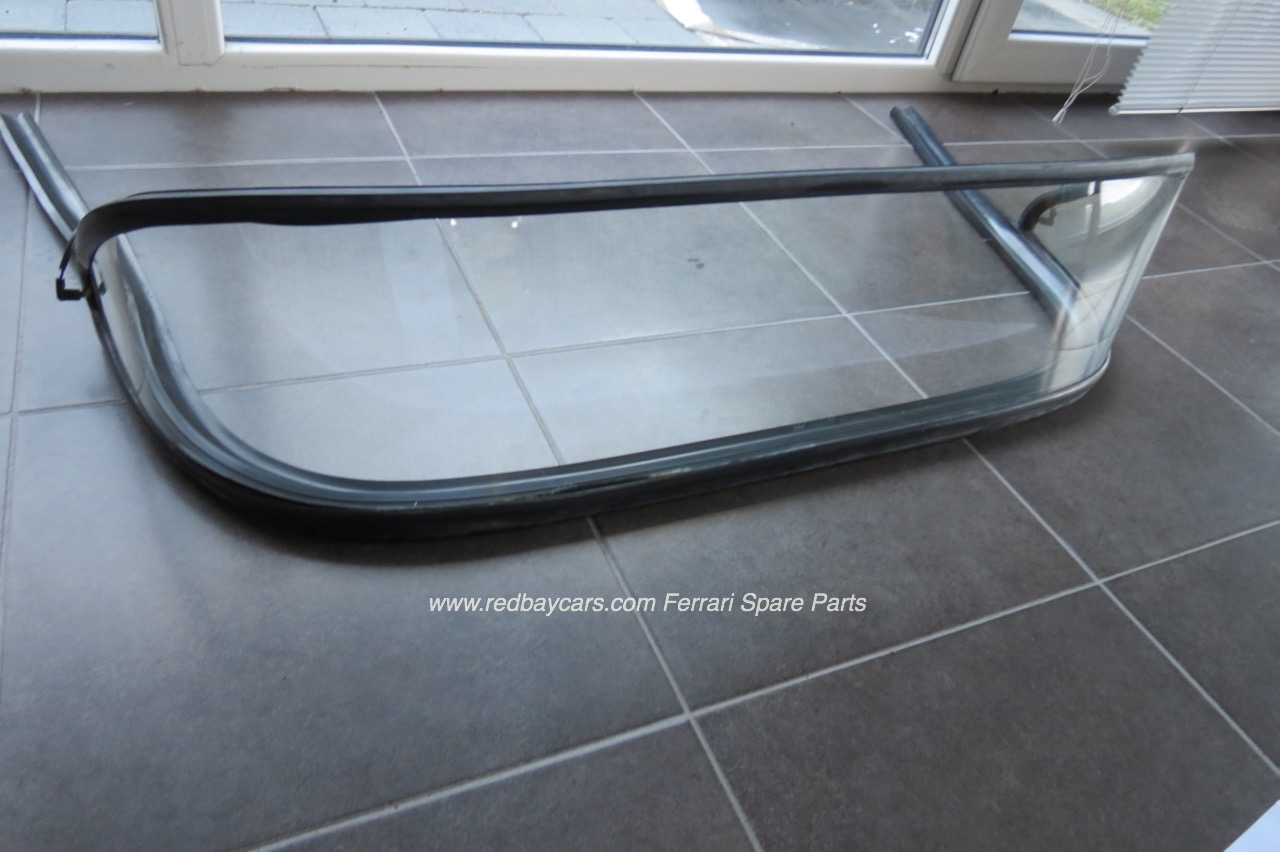

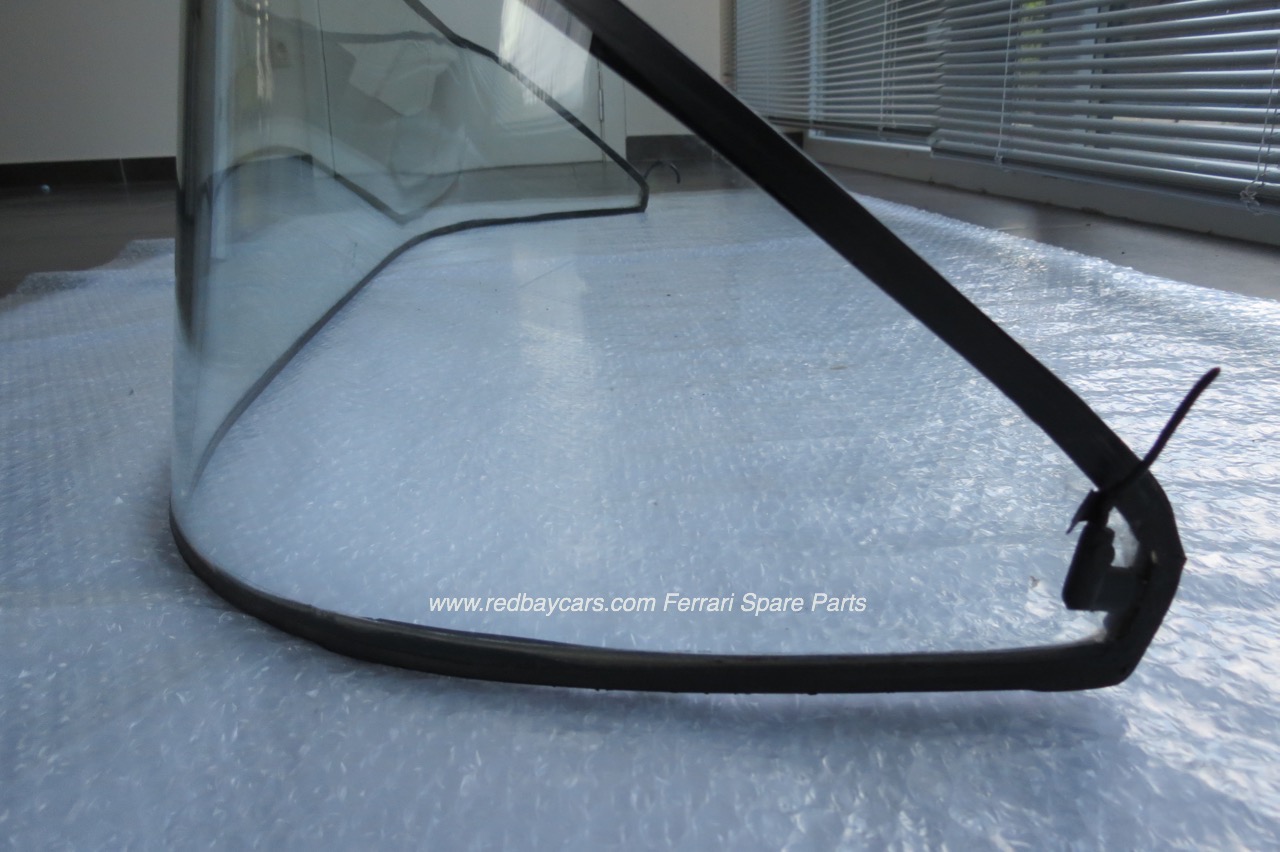

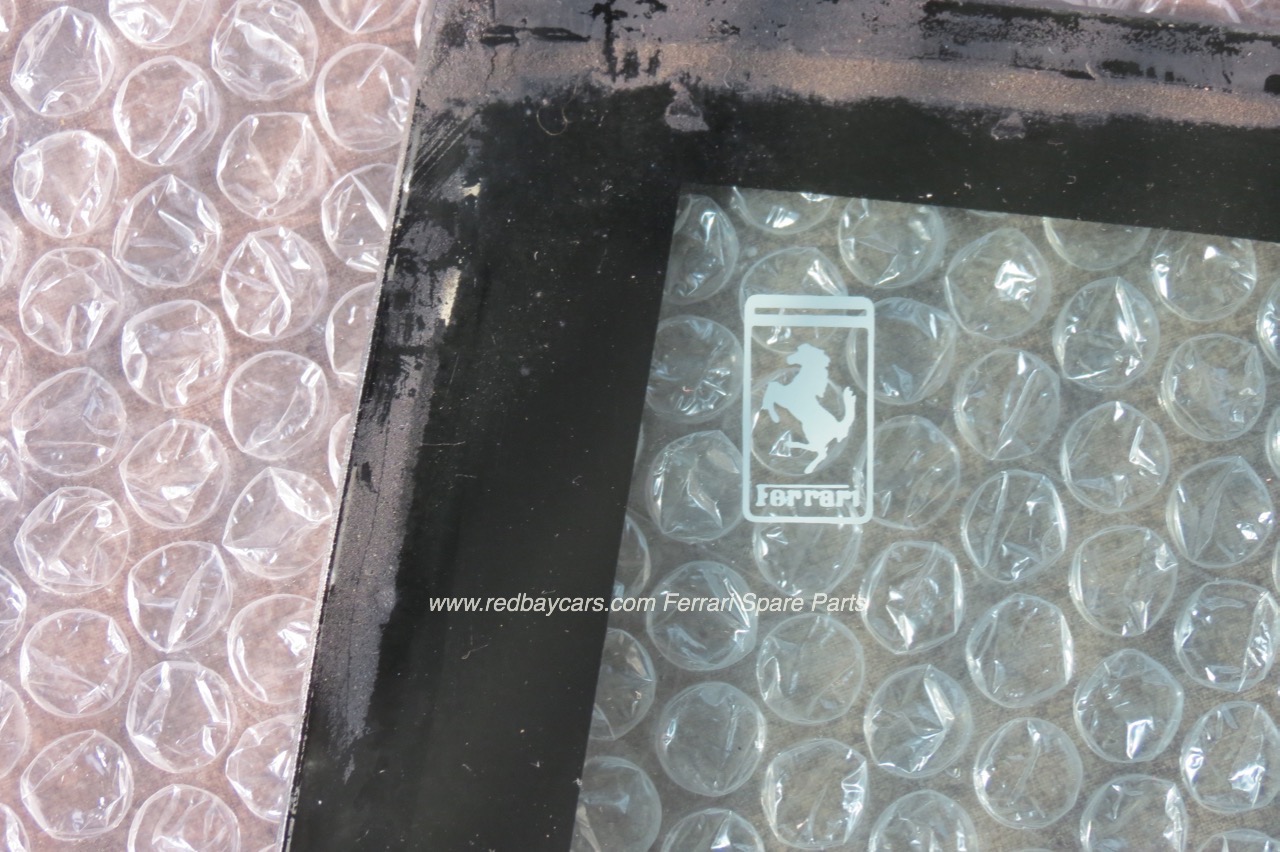

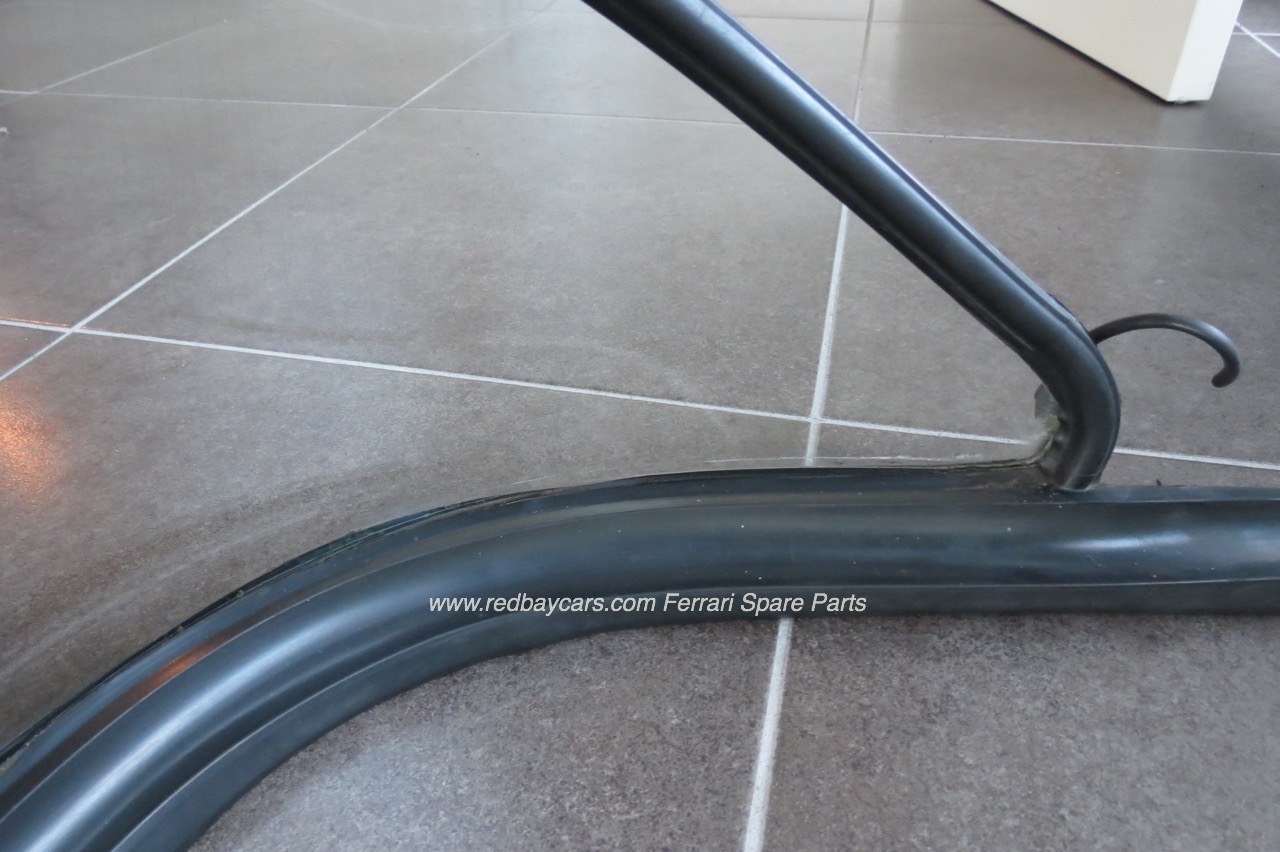

	Part nr 60695000 Thermic rear window Fits the entire Mondial range. It is in extremely good condition, a very rare find ! It has been protected against delamination from the beginning and only shows very very minimal signs of age. Second hand glass available in the webshop Remanufactured units available on this page Detailed pictures here, here , here , here , here , here , here , here , here , here , here , here , here and here		Part nr 60511900 Front left fender Have a look at the webshop for more details on the fenders we offer at the moment. LH: Check availability in the webshop RH: Check availability in the webshop Detailed pictures here and here

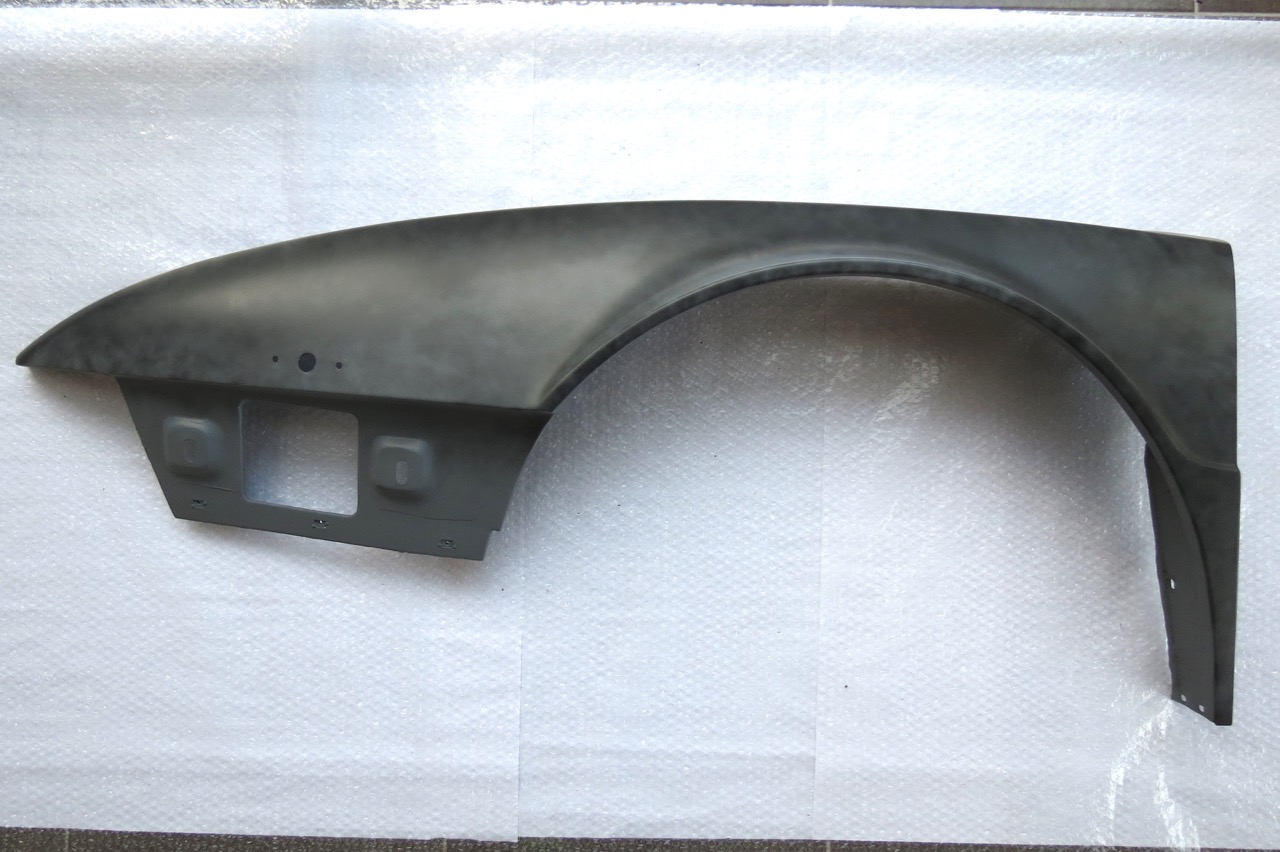

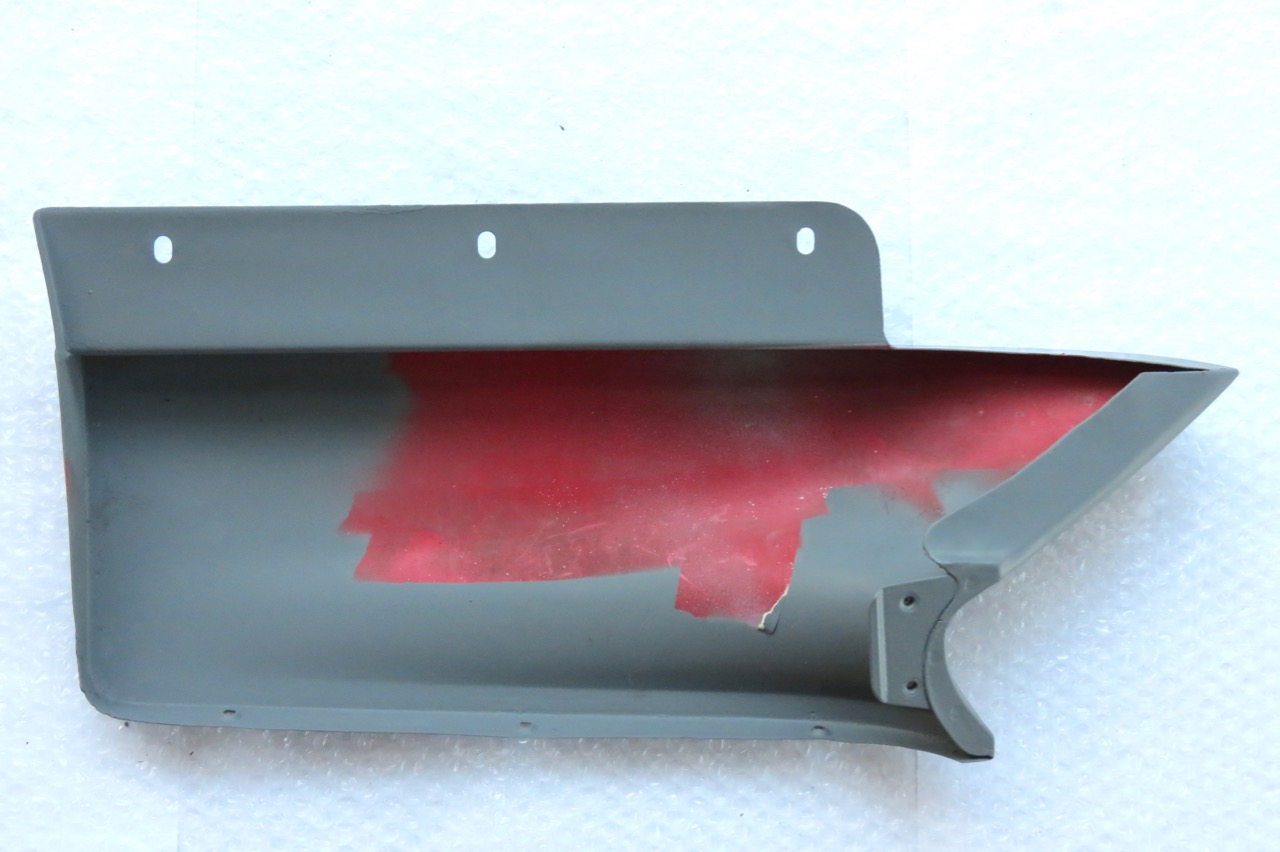

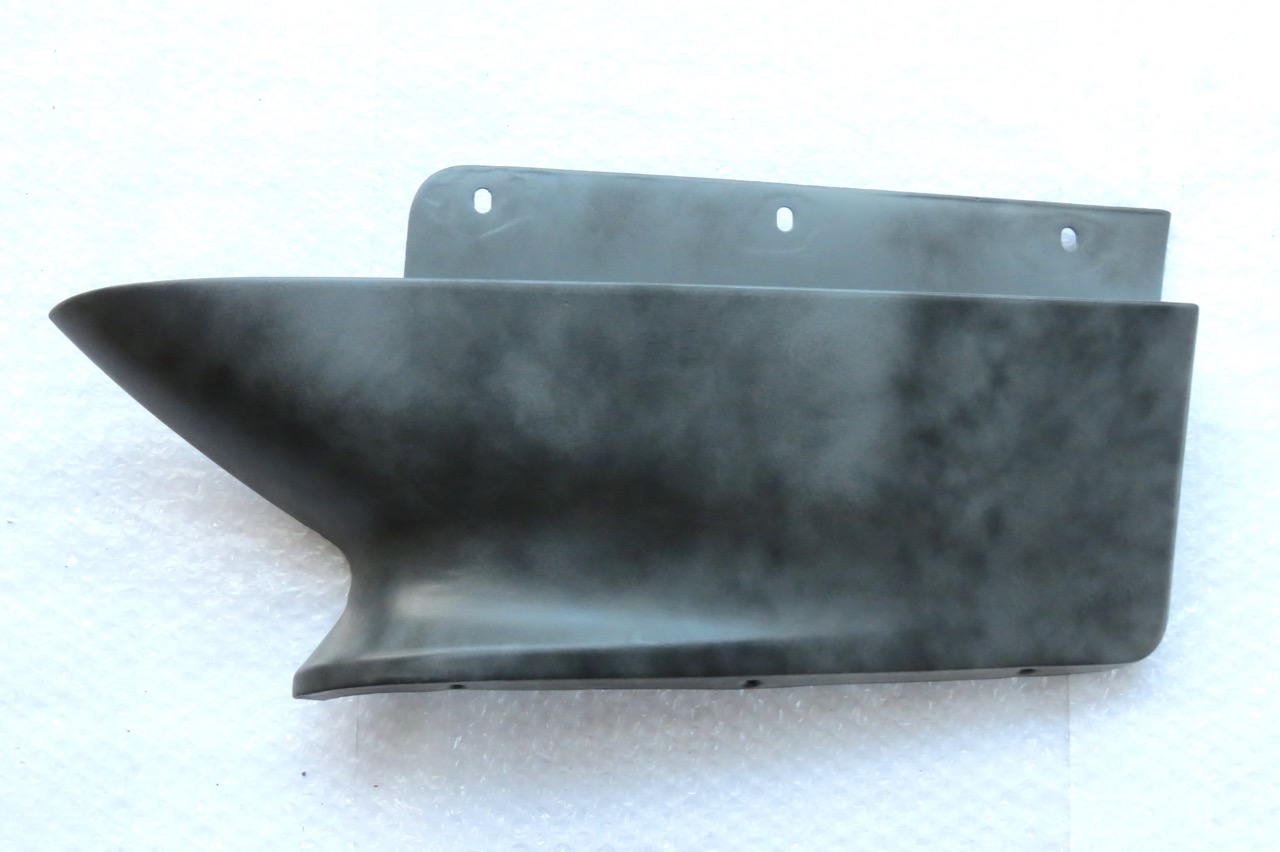

	Part nr 60601000 Front left covering The cover has been repaired: sandblasted and rust was removed. After that, it has been repainted in primer paint. Item is in new condition.This part also fits the Mondial QV, it is an authentic one and extremely difficult to find !!! LH: Check availability in the webshop RH: Check availability in the webshop Detailed pictures here and here		Part nr 60578200 R.H., nr 60578300 L.H. and center rubbers. These rubbers are placed behind the rear window on top of the back of the roof and on the left and right side of the engine bay. Rubbers in great condition and several available. Email me for more pictures. These fit the entire Mondial range. Check availability in the webshop Detailed picture here

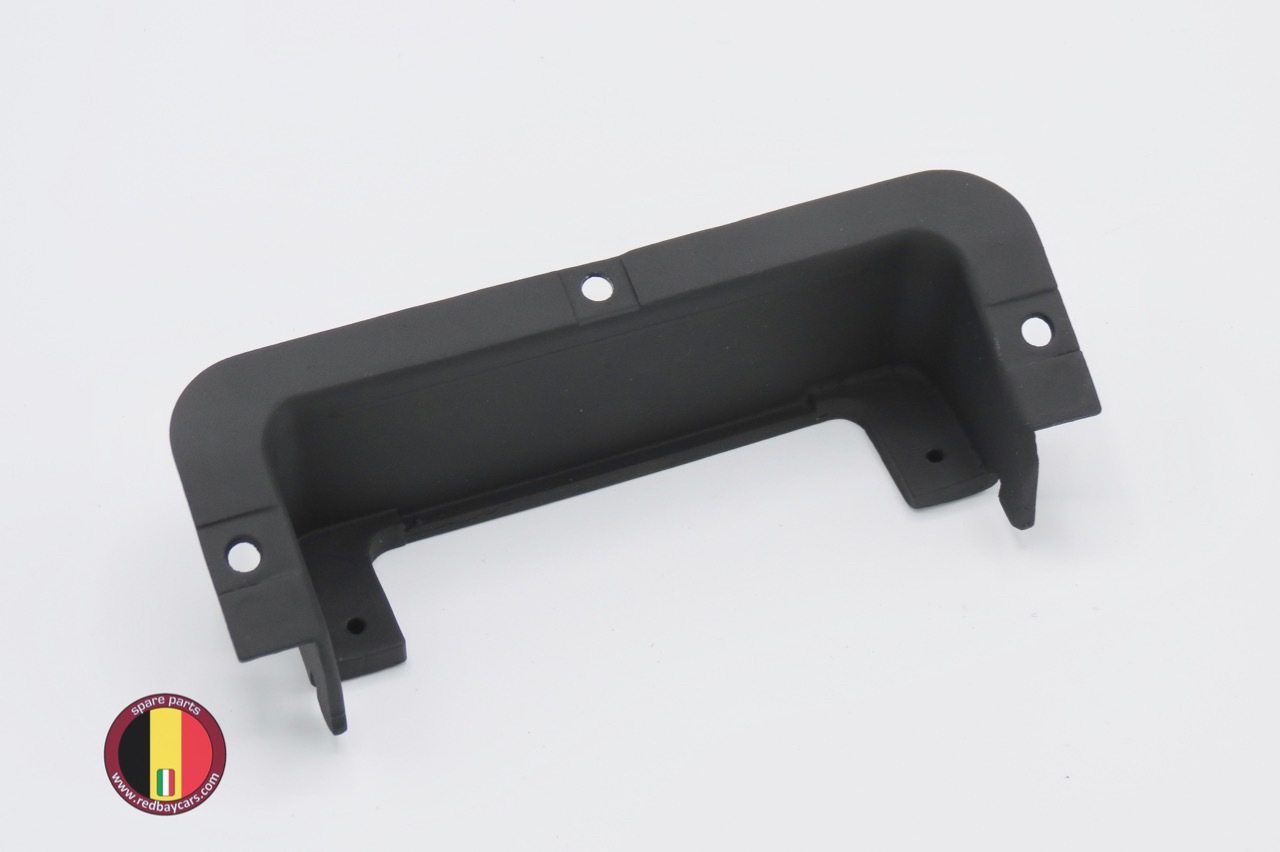

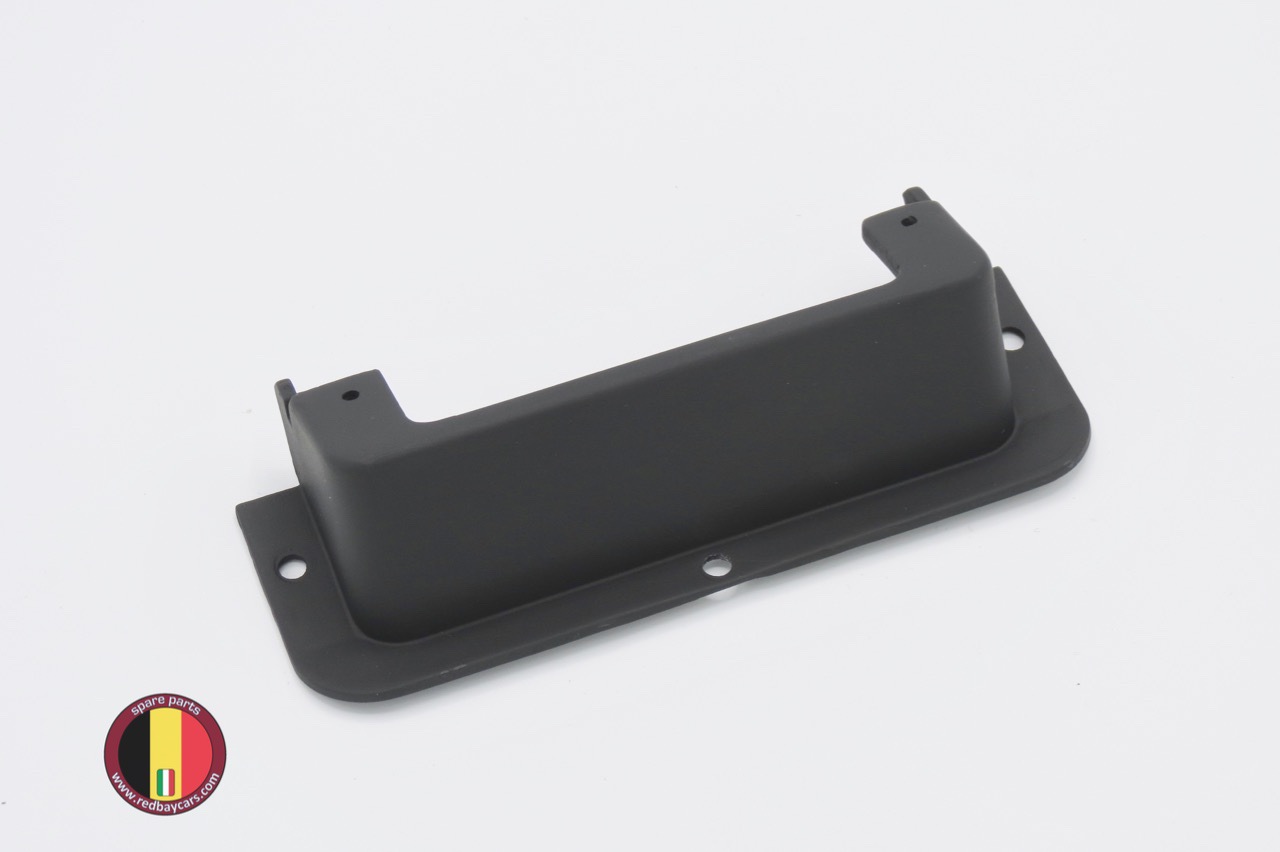

	Support for Plate Light M Part nr 60846500 These have been reproduced with injected plastic moulding and match the originals for 100%. Very hard plastic, much better than the originals! Check availability in the webshop Detailed pictures here and here		Headlamp Frame M Part nr 60527500 LH and 60527400 RH An authentic cover in close to perfect condition. Check availability in the webshop Detailed picture here

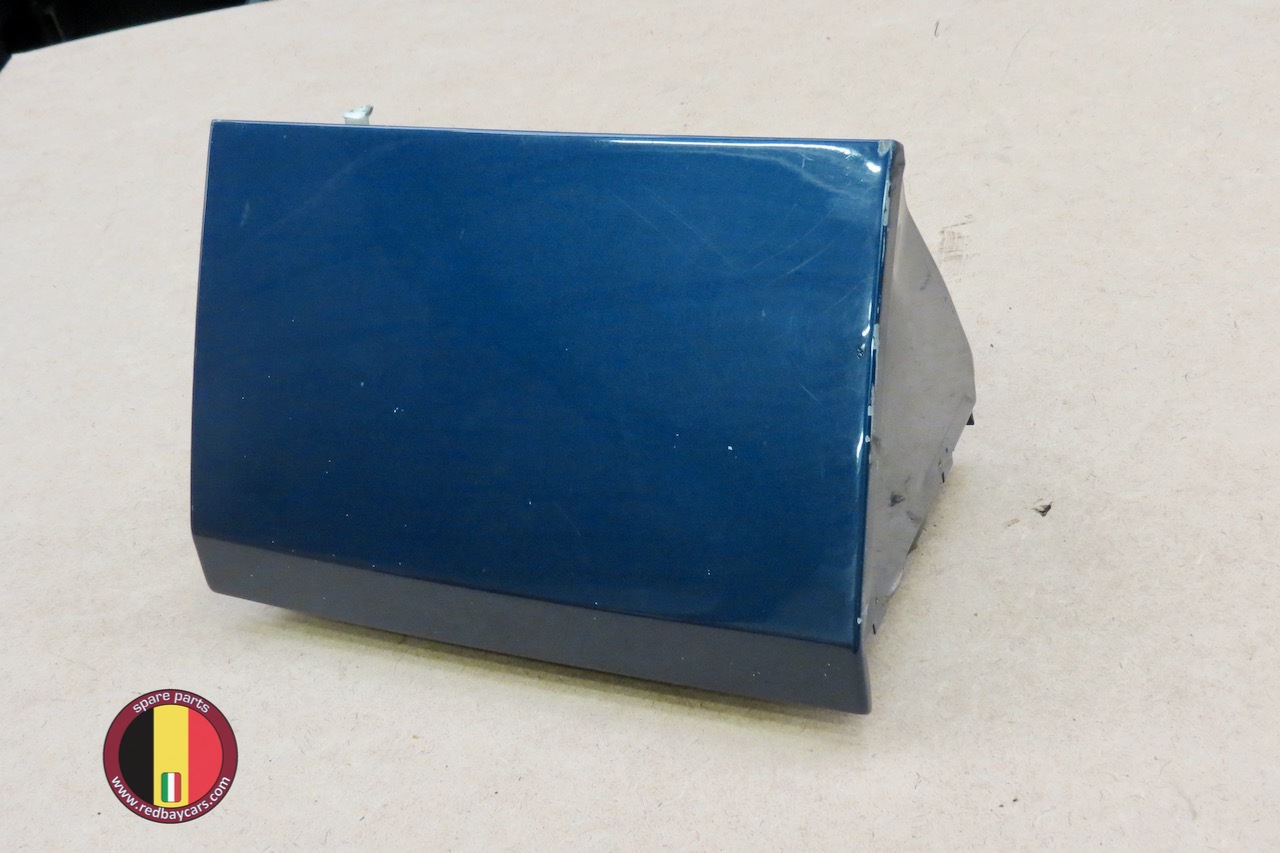

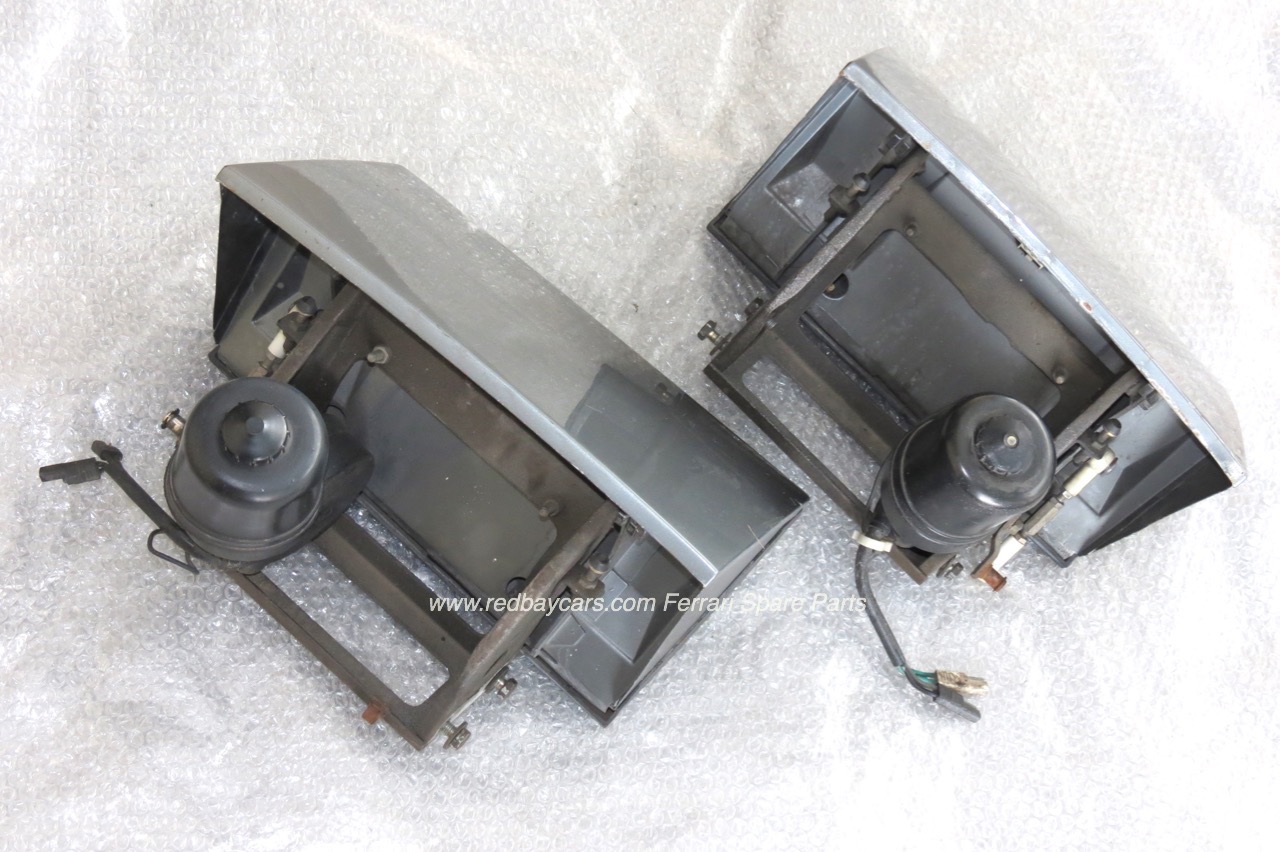

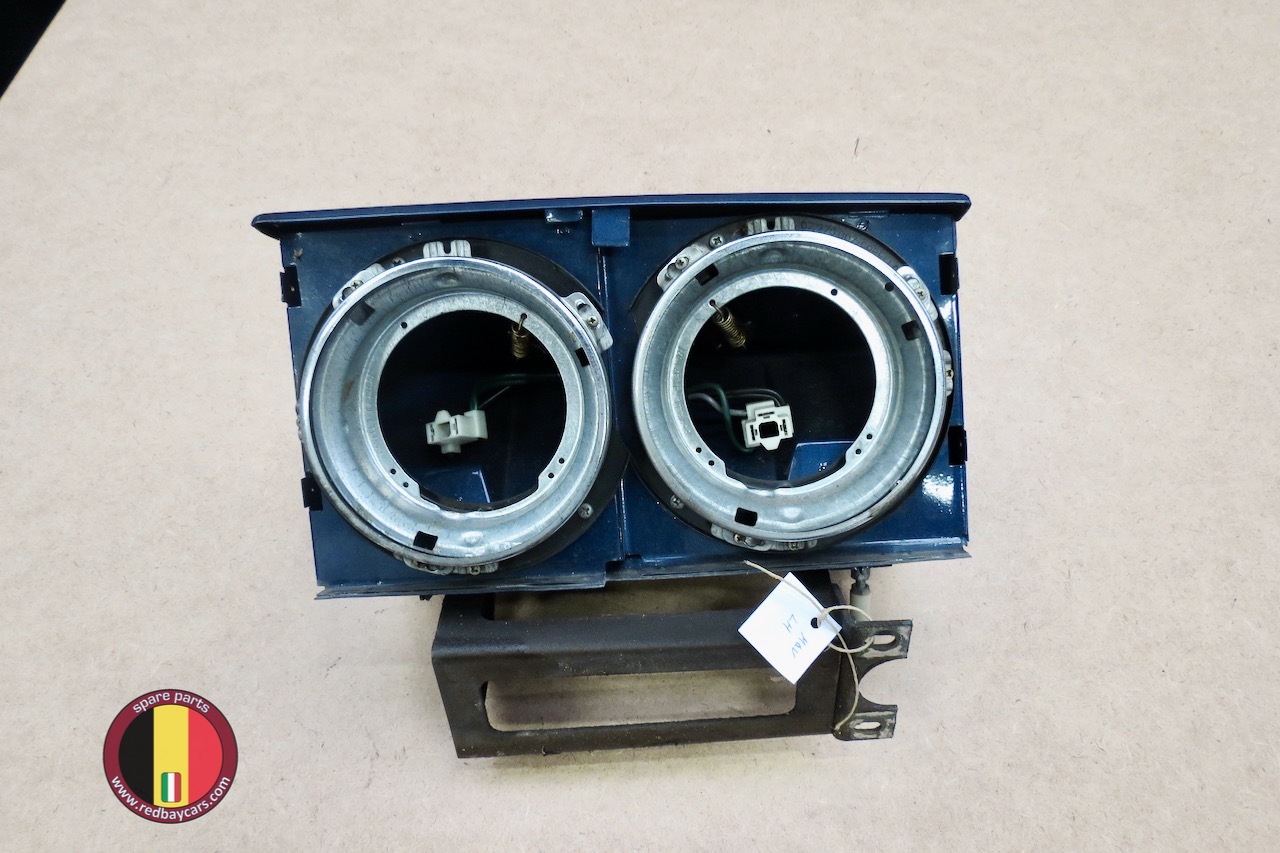

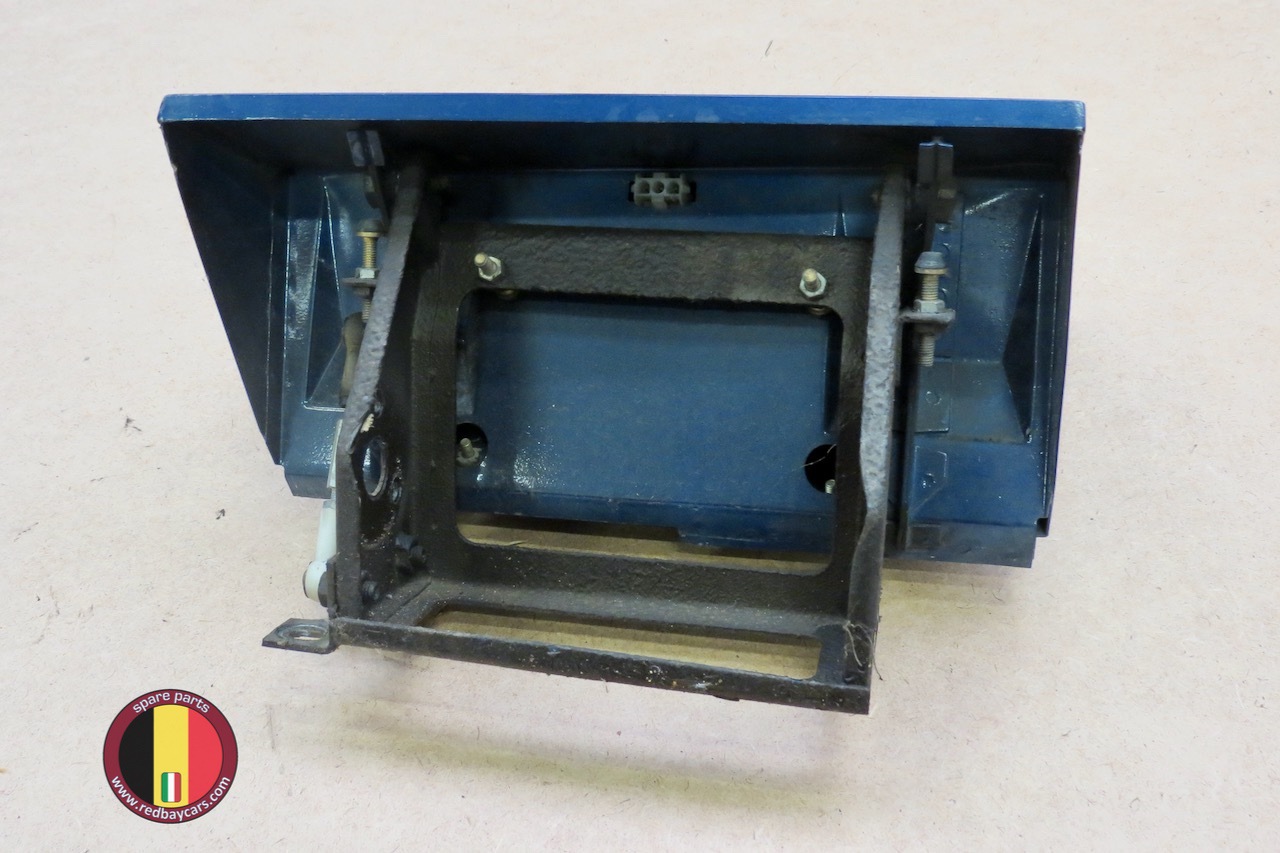

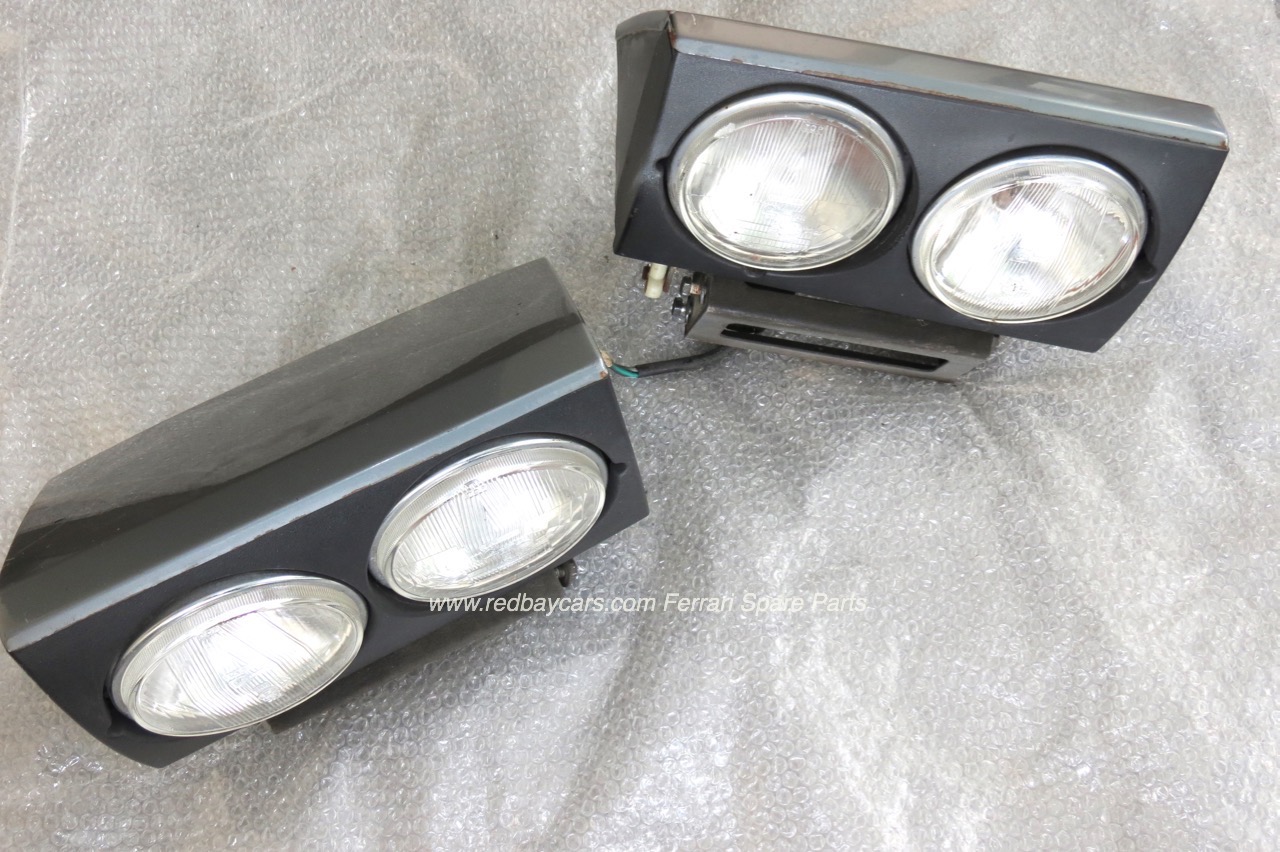

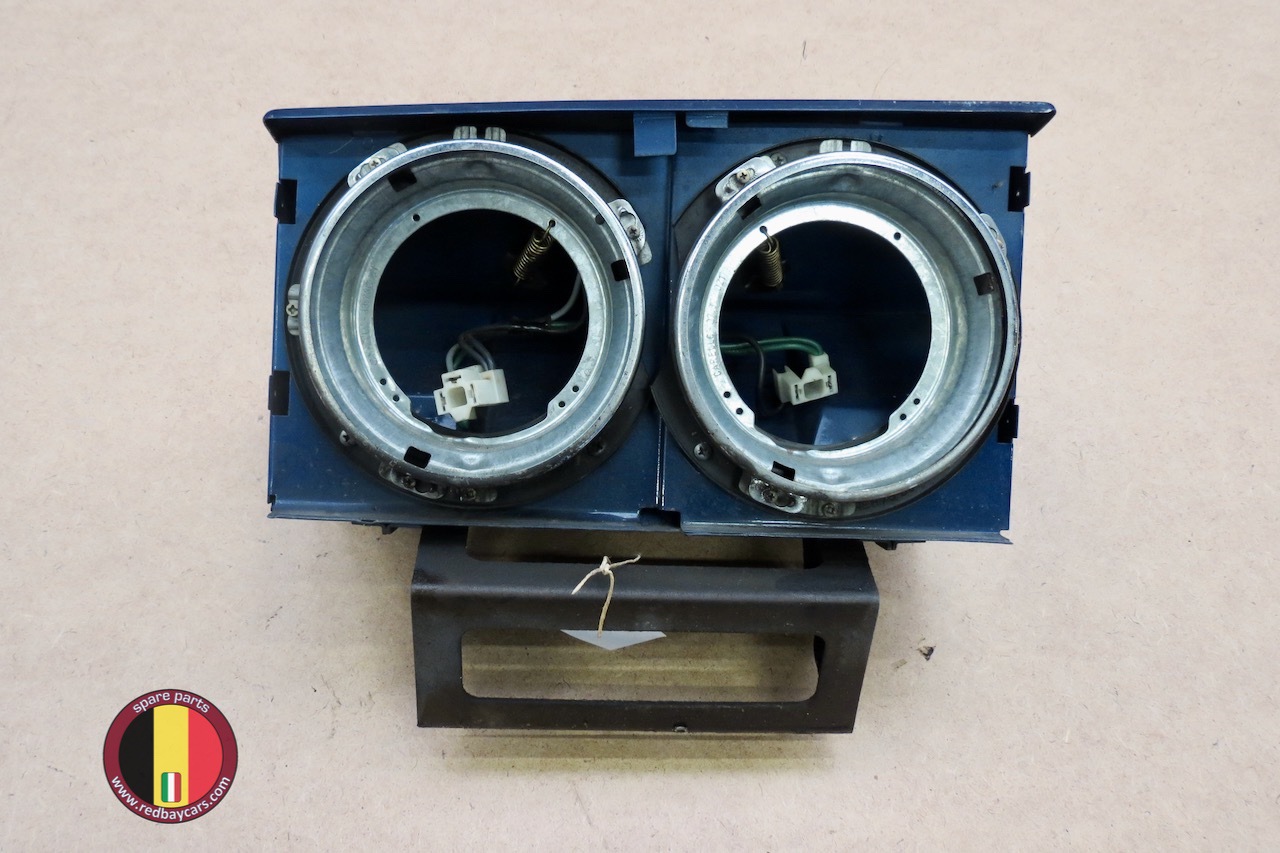

	Headlamp Housing M Part nr 60985700 RH and 60985600 LH Housing for pop-up lights, we have several RH and LH units in stock. Most of them have some light surface rust , some scuffs and small dents, so they all need some minor work as they have been used before. None of these blocks need serious metalwork, a sanding and paint job is required. Check availability in the webshop Detailed pictures here, here, here, here, here , here and here		Trunk Lid Support M Part nr 60563300 A new trunk lid support that fits all Mondial models. It is the 250Nm version. Check availability in the webshop Detailed picture here

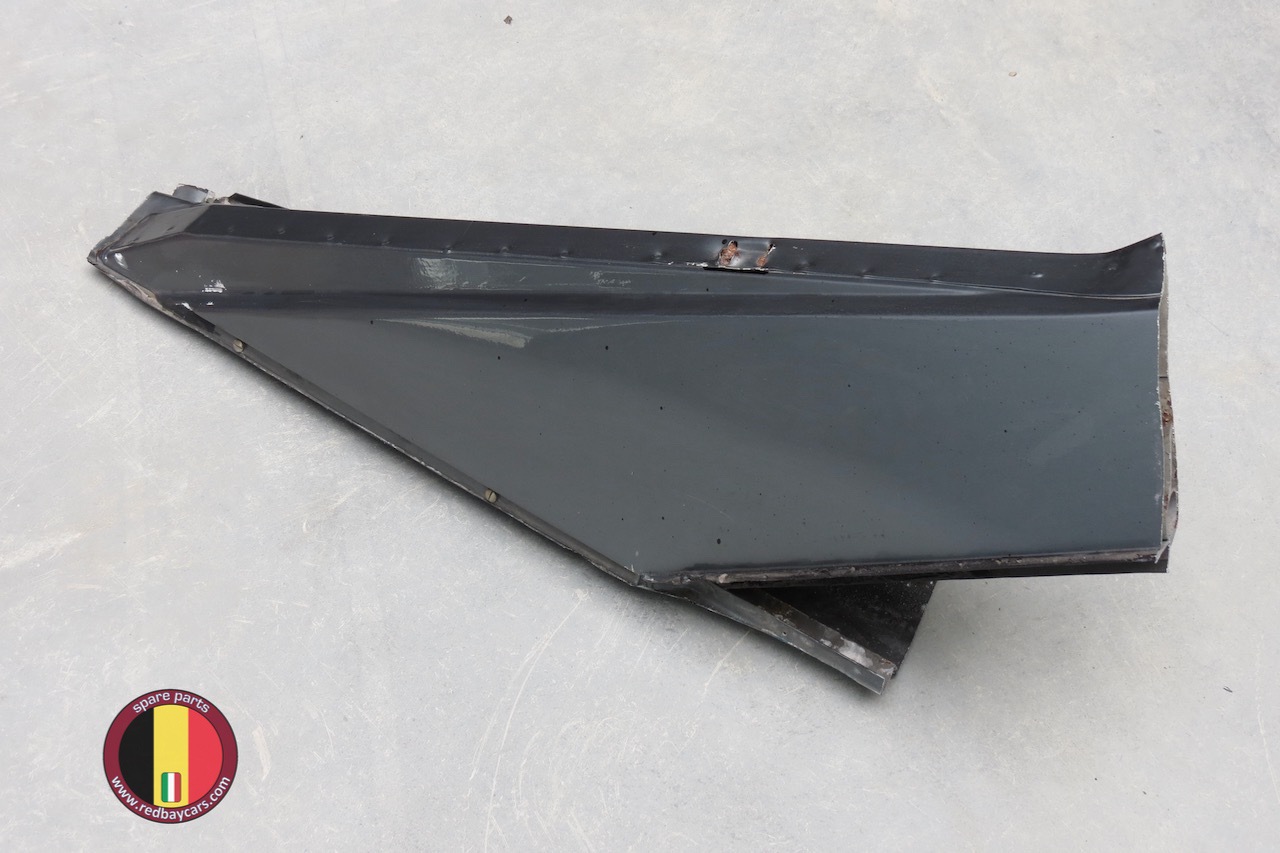

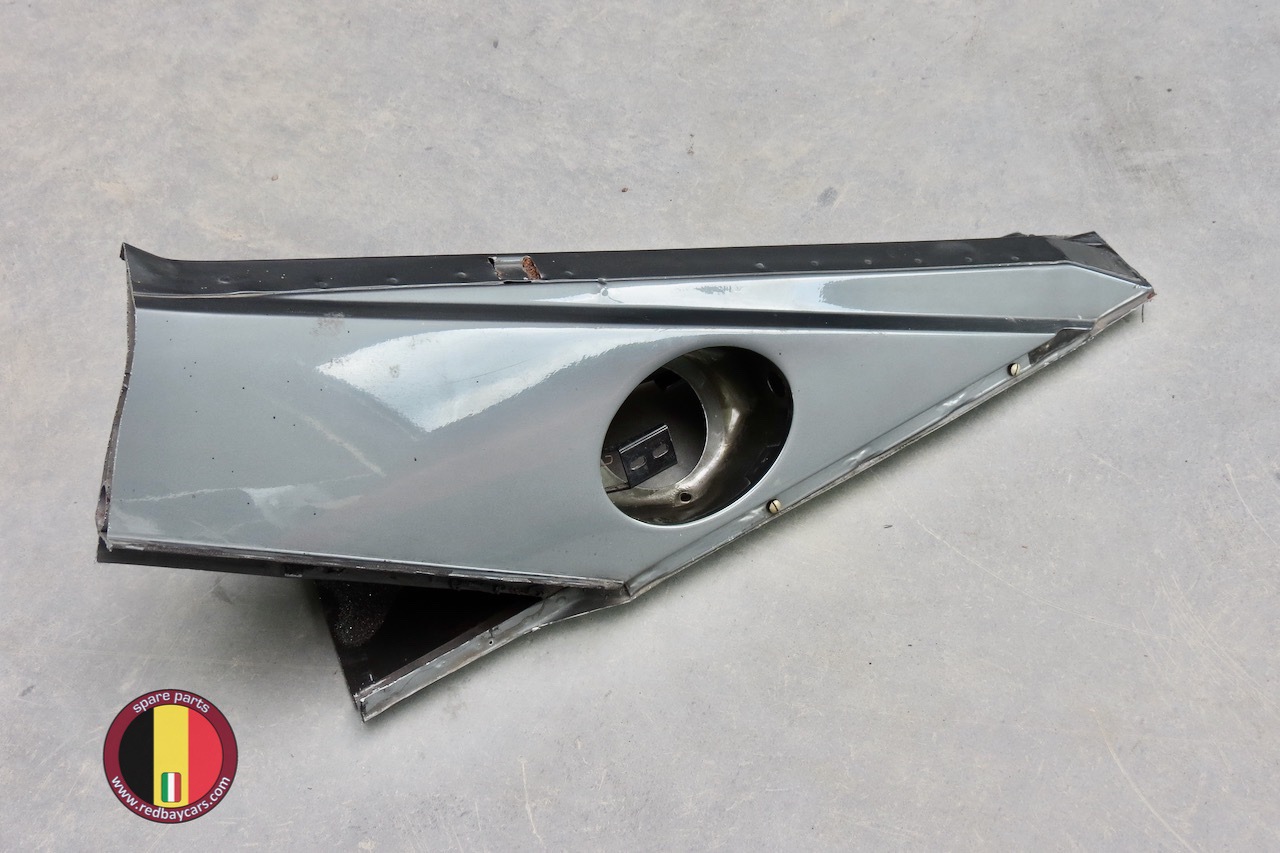

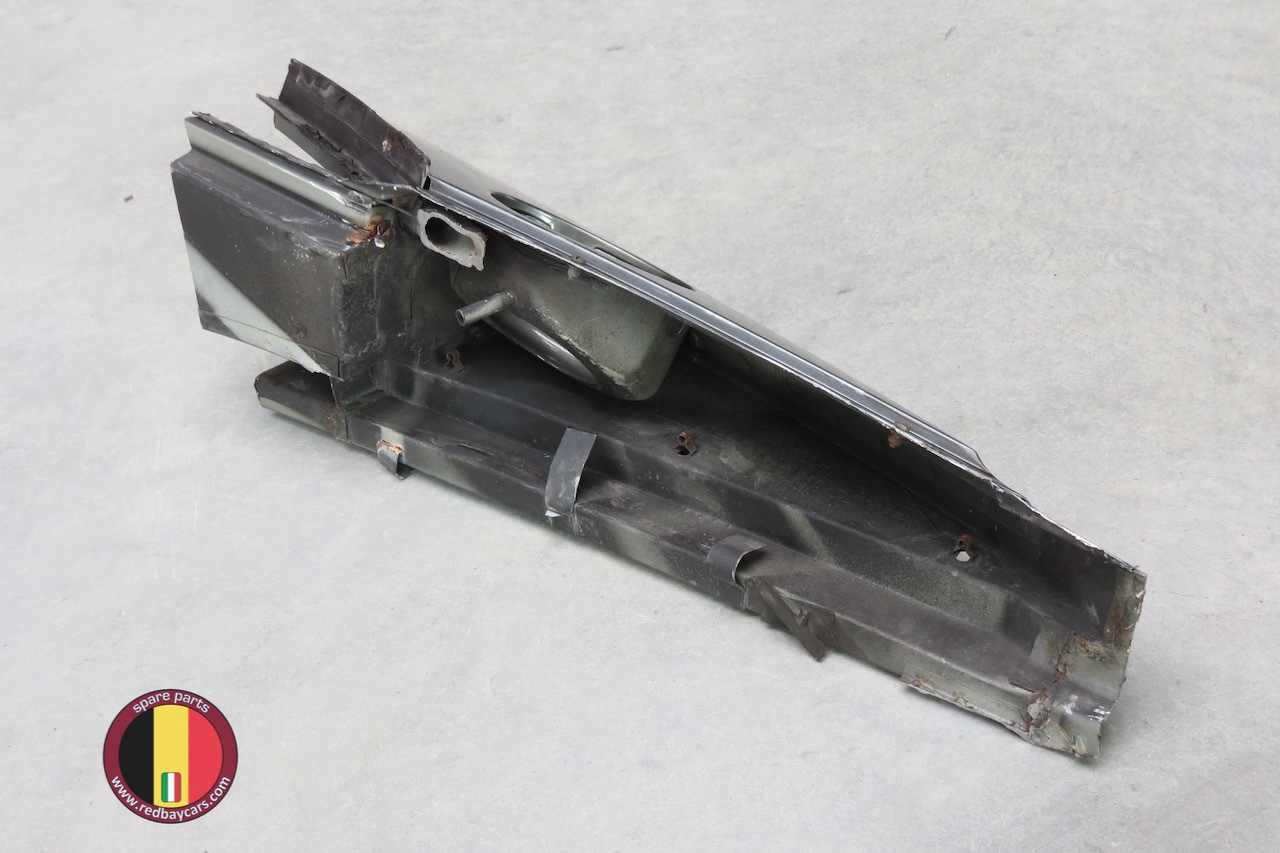

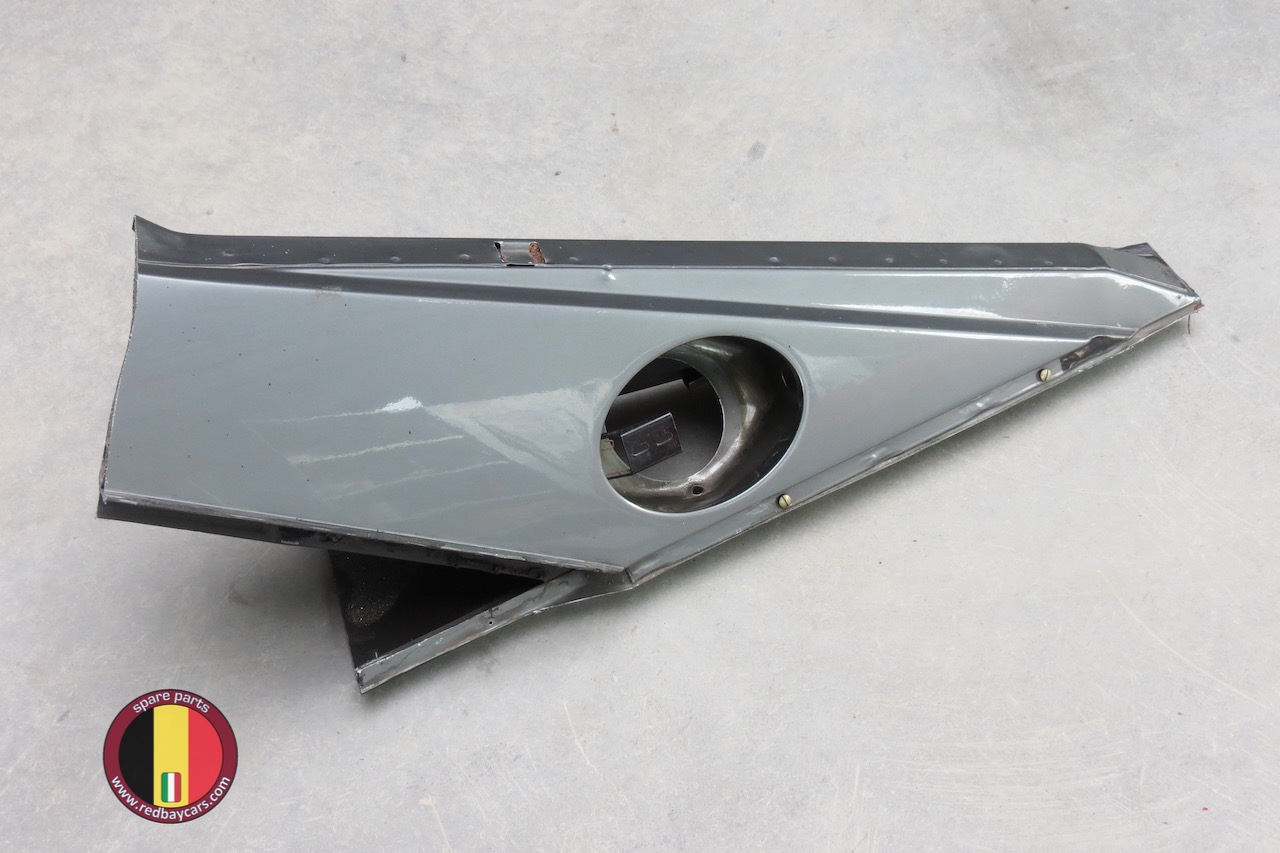

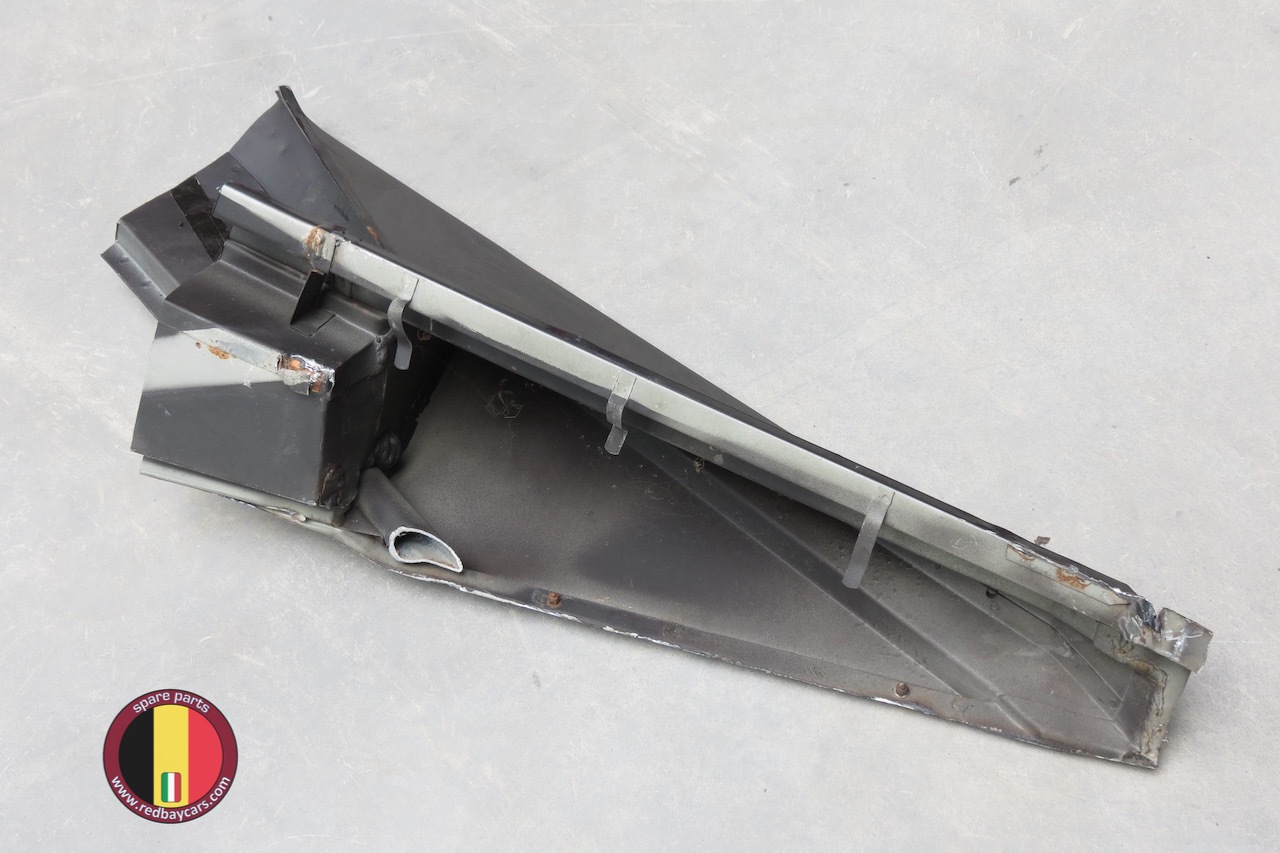

	Roof Support M Part nr 62374900 LH and 60512700 RH A triangular roof support frame that fits all Mondial models. It has been cut off from a 1993 Mondial 3.4t Valeo and shows no issues: no corrosion: no dents. Check availability in the webshop Detailed pictures here, here, here, here, here, here and here		Roof Panel M Part nr 60545400 This is a complete roof panel for all Ferrari Mondial coupe types. There are some small imperfections encircled in black, but the roof is in overall very good structure and totally free of rust. Of course, the panel requires some preparation work before repaint. Check availability in the webshop Detailed pictures here, here, here, here and here

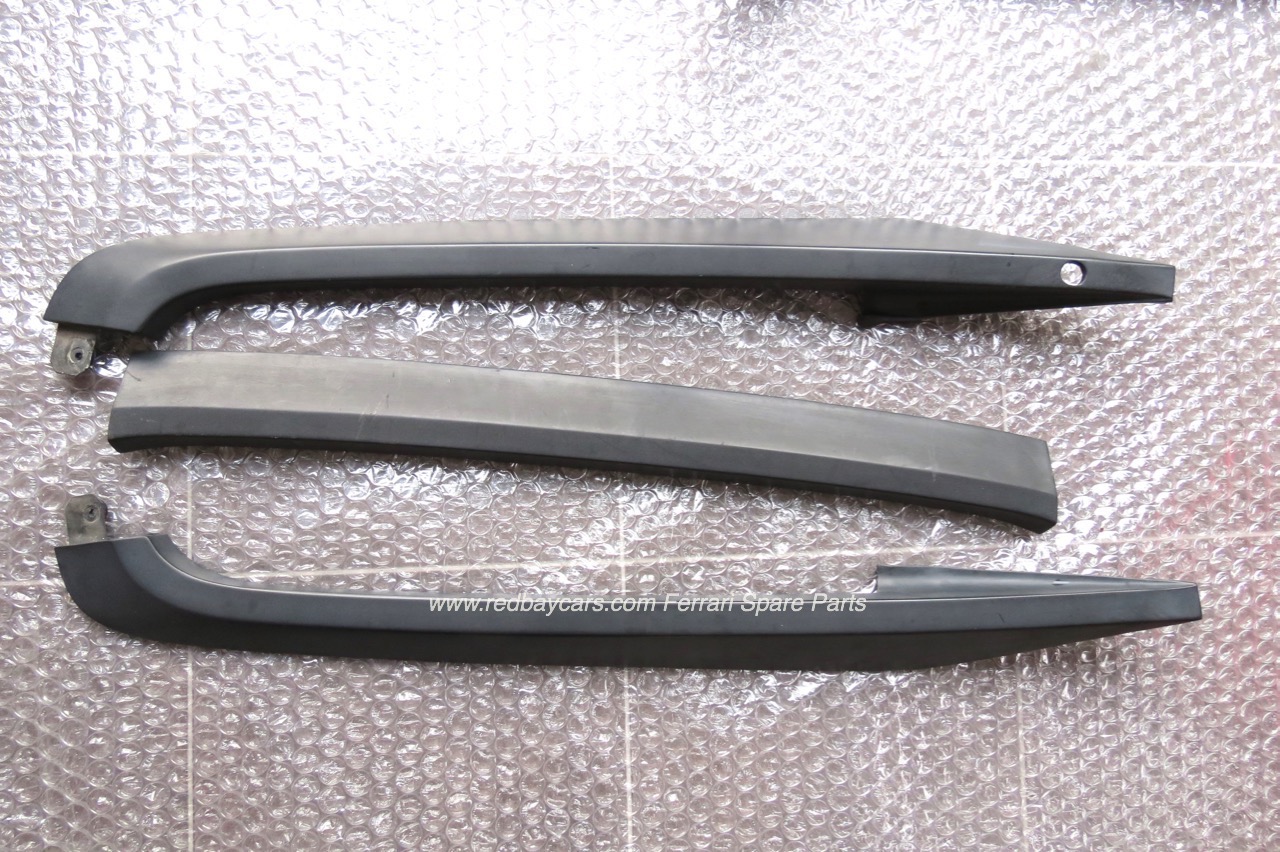

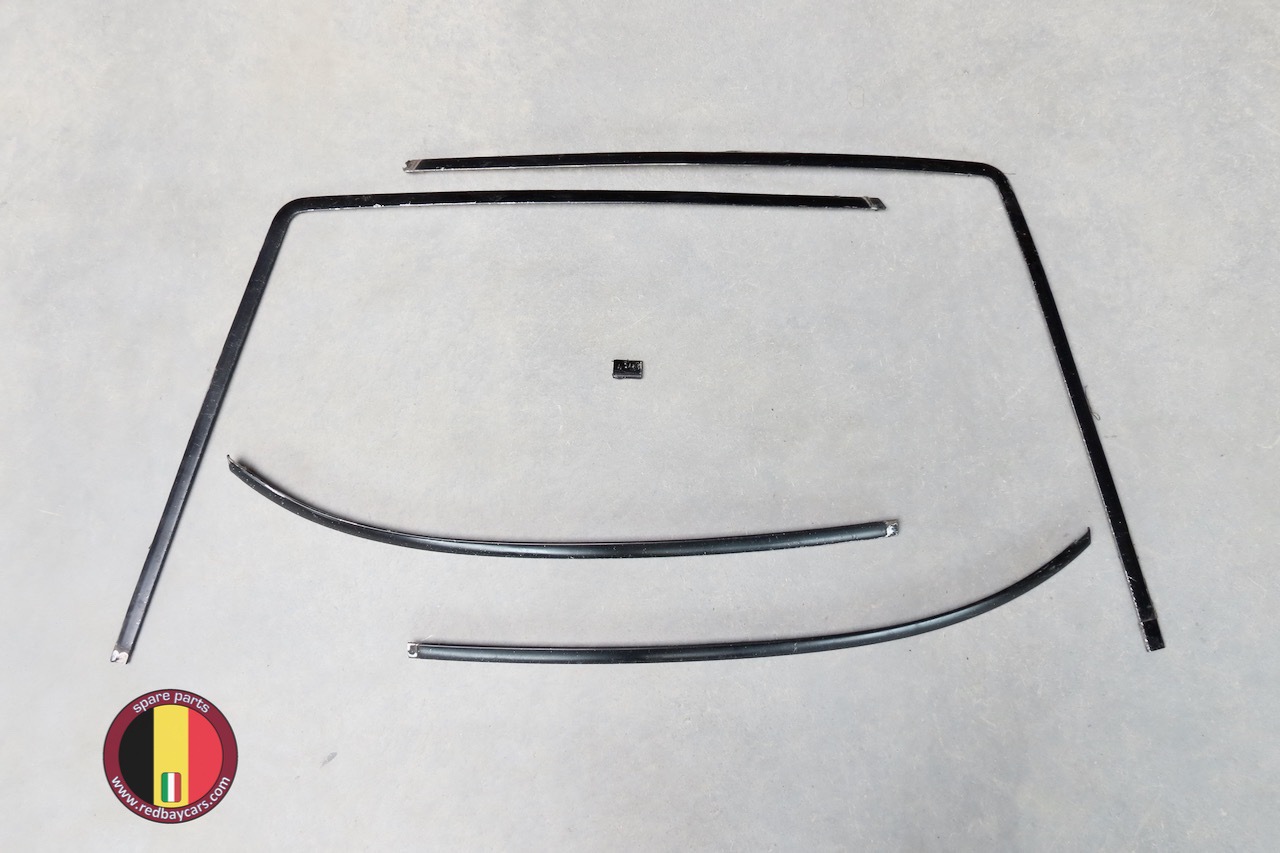

	Complete Windshield Moulding M Part nr 60998800 This is a complete set of windshield mouldings, including both small overlapping sections in the middle. These have to be sanded and repainted to be perfect. The structure is in excellent shape. Check availability in the webshop Detailed pictures here		Exhaust Heat Shield 308/308GT4 Part nr 116583 This is an aluminium heat shield in excellent original shape, free of cracks. Fits the 308GT4, 308 and Mondial 8 models. Check availability in the webshop Detailed pictures here and here

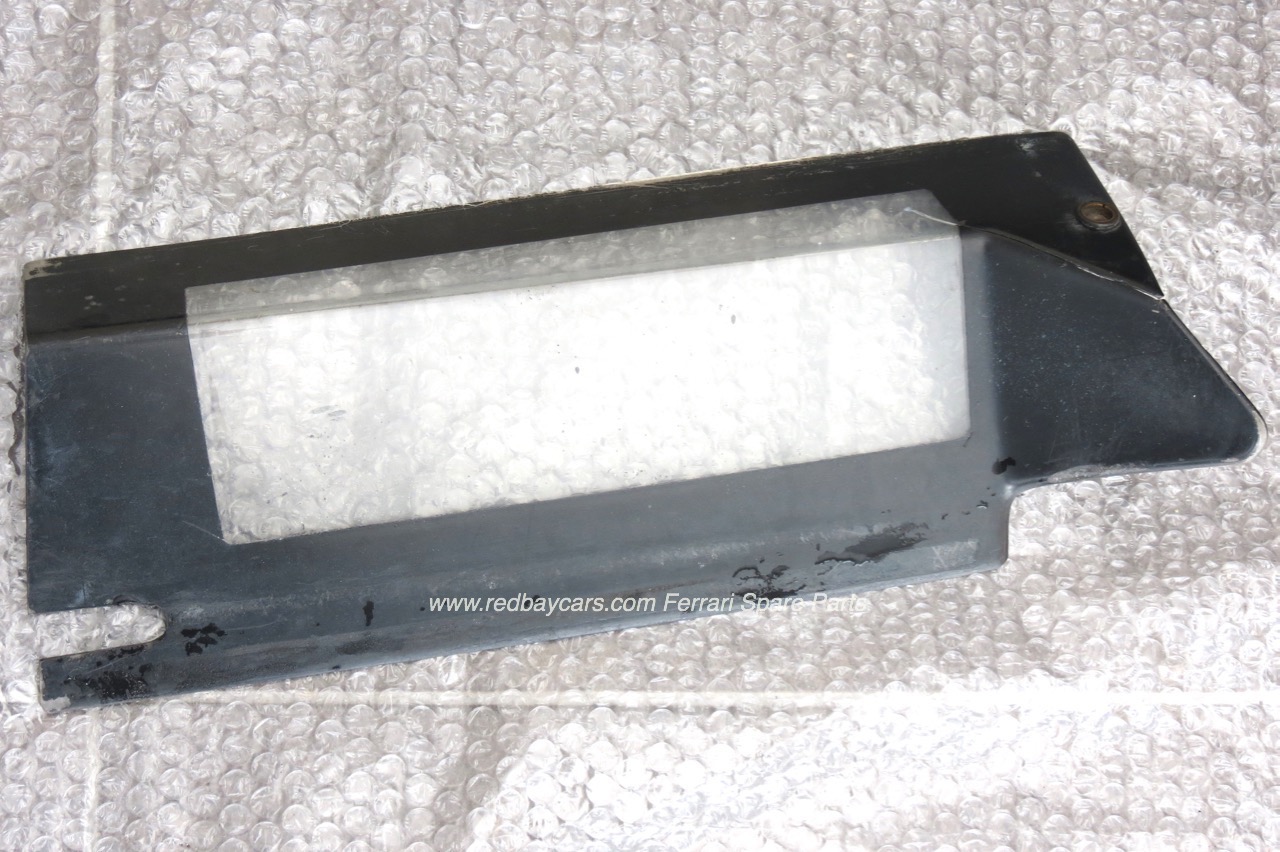

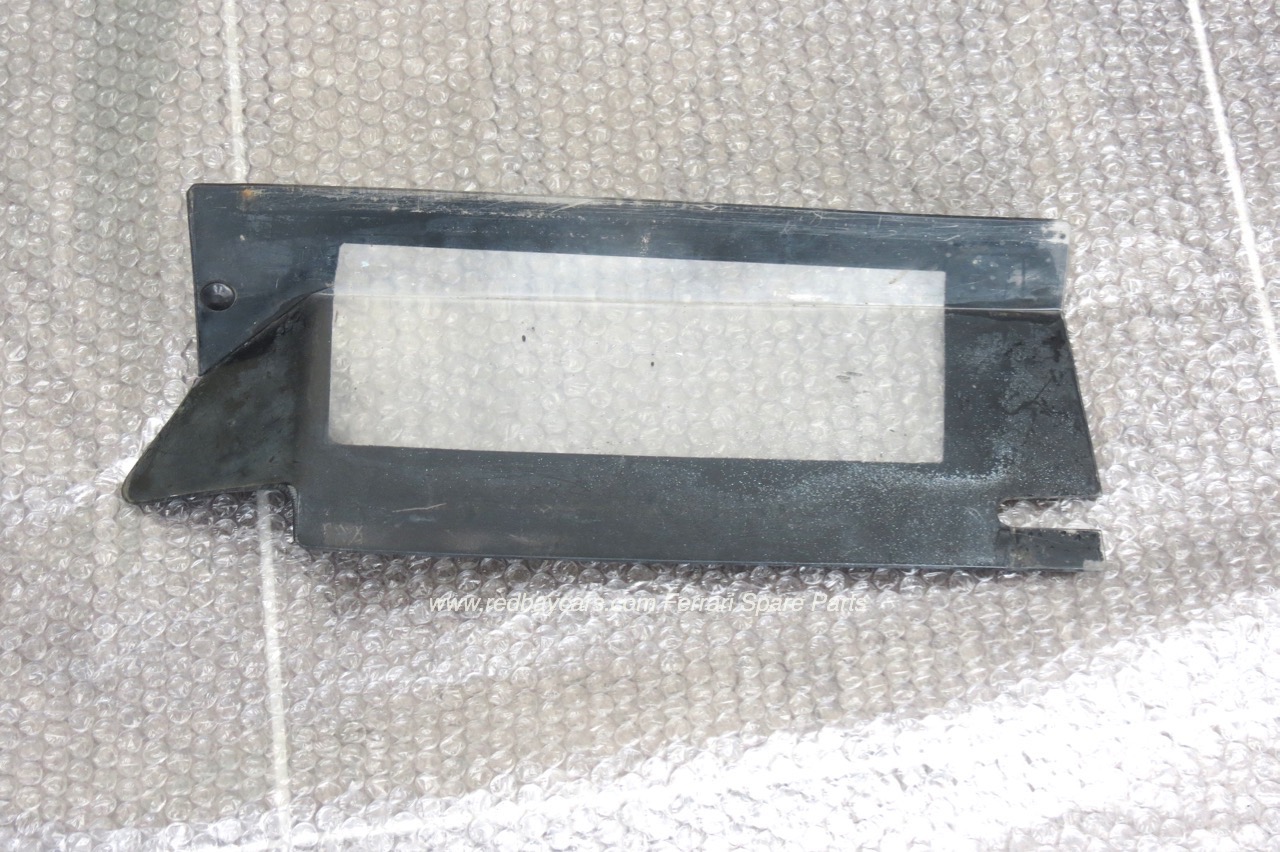

	Battery Inspection Panel M8/MQV/M32 Part nr 60641500 Check availability in the webshop Detailed pictures here, here and here

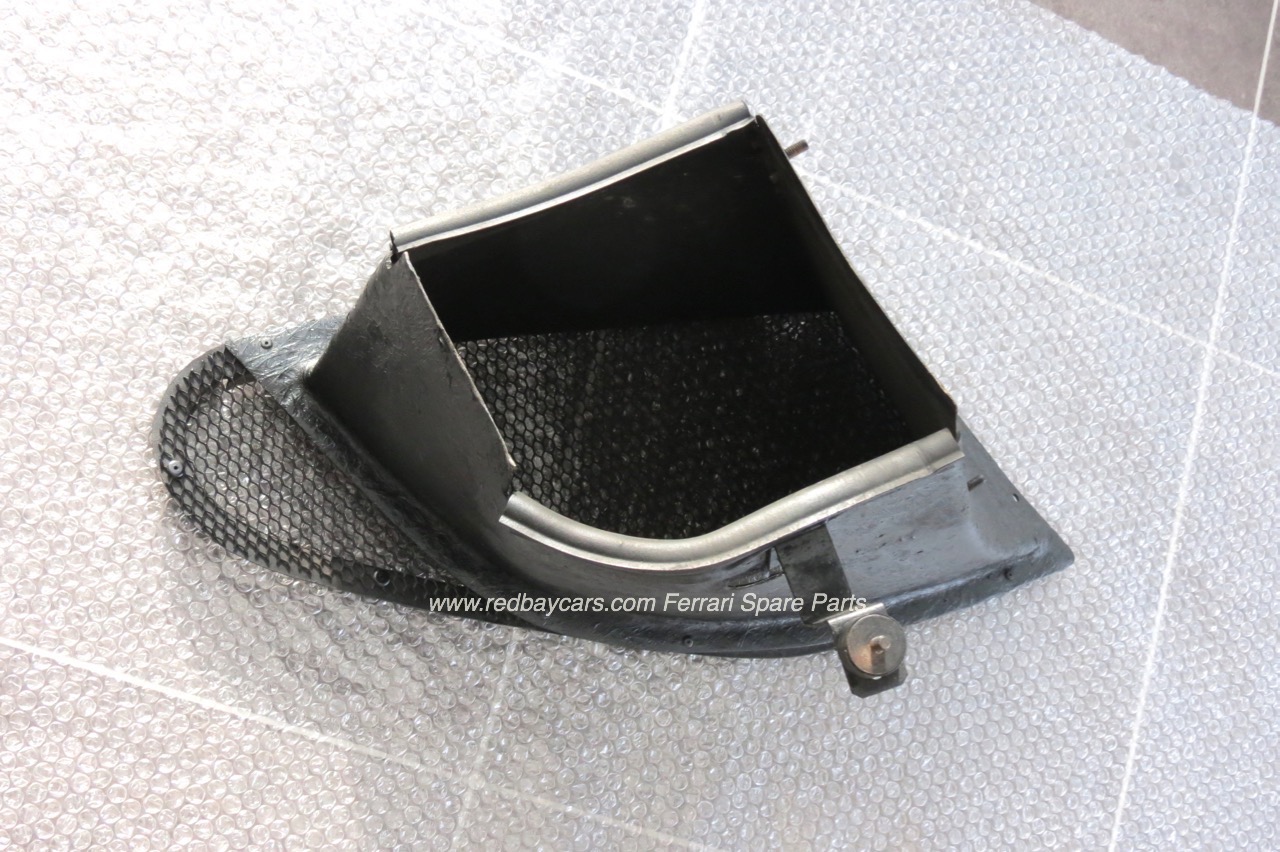

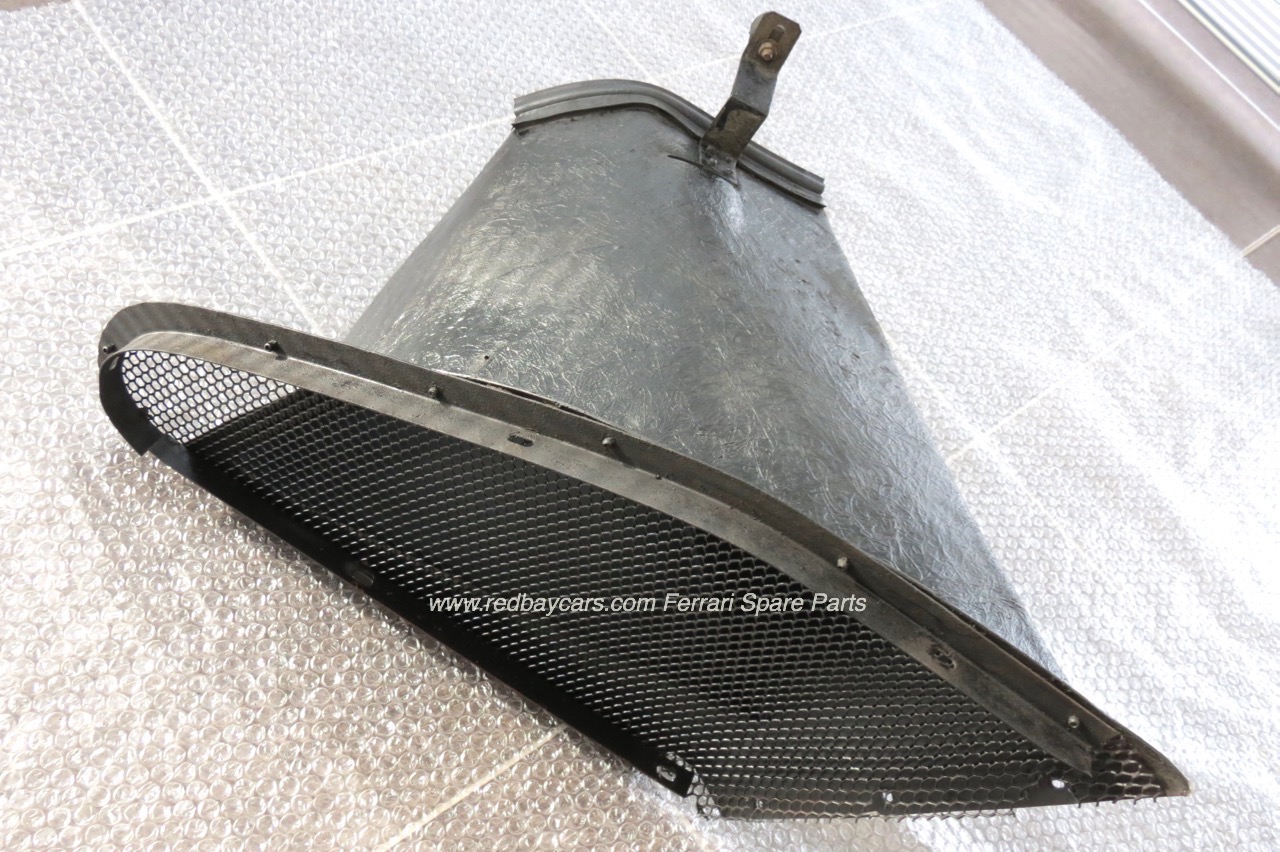

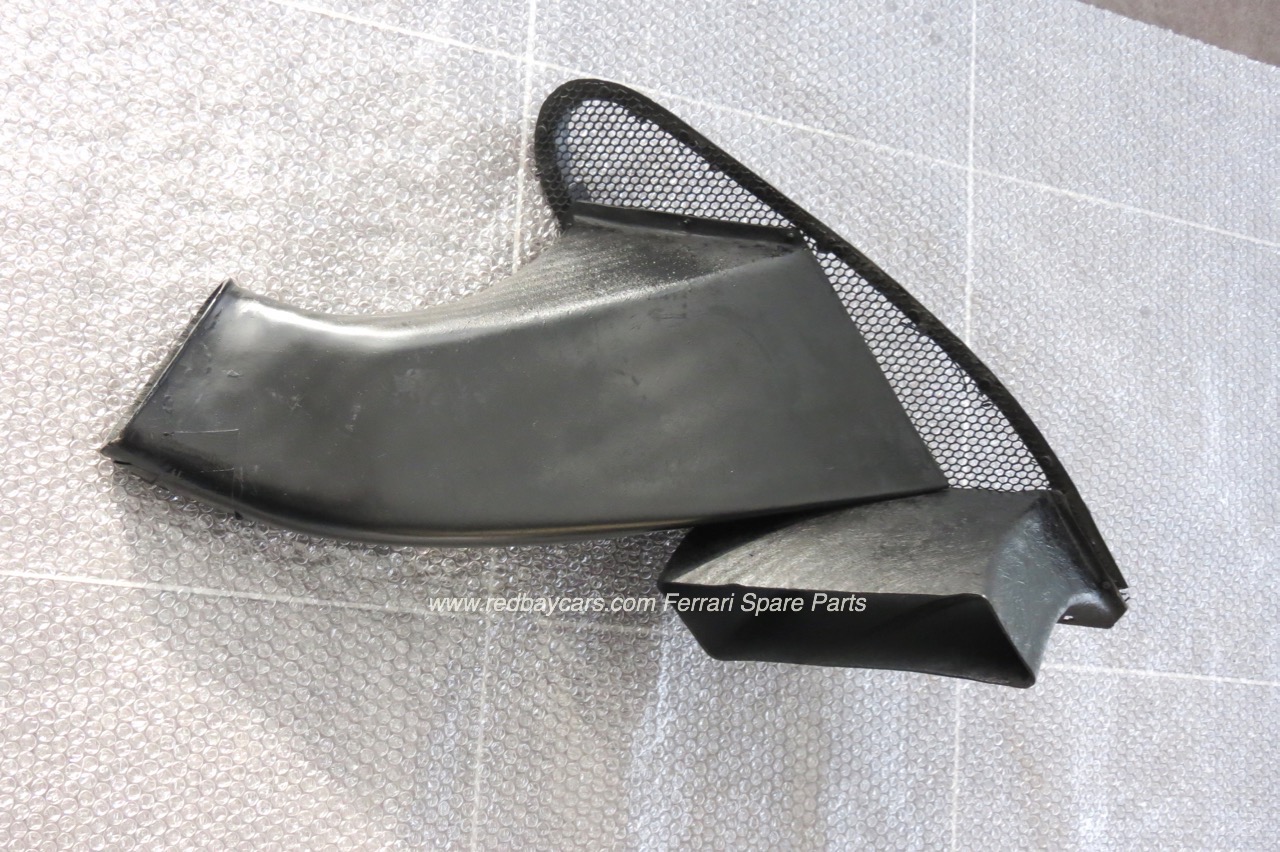

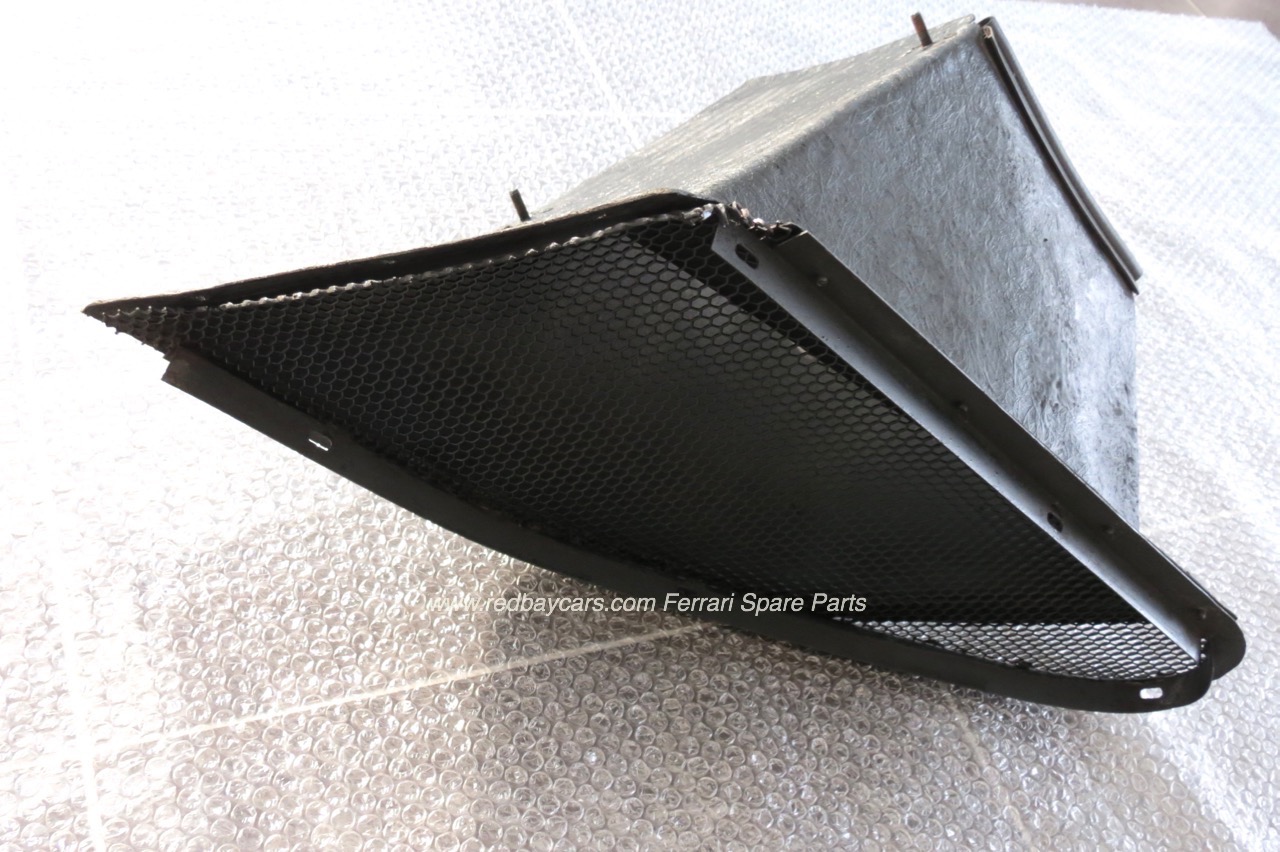

	Part nr 60699300 R.H Air intake In good condition. Only fits the Mondial 8 because of the single tunnel leading air to the engine block. Check availability in the webshop Detailed pictures here and here		Part nr 61862900 L.H. Air intake Item in great condition. Also fits Mondial QV and 3.2 Check availability in the webshop Detailed pictures here, here and here

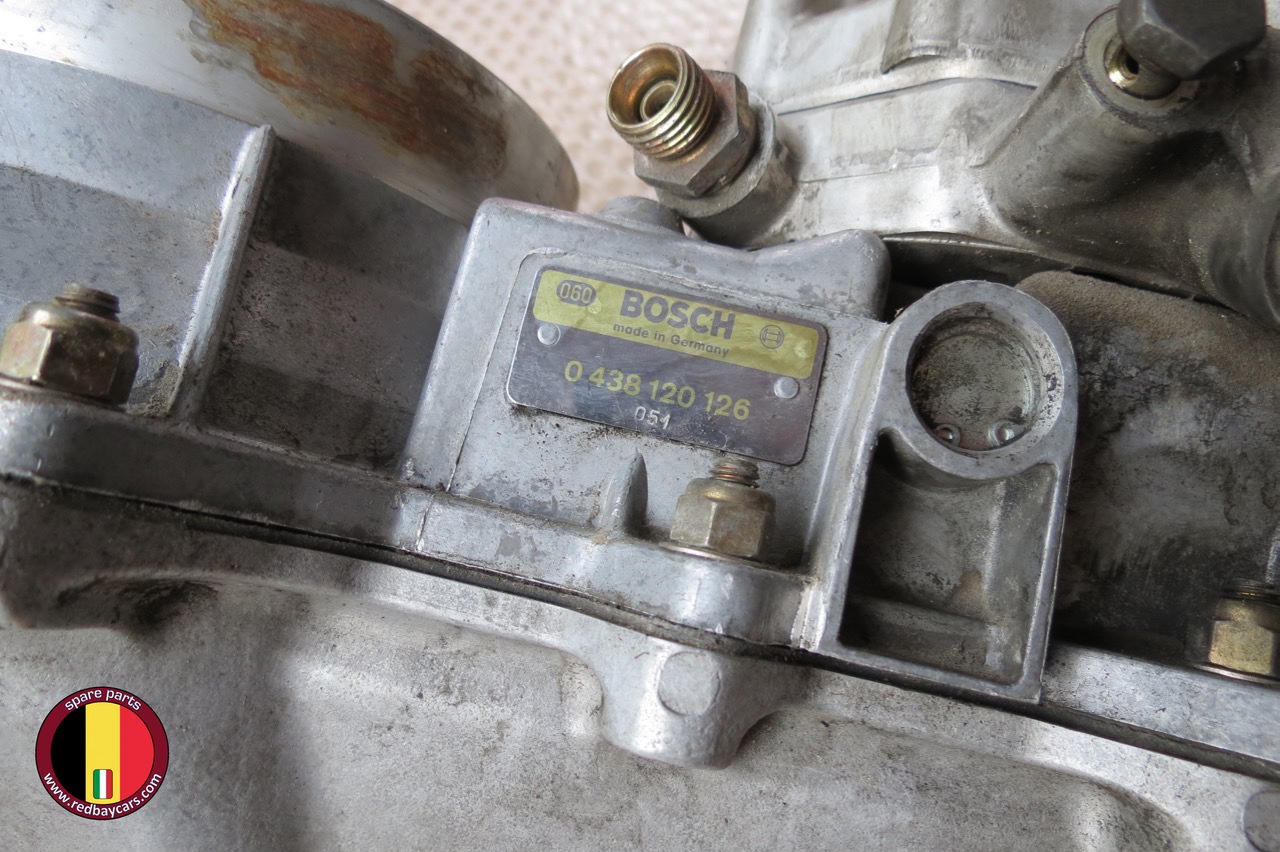

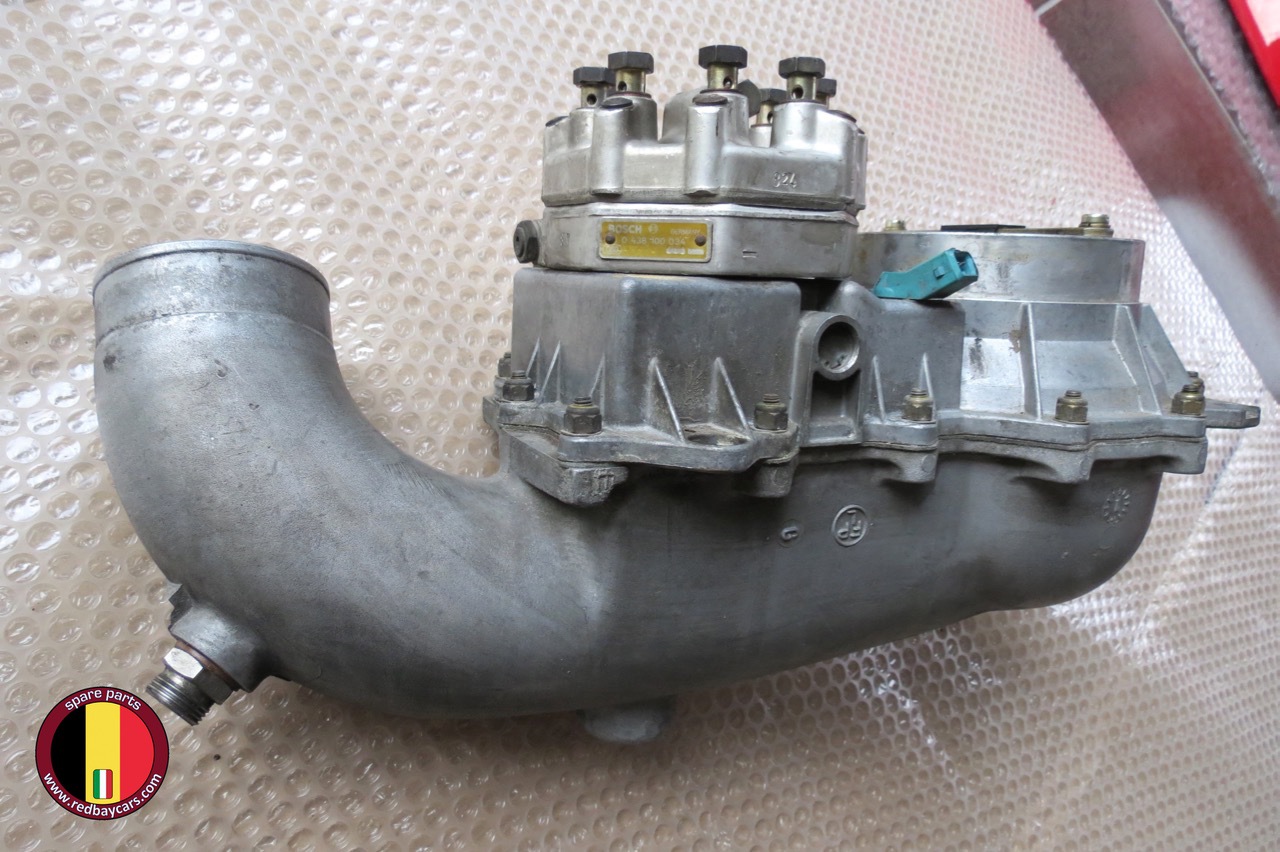

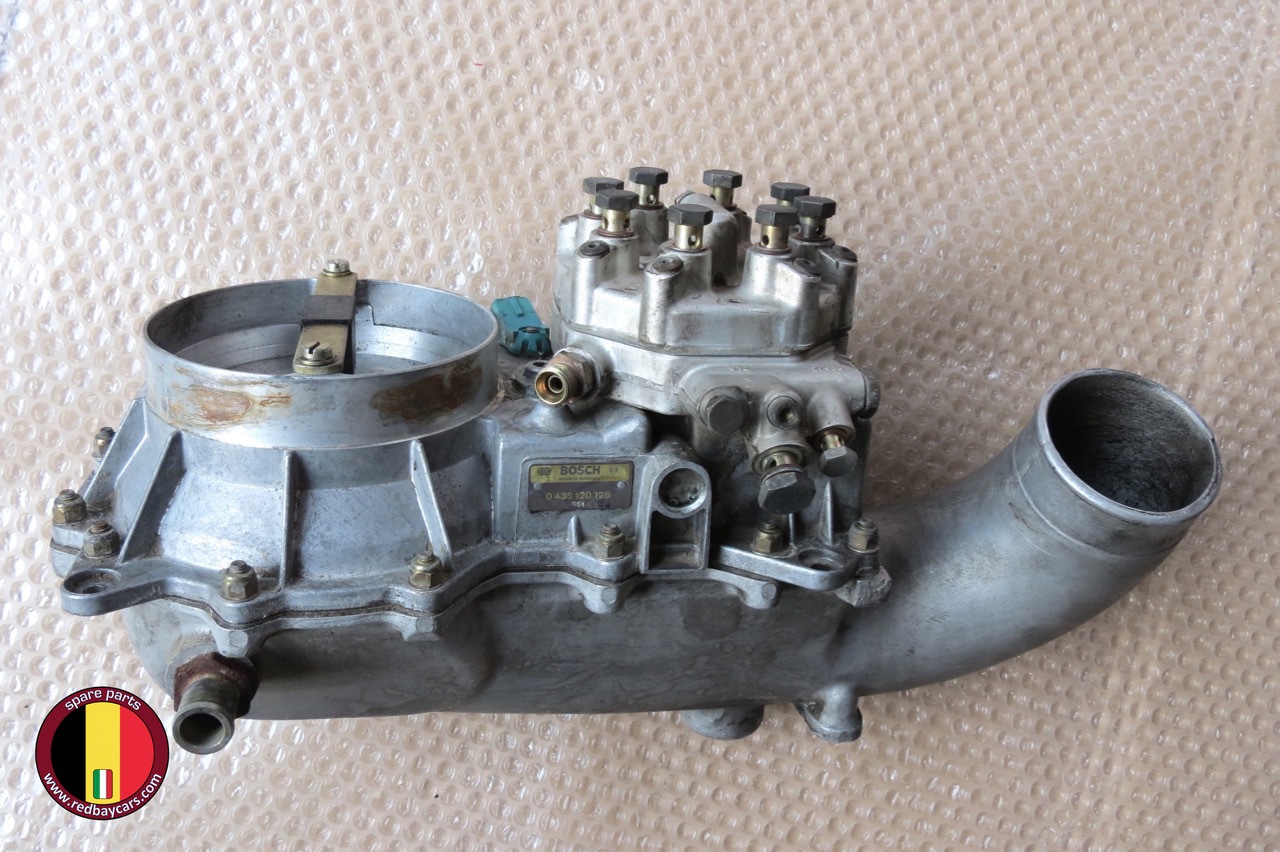

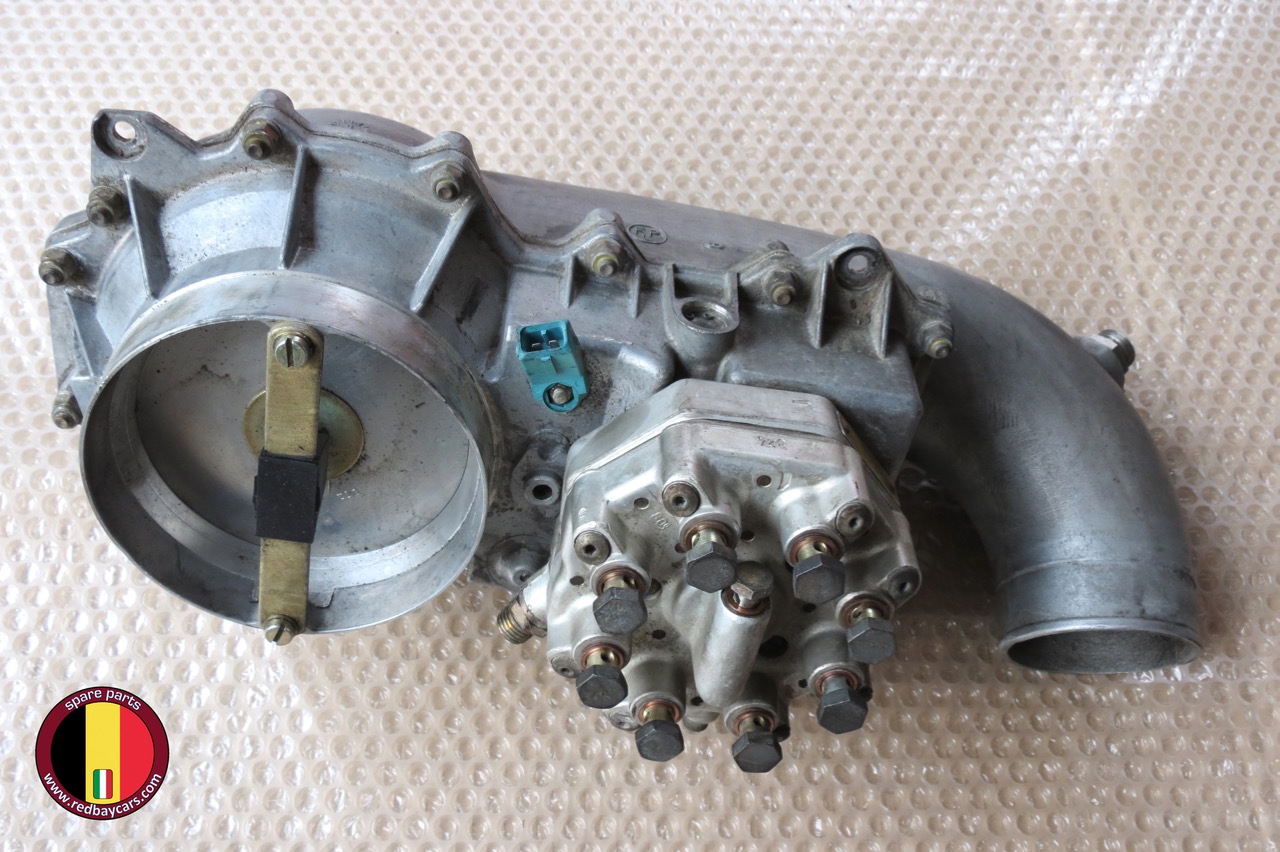

	BOSCH K-Jetronic Fuel Injection System This K-Jetronic comes from a 70.000km 308 GTSi and is in good shape! All bolts included. Type 0438120126. Check availability in the webshop Detailed pictures here, here, here and here.		Part nr 115742 Complete Air Filter Box This is a nice air filter housing for the engine of the 308 injection version. It is still holding an air filter which is close to new. Bolts also included. Check availability in the webshop Detailed pictures here, here and here.

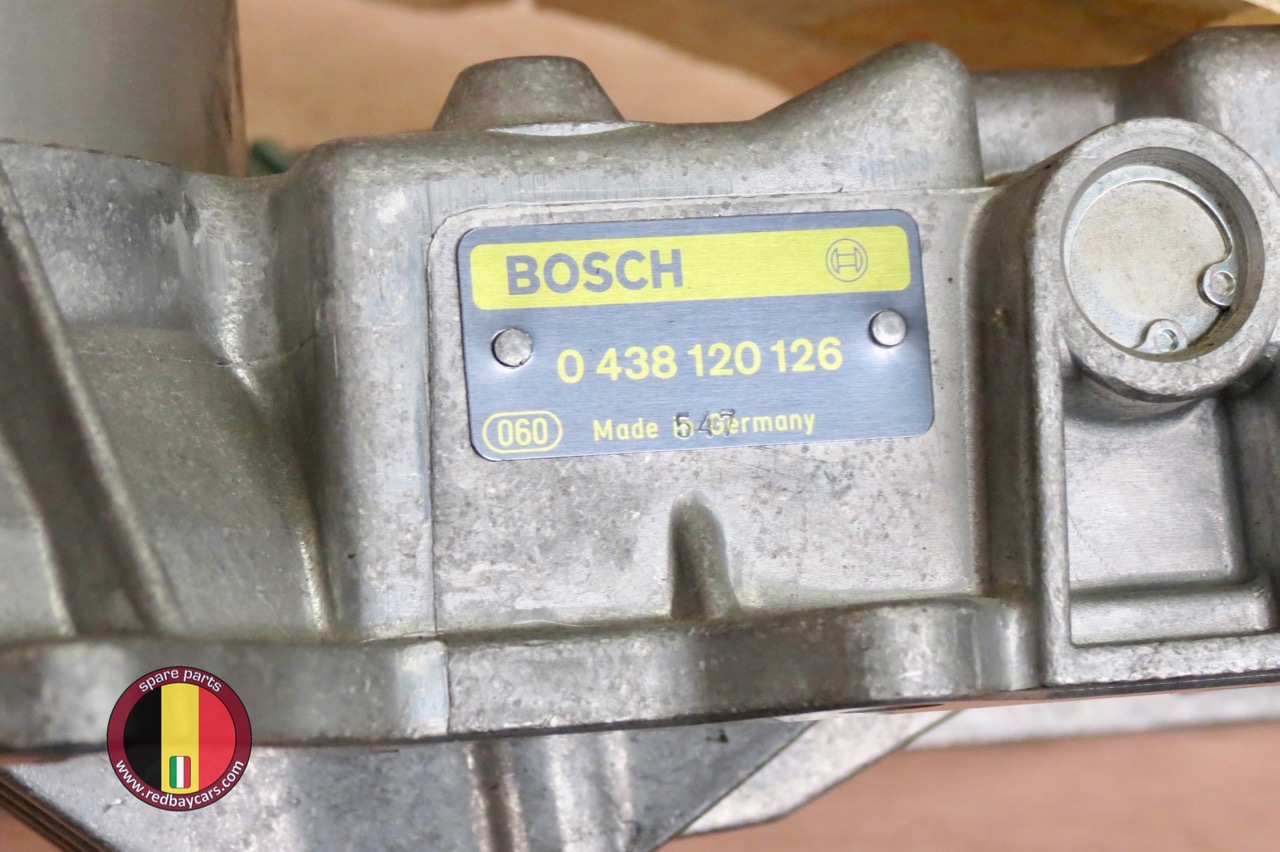

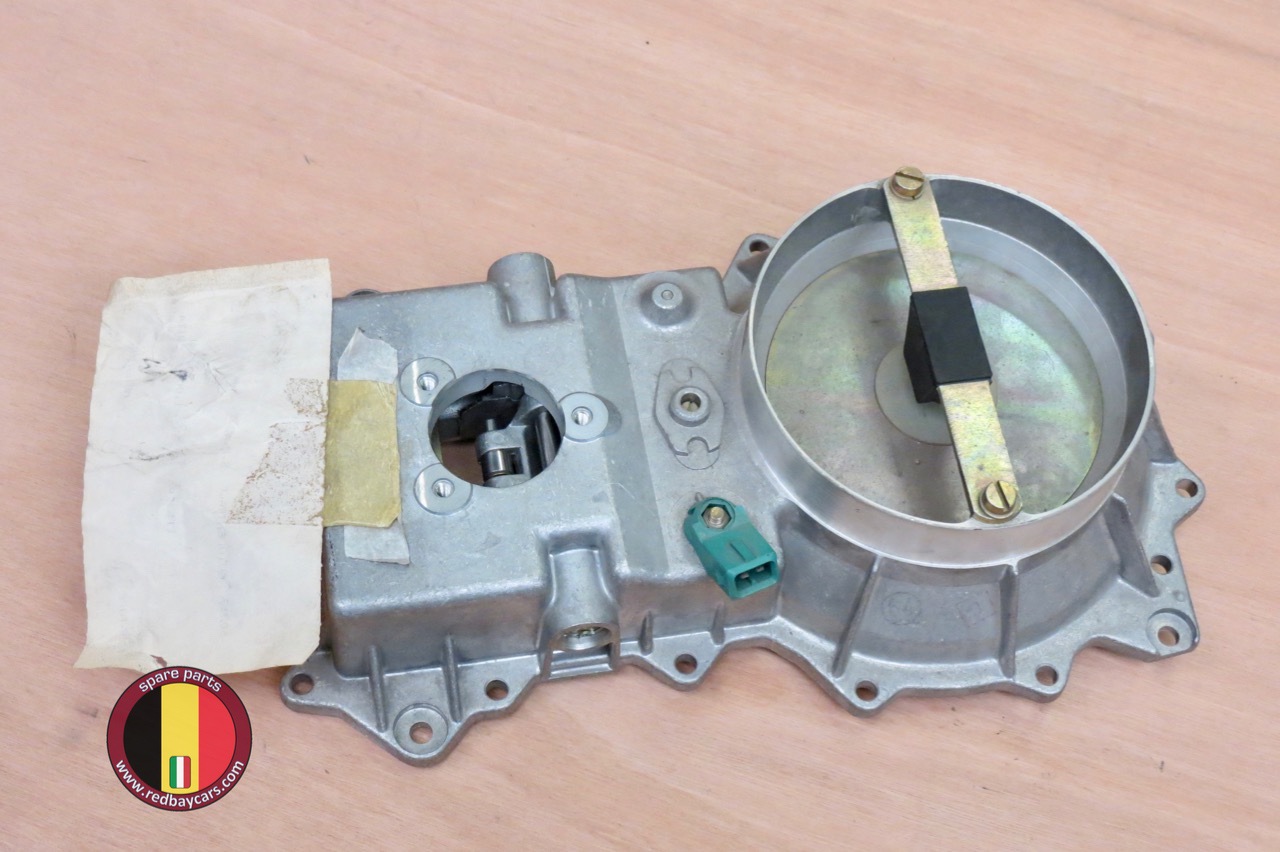

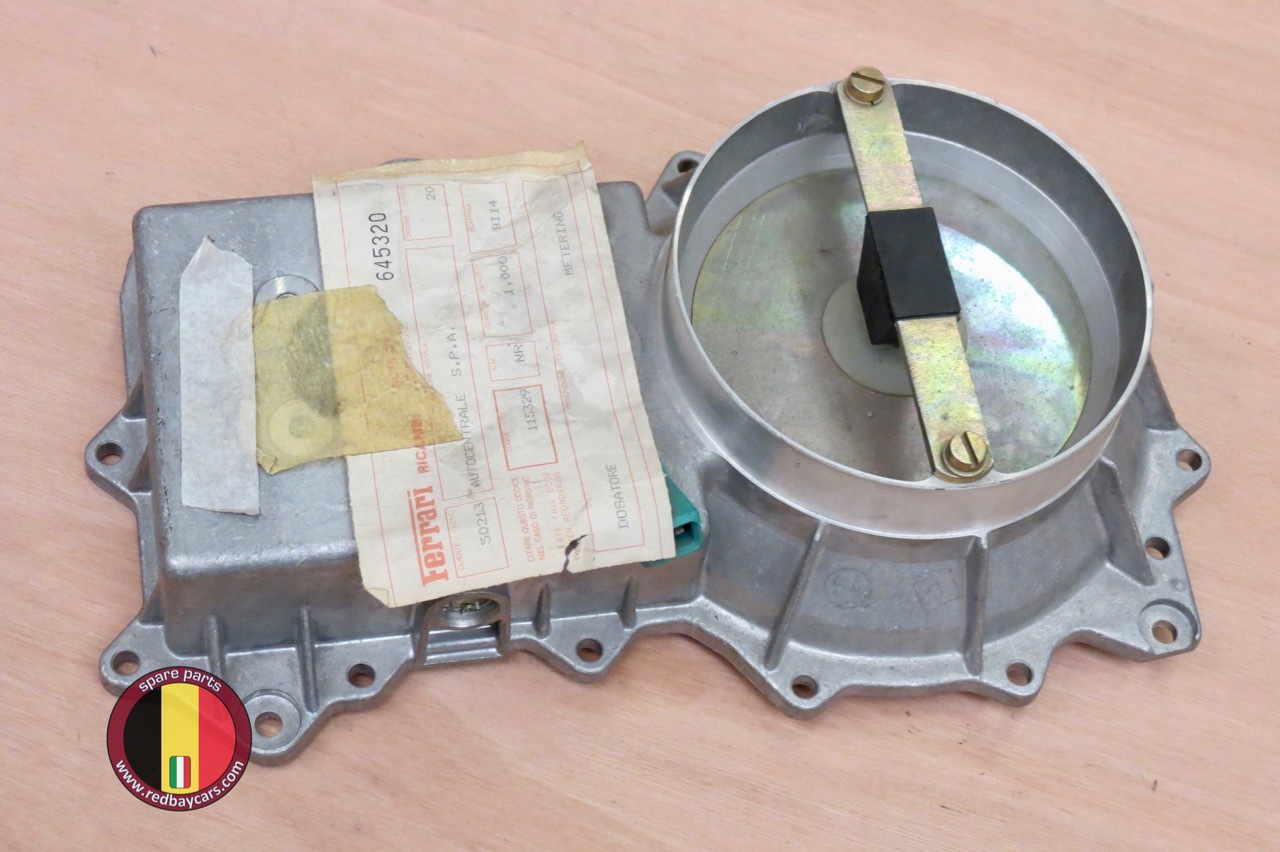

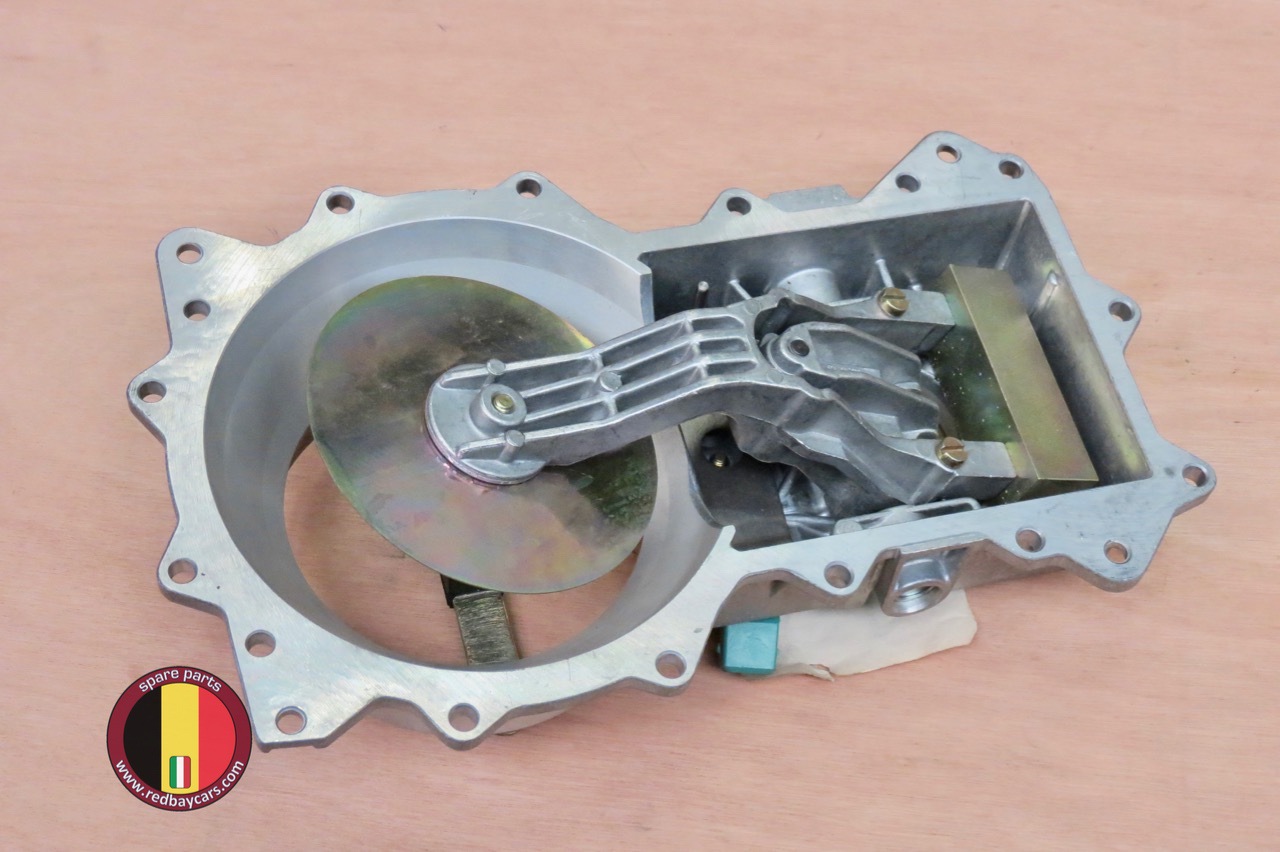

	Metering Device BOSCH K-Jetronic Part nr 115329 This is a new top for the K-Jetronic fuel distributor, never used before. BOSCH type 0 438 120 126. Fits many Ferrari types of the 80's. Check availability in the webshop Detailed pictures here, here, here and here		Fuel Pump BOSCH Part nr 121727 This is a new fuel pump made by BOSCH. Never used, brand new in its box. Fits a variety of models. Check availability in the webshop Detailed pictures here and here.

Air intake and Fuel System

Steering

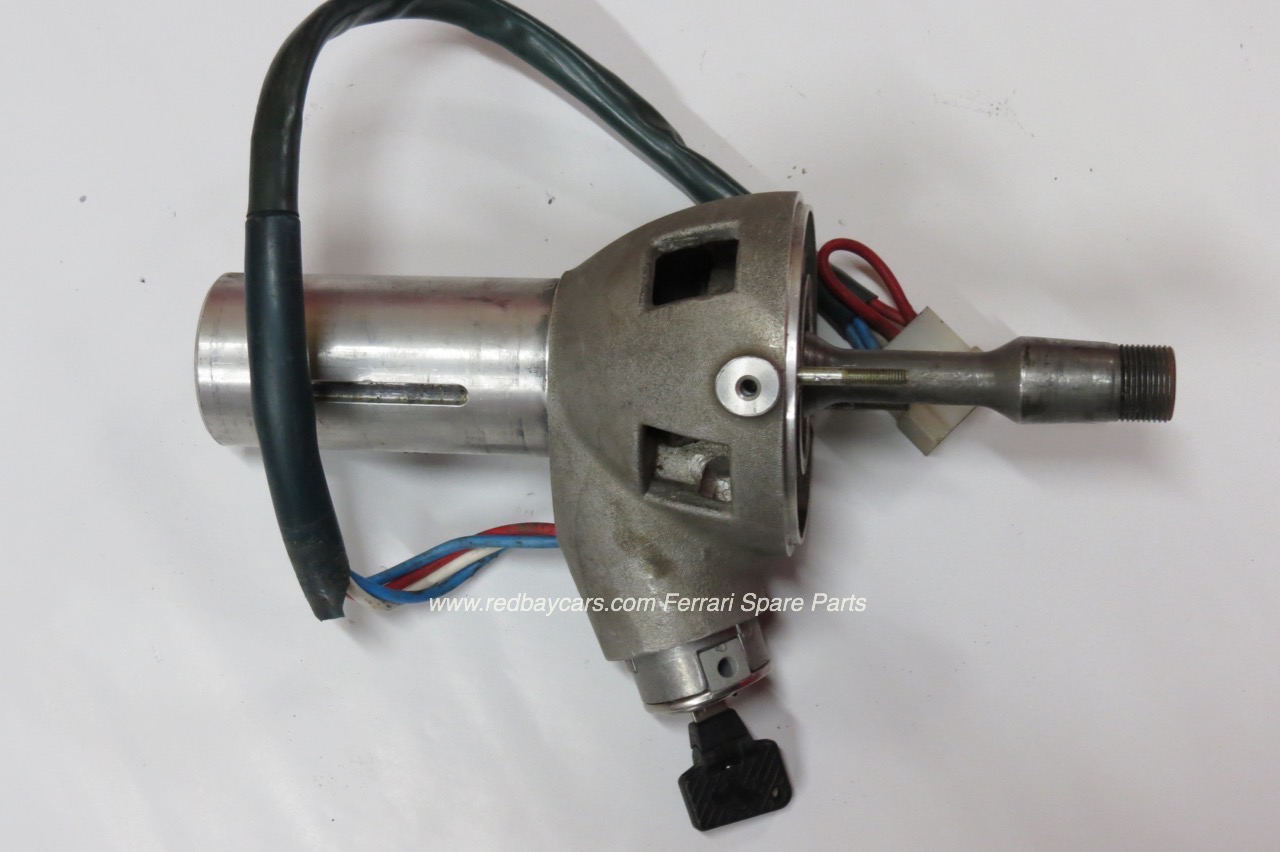

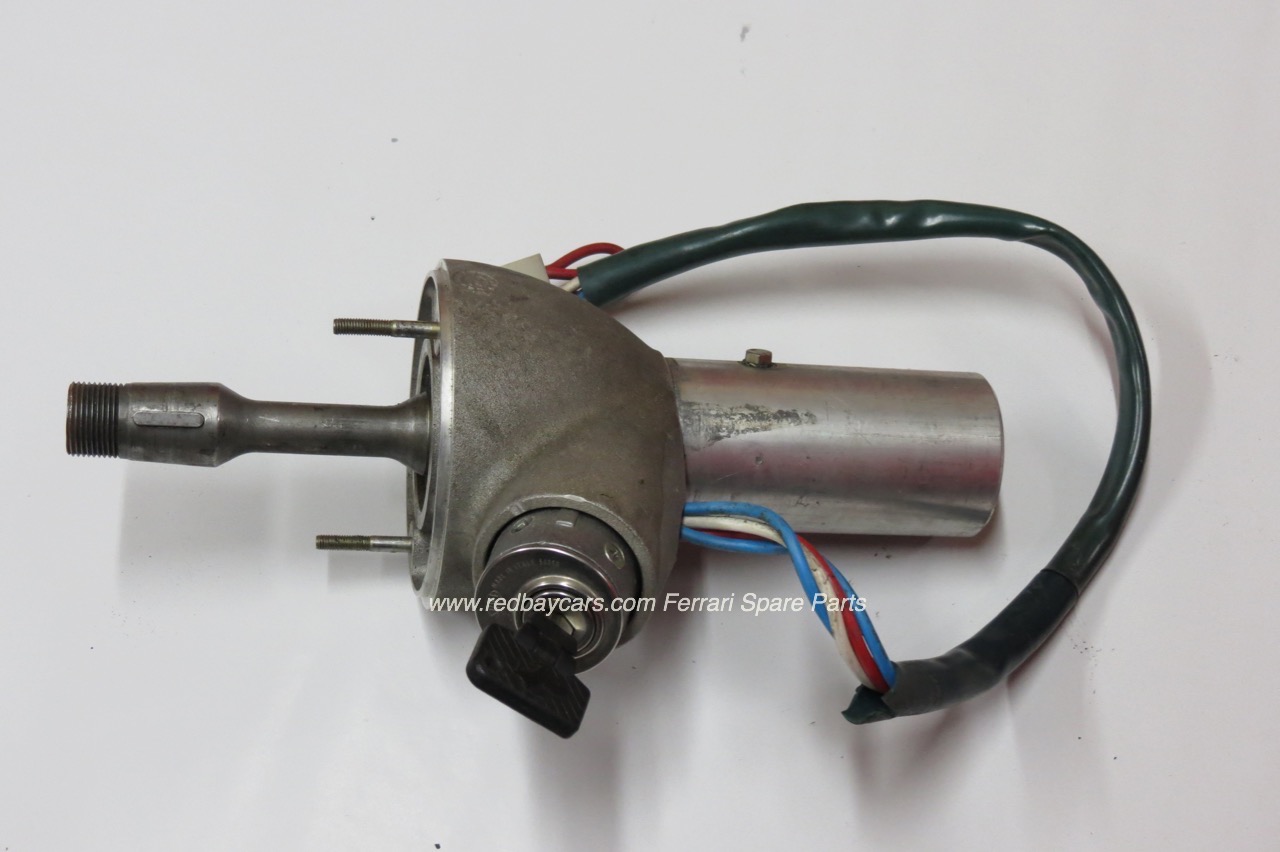

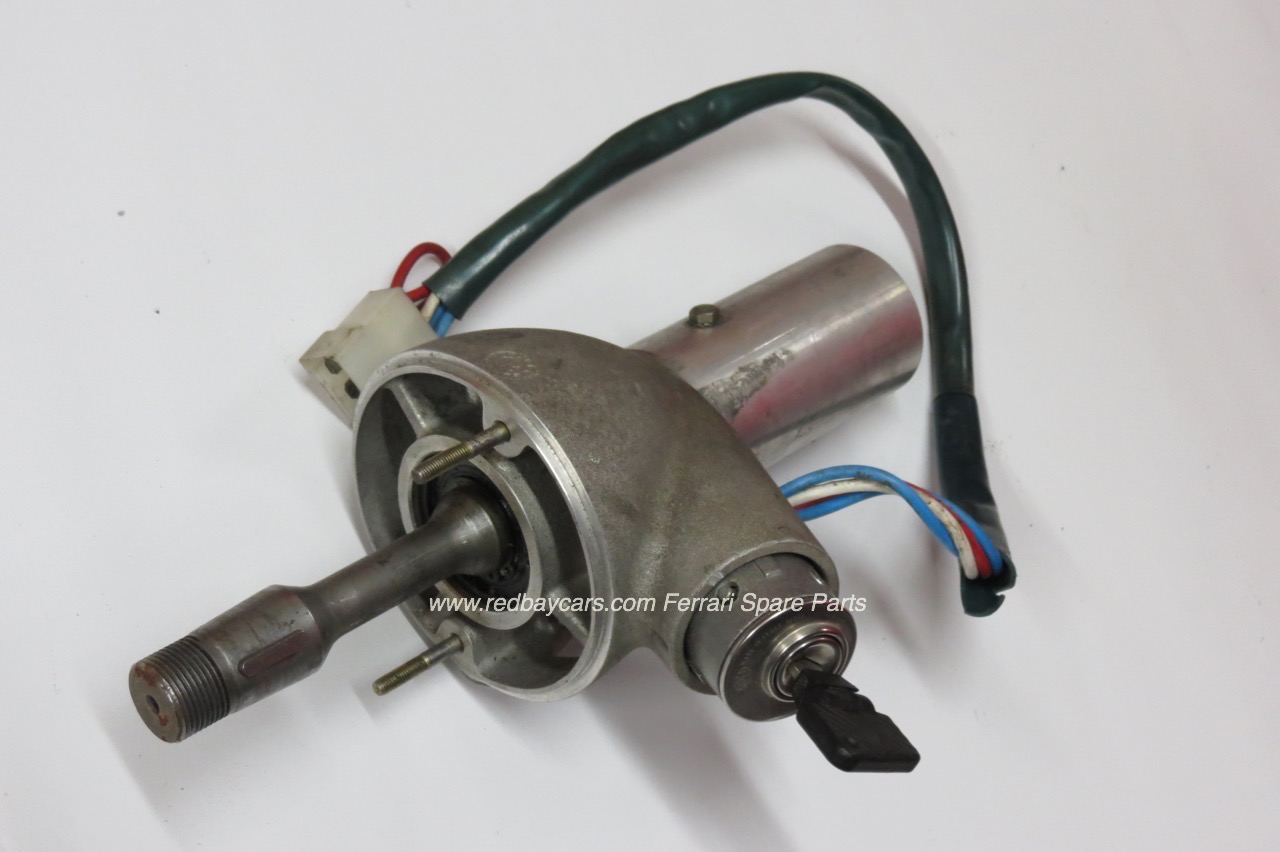

	Part nr 116488 hub for upper shaft and part nr 116533 upper steering shaft In very nice condition: upper shaft for steering column including the hub and the anti-theft device WITH KEY. Fits Ferrari 8, QV and 3.2. Check availability in the webshop Detailed pictures here, here and here		Complete steering box with linkage It is clear that this has been used before. It comes with both supports (we have many available) and ball joints on both sides. The renewables may have to be changed. Other than that, the unit appears to be in good condition. Email us in case you need more pictures. Fits the Mondial 8, QV and 3.2 range. Check availability in the webshop Detailed pictures here, here and here

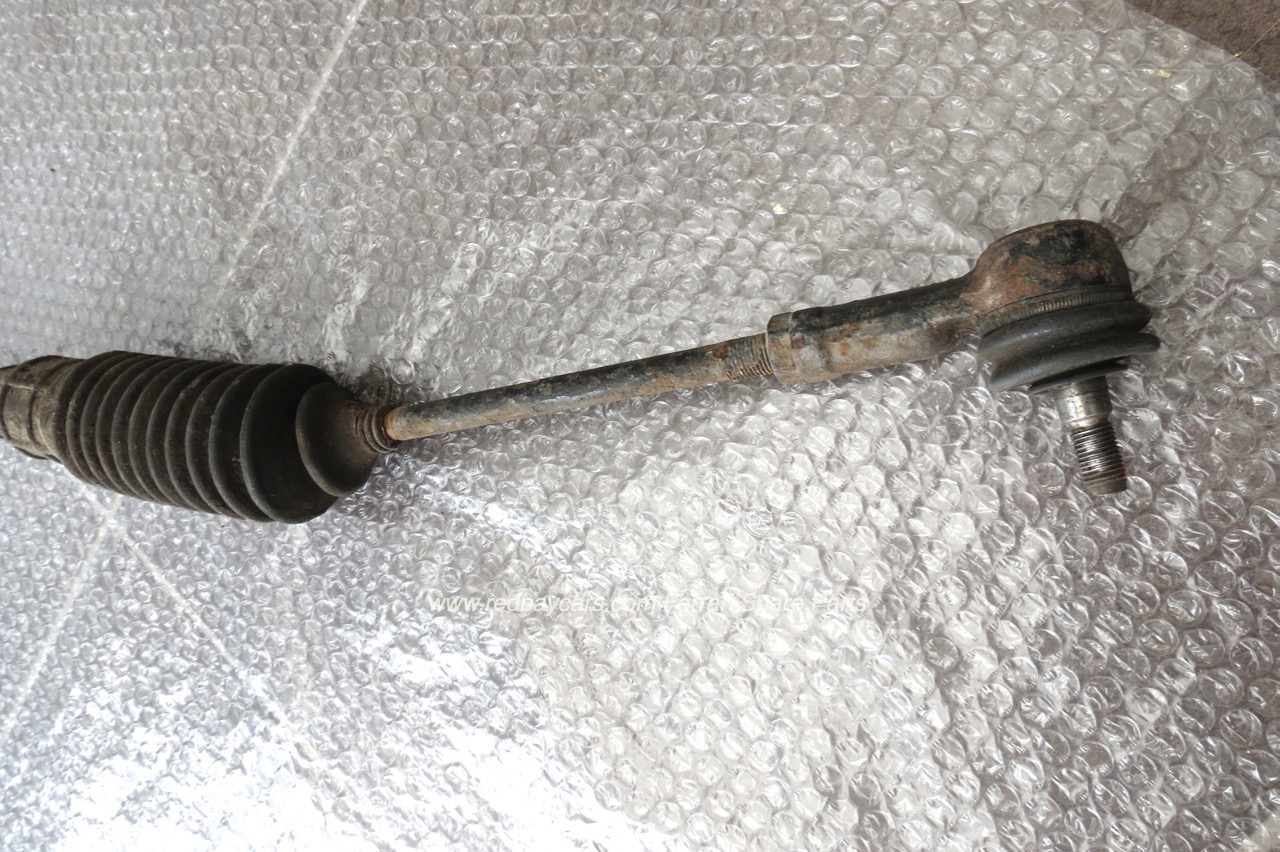

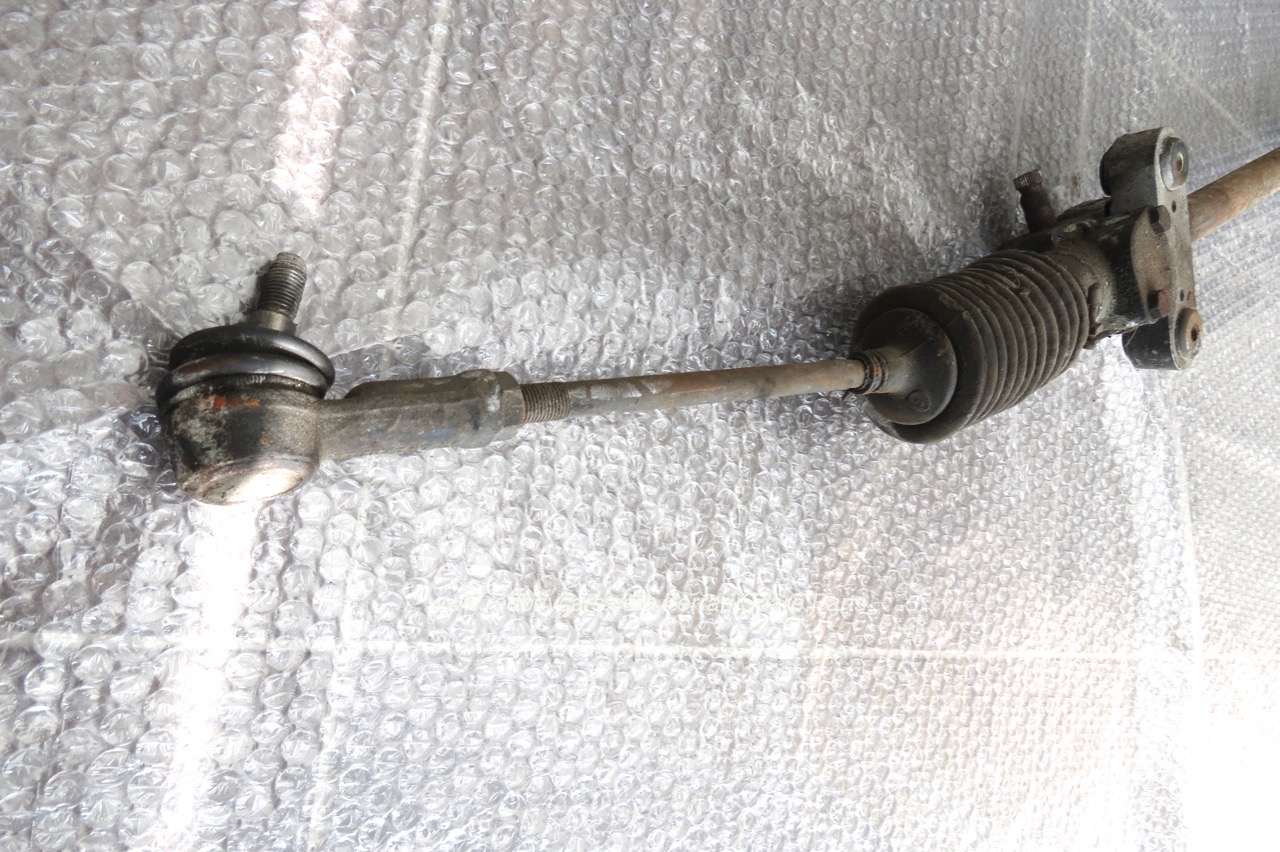

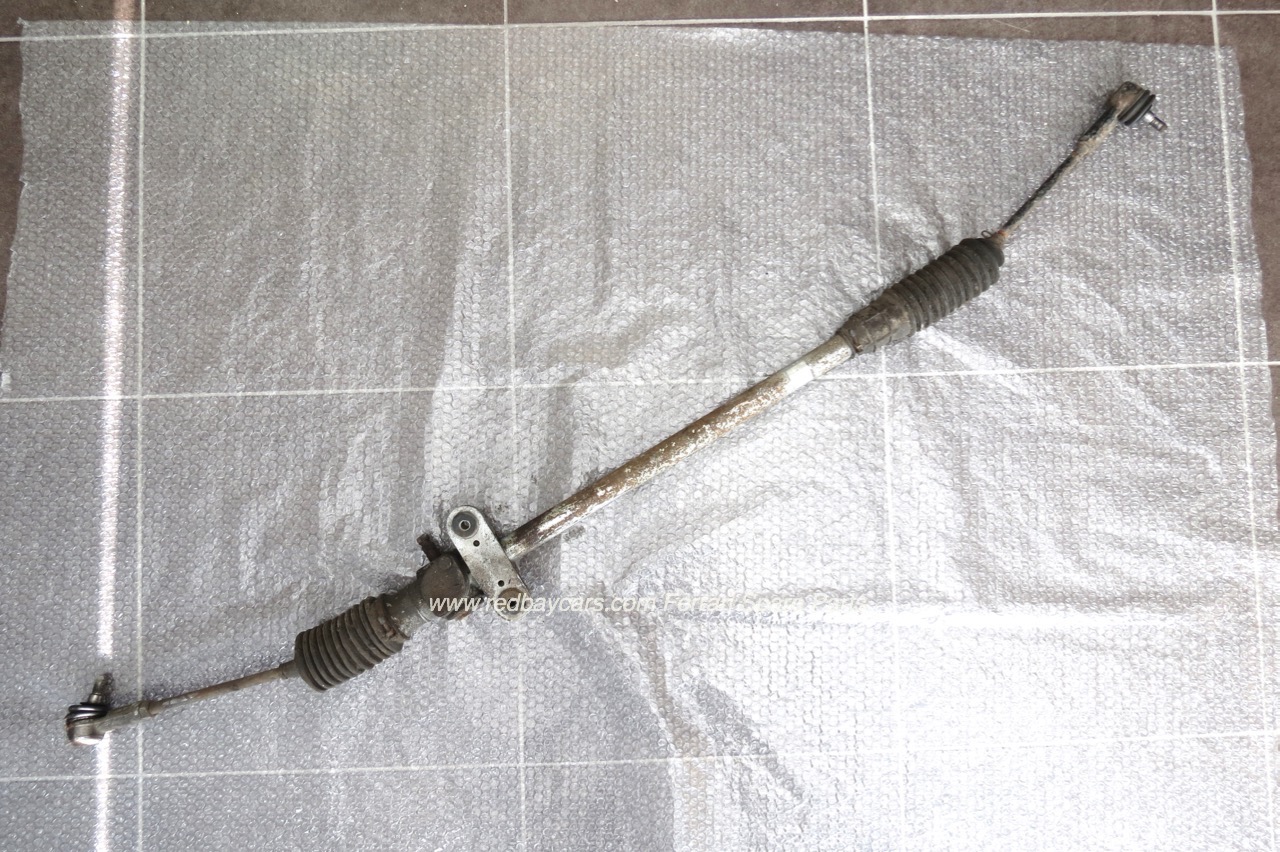

	Steering Rack Boot M/TR/288GTO Part nr 115990 RH and 115989 LH A new rubber boot for the steering rack Check availability in the webshop Detailed pictures here and here

Brakes, suspension and clutch

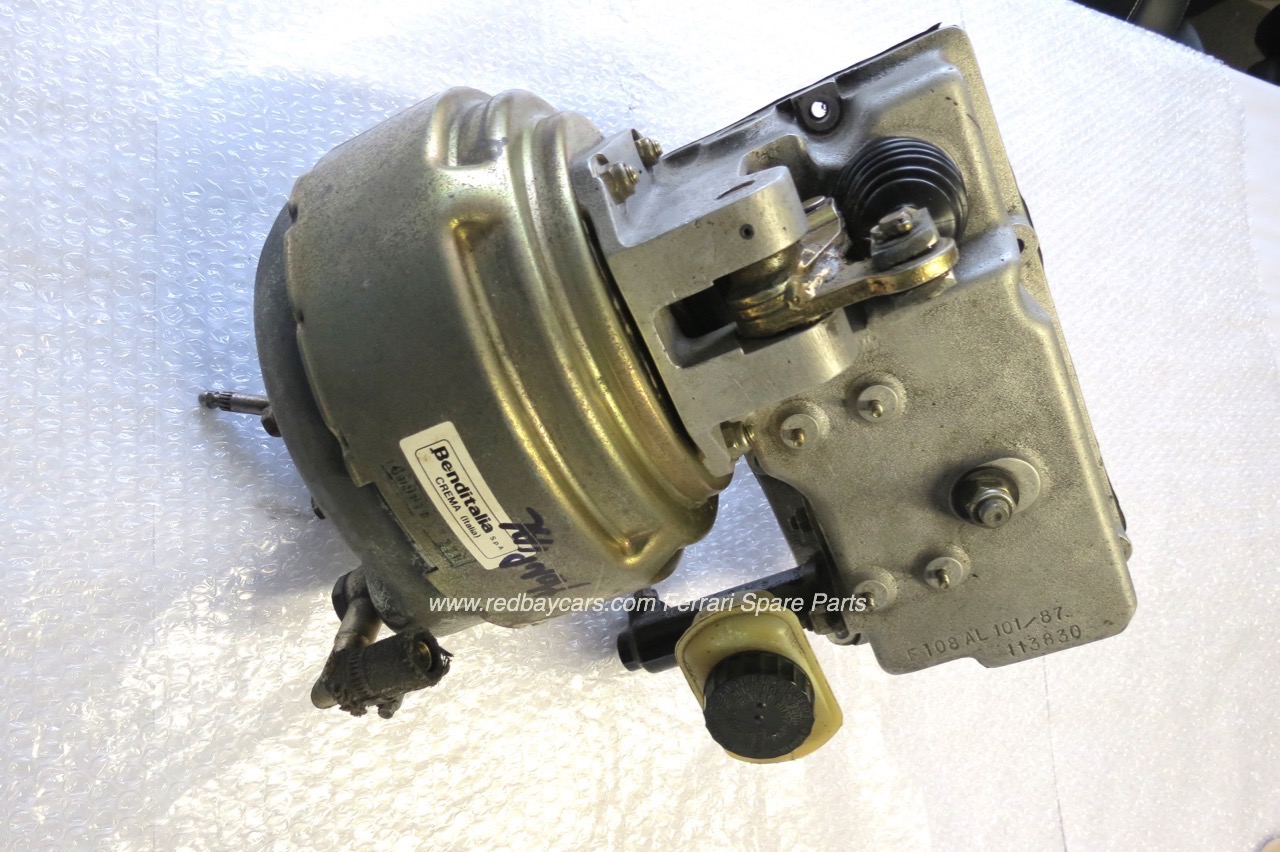

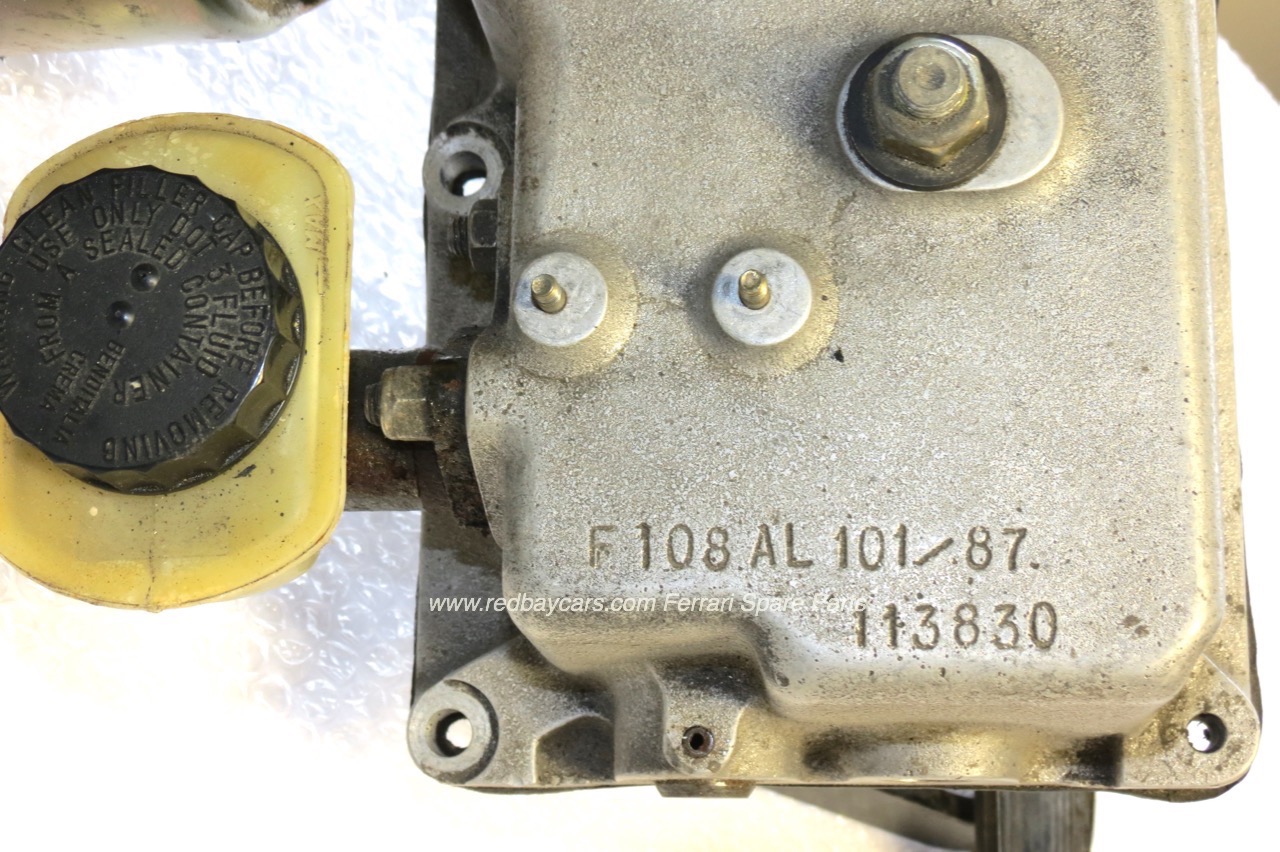

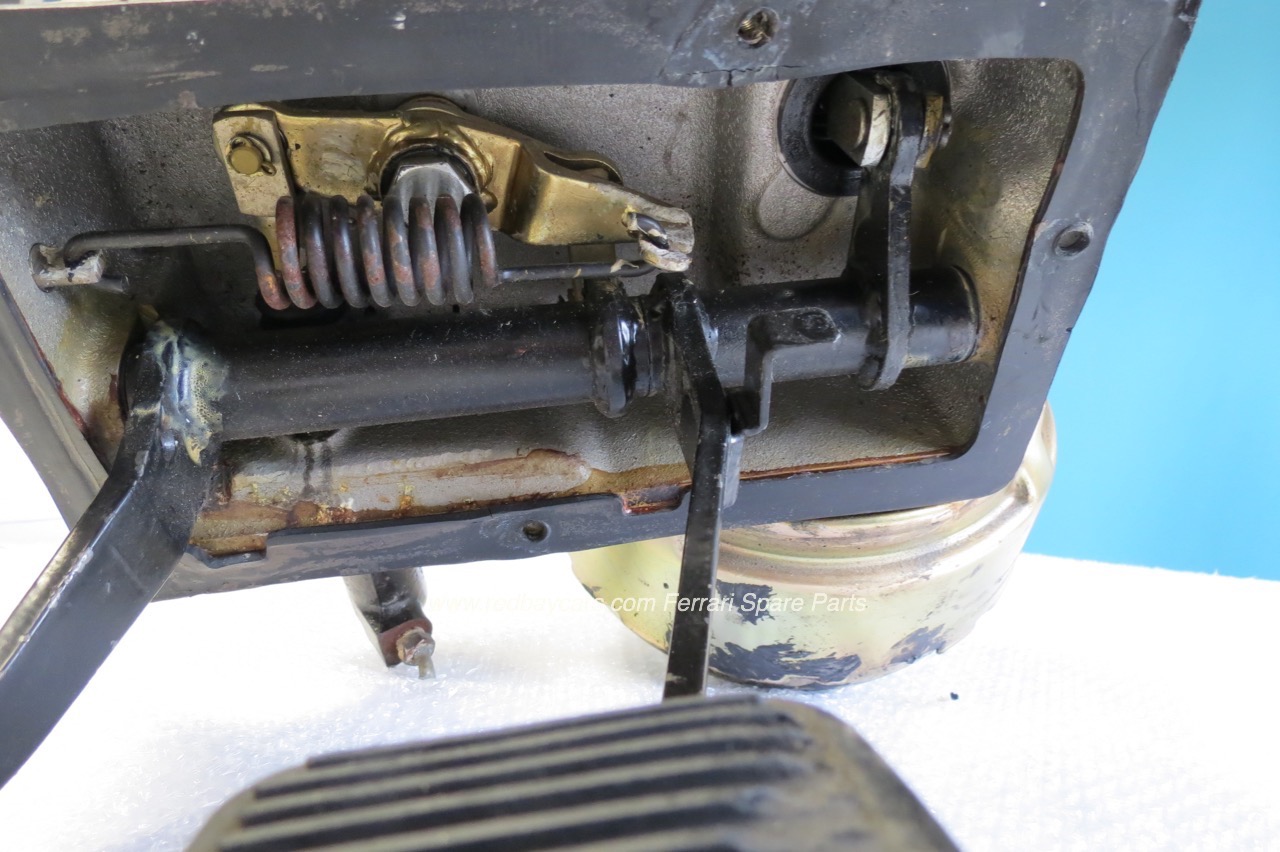

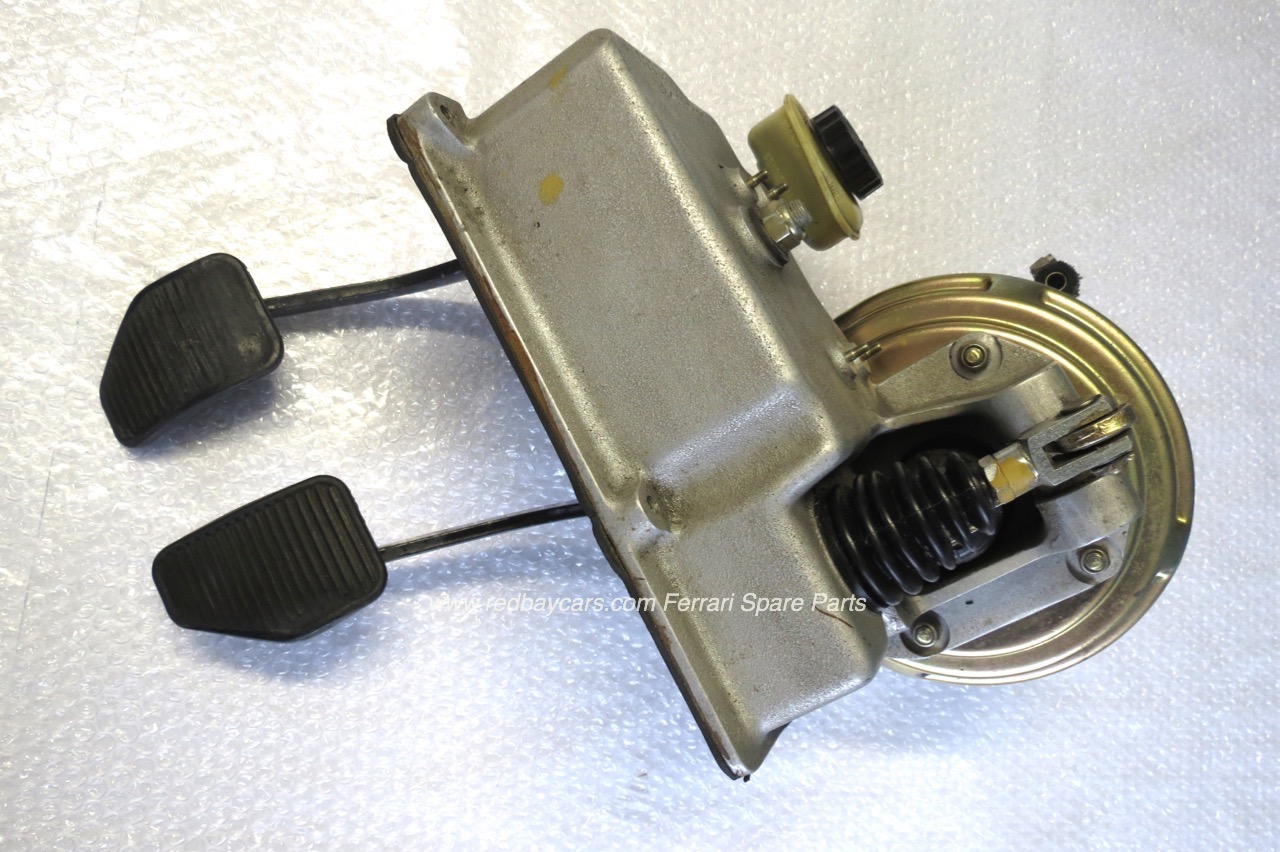

	Part nr 113830 Pedal housing and part nr 151471 Brake booster + 116093 master cylinder, brake and clutch pedal - FULL ASSEMBLY RHD Consists of the housing, brake booster, master cylinder and pedals. In great condition, including springs, bolts and washers and clutch fluid reservoir. Check availability in the webshop Detailed pictures here, here, here and here		Part nr 114313 Handbrake lever In good condition, leather may need some small attention (repaint), but mechanics are fine. Check availability in the webshop Detailed pictures here and here

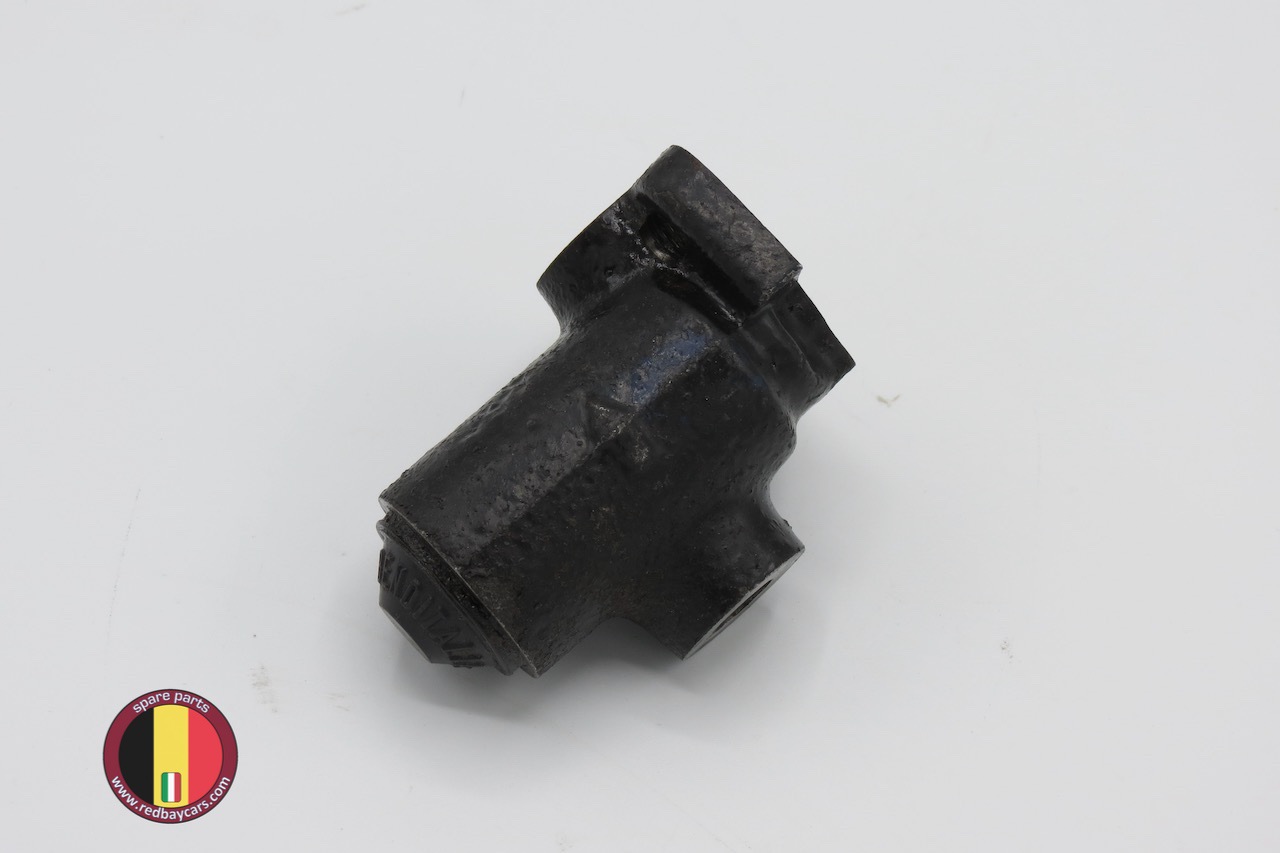

	Silentbloc Bush Part nr 111616 New - fits many models. Check availability in the webshop Detailed picture here		Brake Equaliser Valve M8/MQV Part nr 116316 In perfect working order. Fits the Mondial 8 and QV Check availability in the webshop Detailed picture here

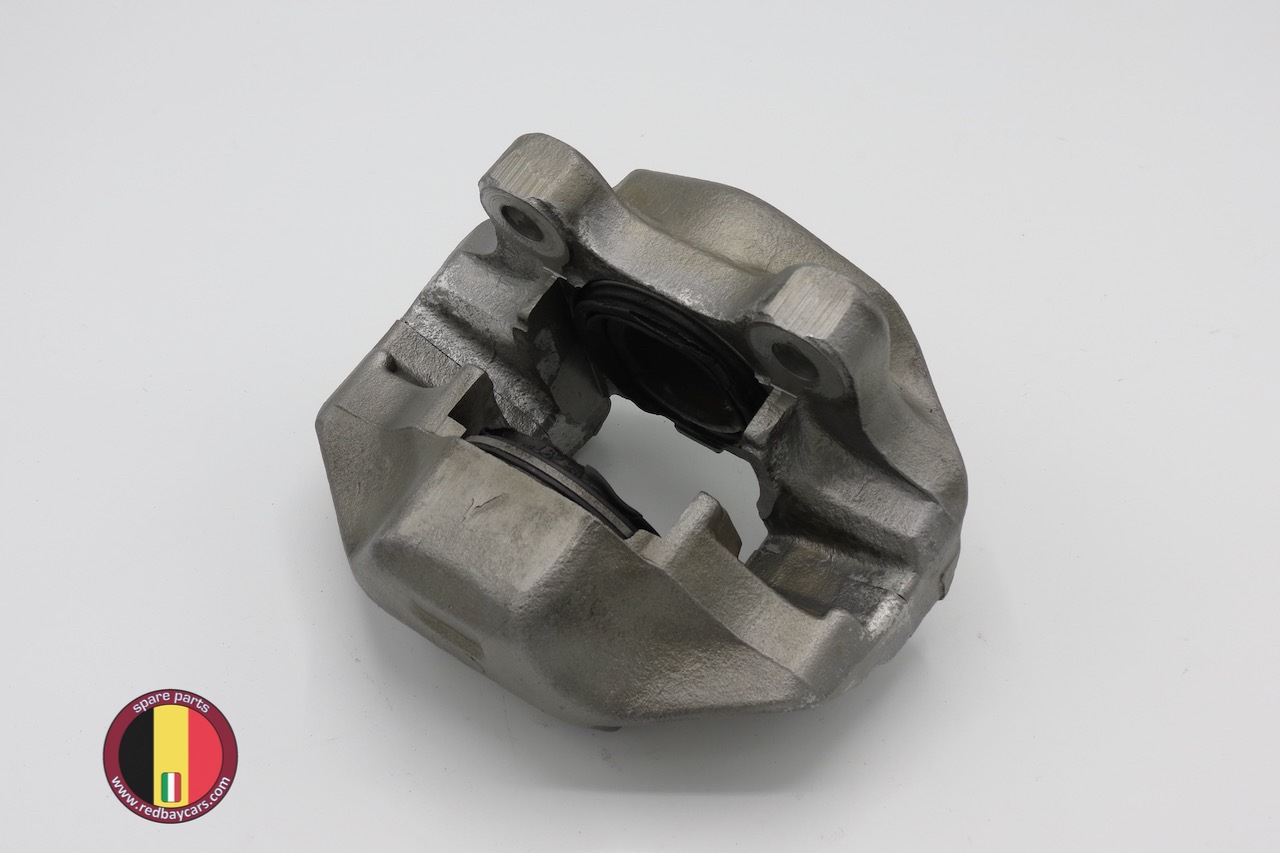

	Lower Fork for Front Suspension Part nr 112807 In perfect shape with the nut. Fits the Mondial 8 and QV, the Testarossa (model year 1990), 208 Turbo and 328. Check availability in the webshop Detailed picture here		Brake Caliper Front M8/MQV Part nr 115768 RH and 115769 LH This is an authentic brake caliper made by ATE and fits the Mondial 8 and QV models up to chassis nr 43011. It is in very good shape, but the pistons need to be replaced. Check availability in the webshop Detailed pictures here and here
	Rod Link Part nr 114691 This is a link in perfect shape. Used, but very clean with the bolts and rubber grommets with bushes included. Fits many models. Check availability in the webshop Detailed pictures here and here		Rear Brake Calipers Set Part nr 106360 RH and 106359 LH Check availability and options in the webshop Detailed pictures here and here
	Upper Ball Joint Part nr 116280 Upper ball joint for the front steering knuckle. Rubber looks like new, head turns as it should. Check availability in the webshop Detailed pictures here and here		Lower Ball Joint Part nr 133944 A refurbished ball joint in excellent shape, fits many models. The head turns as it should. Including the nut. Check availability in the webshop Detailed pictures here and here

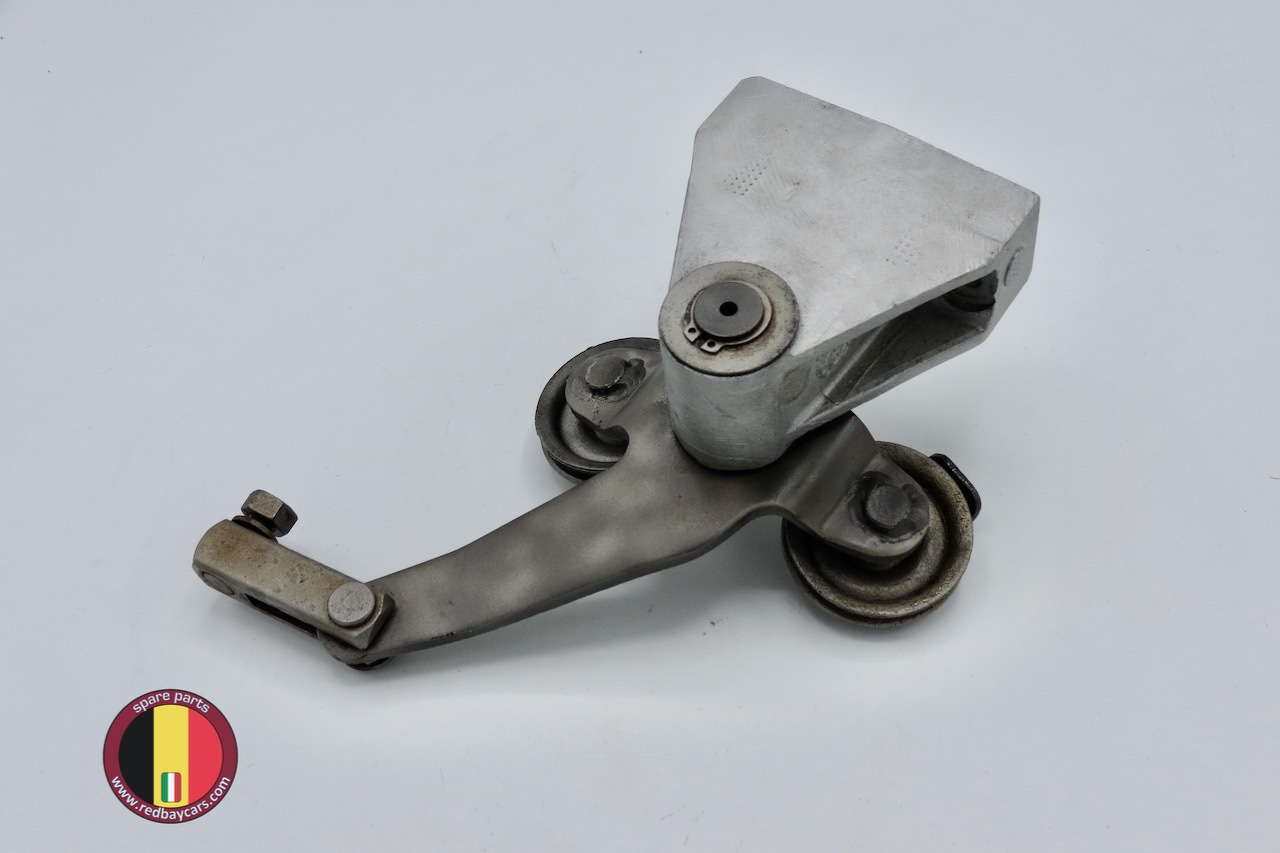

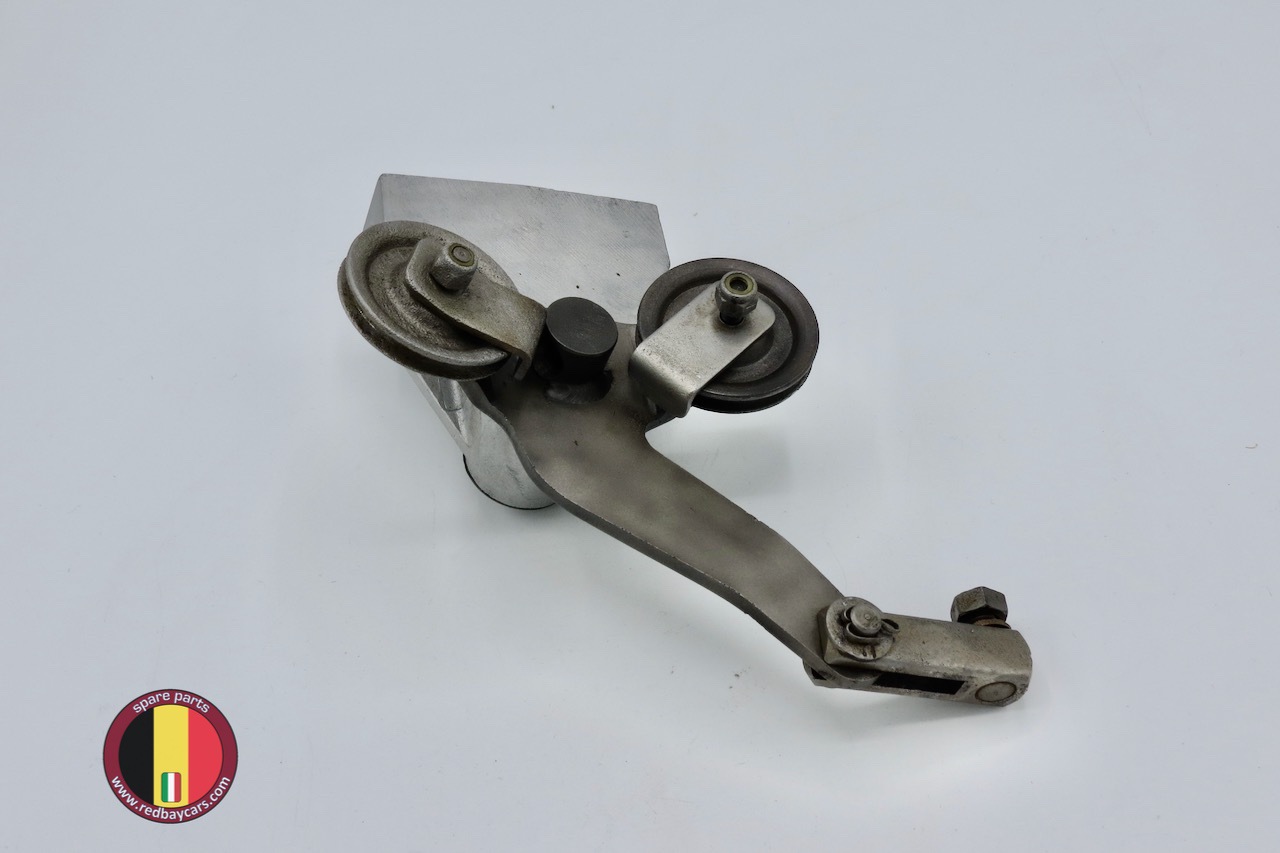

	Handbrake Support Assembly Part nr 106415 This is a complete rear handbrake lever assembly that fits below the engine on a 308GT4, 308, Mondial QV and Mondial 8 model. It includes both pulleys, cable fork, lever, bolts and plates. For sale as 1 unit. Check availability in the webshop Detailed pictures here and here		Brake Indicator Valve Part nr 108803 / 127757 This is an authentic brake indicator valve made by BENDITALIA . It fits the 308GT4, all 308 models, the Mondial 8, QV and 3.2 and the Testarossa models. It was in perfect working order when removed. Check availability in the webshop Detailed pictures here and here
	CV Joint Bearing for Axle Part nr 103885 Although this bearing doesn't have its own part number according to the diagrams, we do sell these separately. These are new. You will need to apply grease before using it. Check availability in the webshop Detailed picture here		Suspension Fork M8/MQV Part nr 112437 A fork that has been coated with a zinc layer recently. In used, but excellent shape. Dimensions: width outer sides of fork: 58mm, bolt length: 78mm, bolt thickness: 14mm Check availability in the webshop Detailed picture here

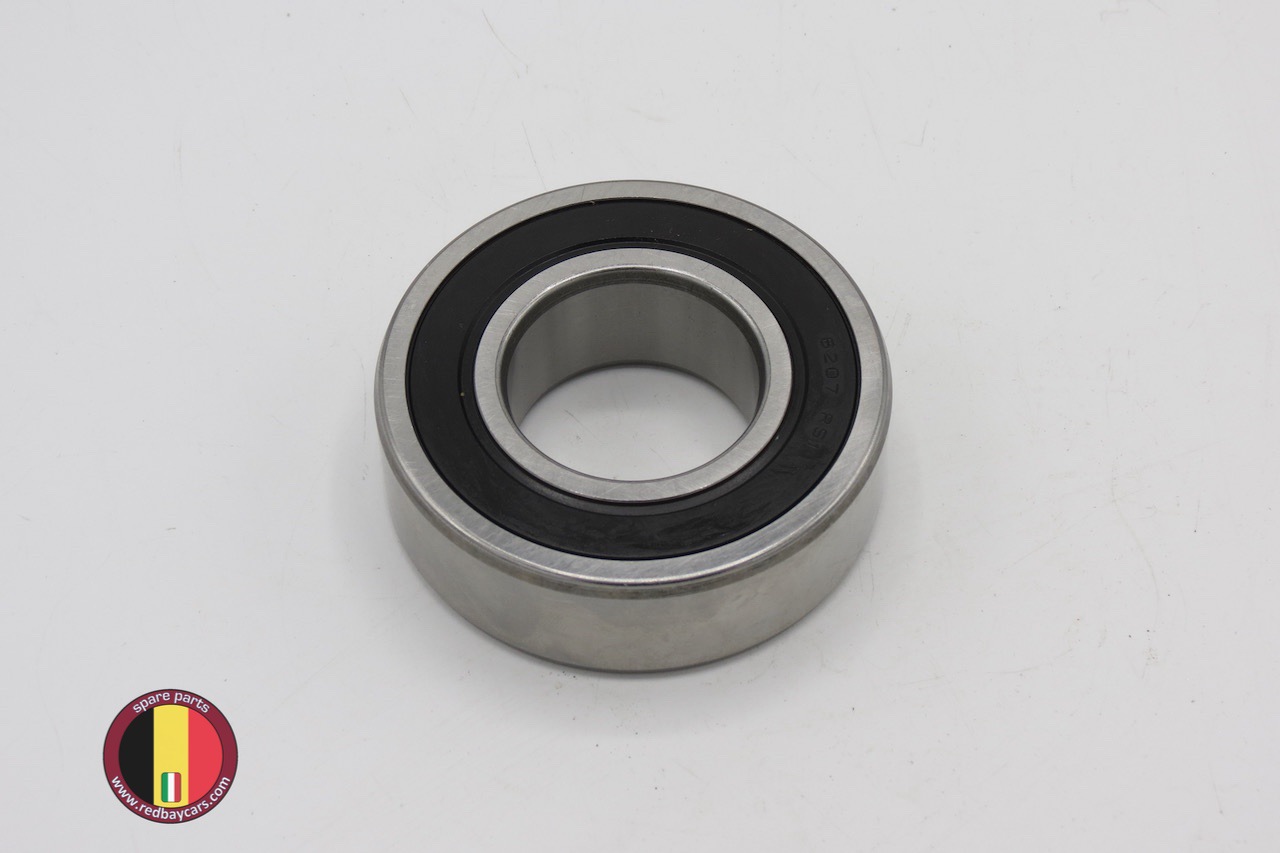

	Rear Hub Bearing Part nr 101221 A new bearing made by SKF. Dimensions: inner 45mm, outer 85mm Check availability in the webshop Detailed picture here		Rear Hub Bearing Part nr 101220 A new hub bearing made by SNR. Outer diameter: 72mm, inner diameter 35mm Check availability in the webshop Detailed picture here

Electrics

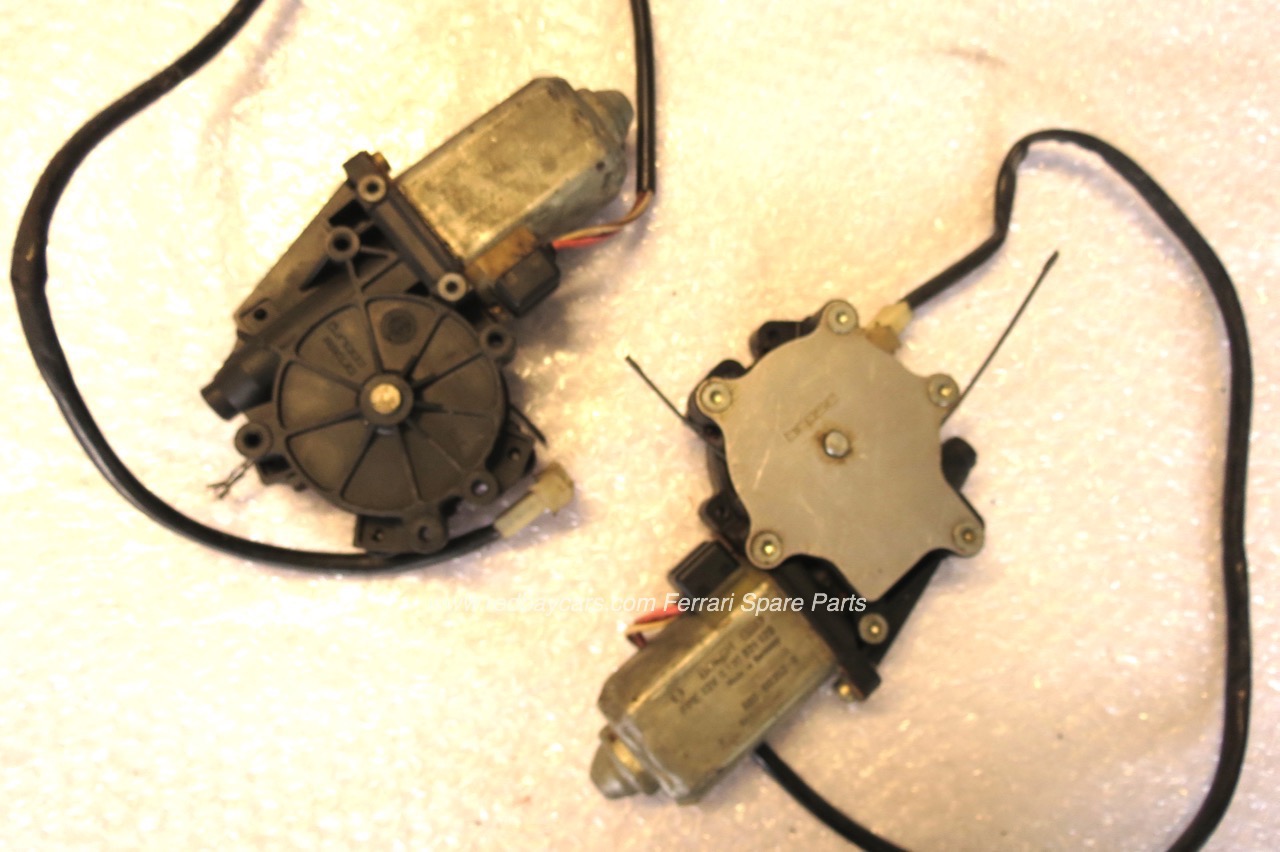

	Part nr 60595200 Check control display In very nice condition, no scuffs. Very hard to find! Check availability in the webshop Detailed picture here		Part nr 60551800 Left window regulator and part nr 60551700 right window regulator In good condition, guide cables have been cut, but we include a set of extra cables. Also fit the Mondial Quattrovalvole. Price: 150 euro each Detailed picture here

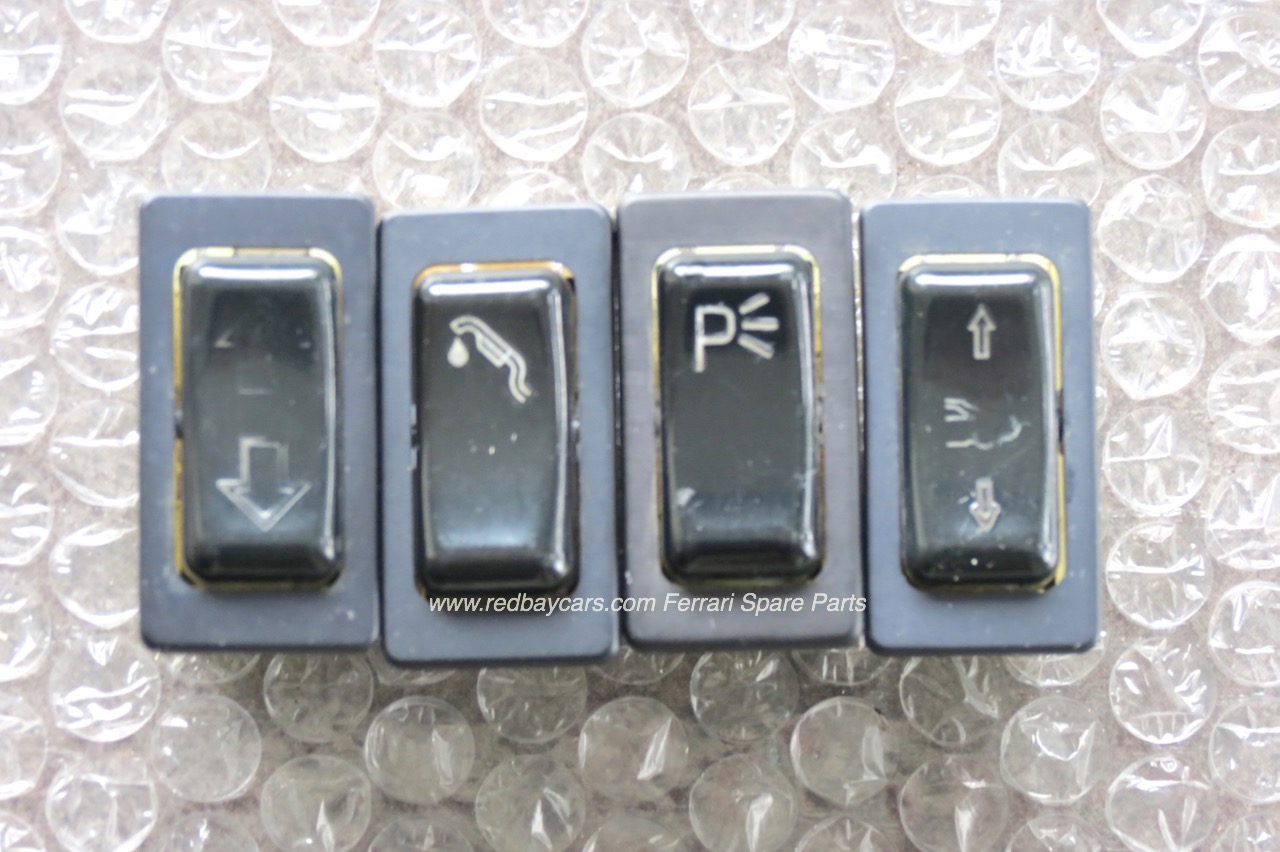

	Various switches These switches are all in good working condition. The labels have faded over the years. Other switches are also available, look at the pages for Mondial QV and Mondial 3.2 Check availability in the webshop Detailed picture here		Electric Lid Opener Solenoid Part nr 60868600 We have these new, made by the correct Italian manufacturer and also as 2nd hand. The new units can be used for both the glovebox and the fuel cap. The 2nd hand can only be used for the glovebox. All working perfectly. Check availability in the webshop Detailed picture here

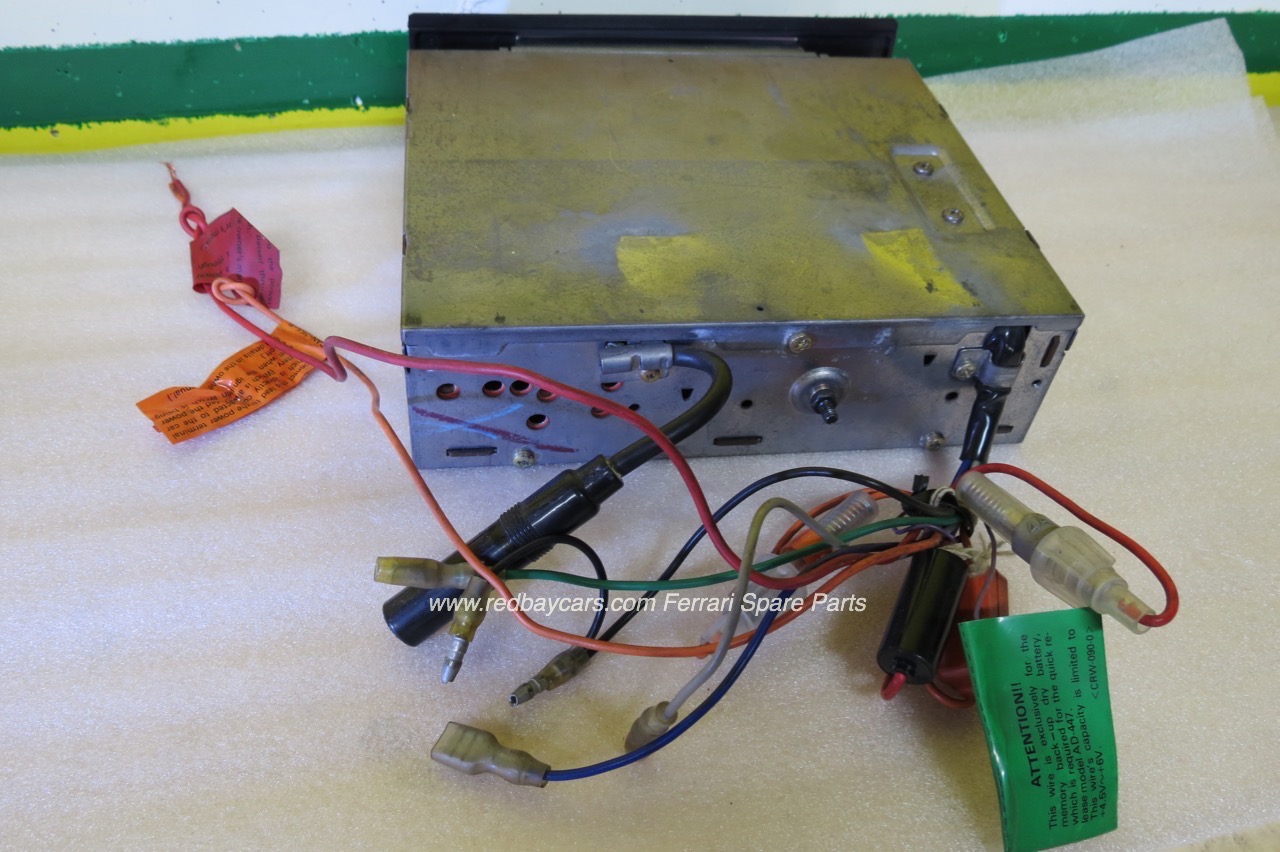

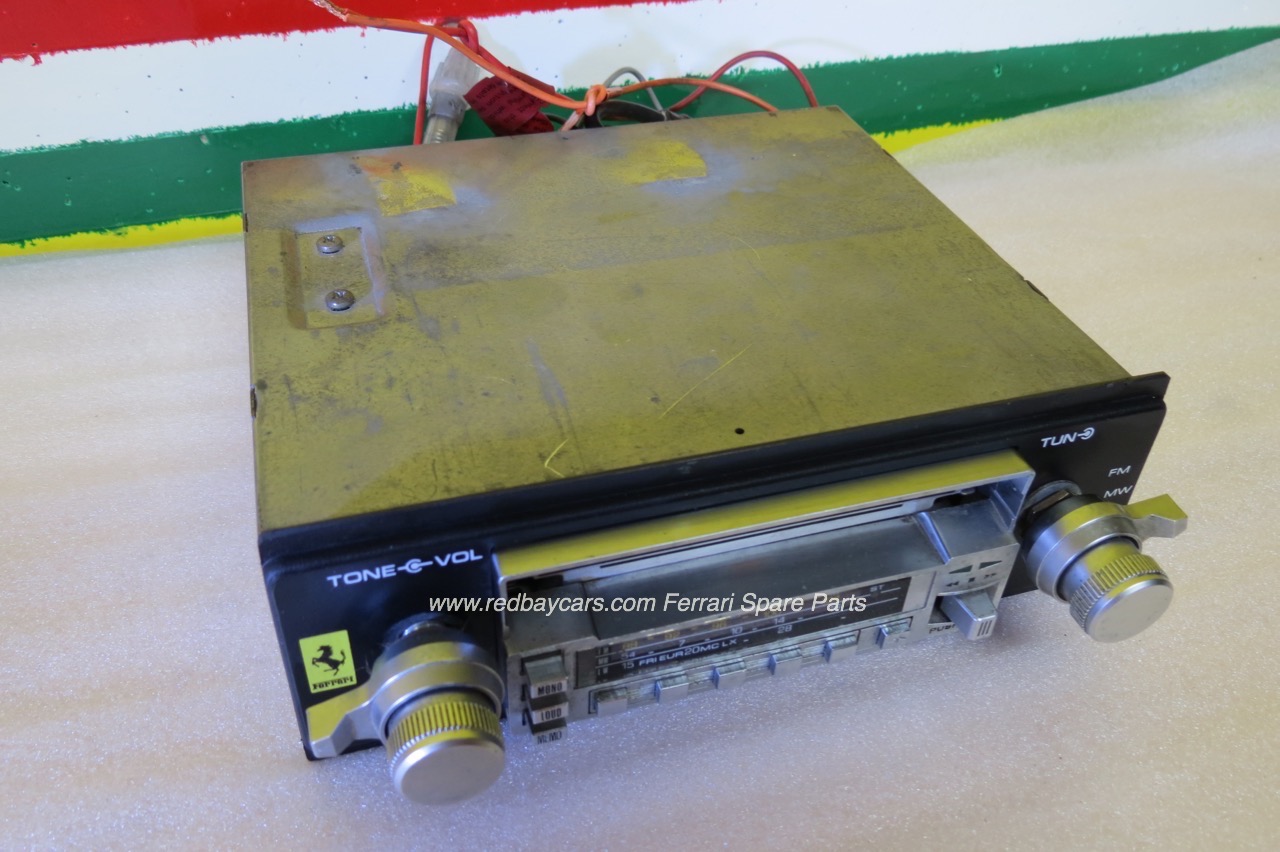

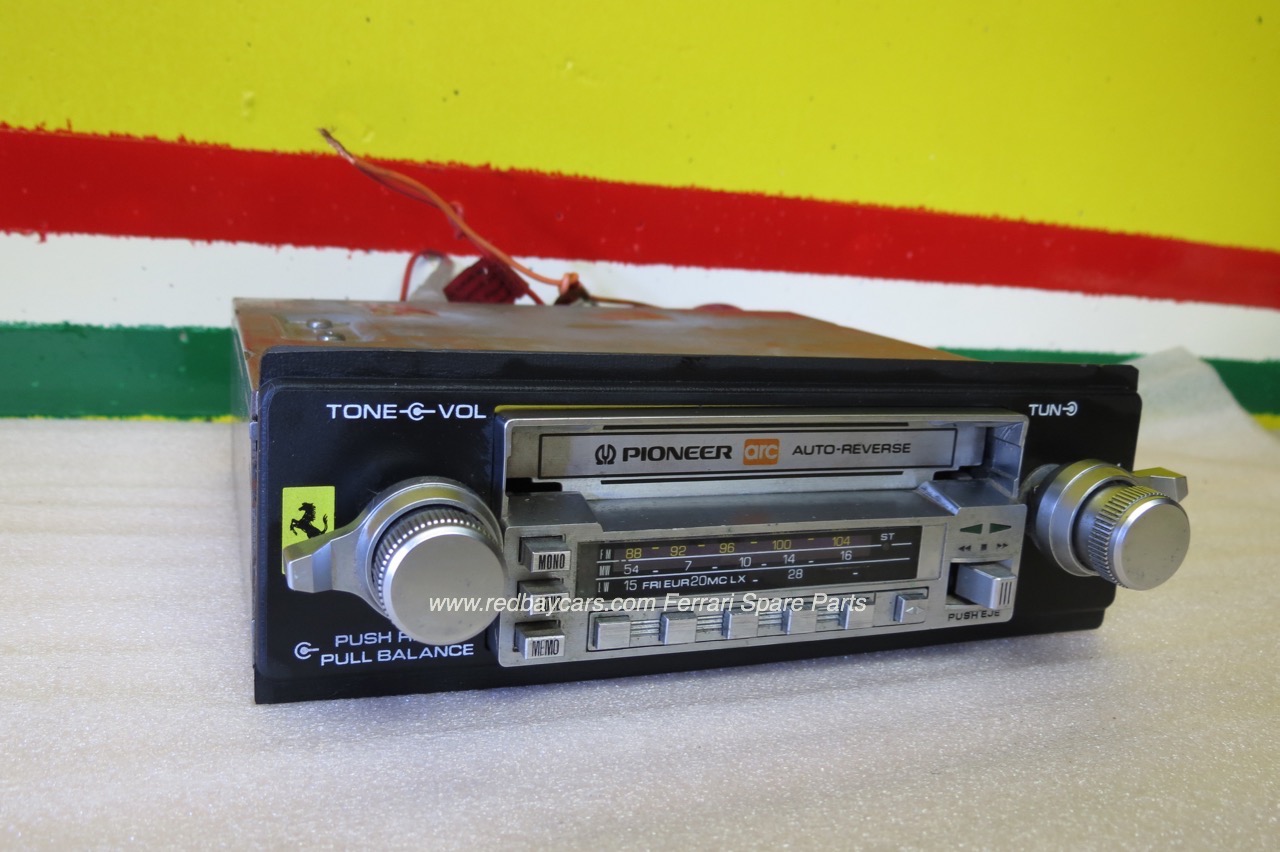

	Authentic Pioneer radio !!! This is an extremely rare find and certainly in this condition: looking awesome and working great! Both receiver and cassette deck play as they should, both speaker connections work. Includes all original cables. out of stock currently Detailed pictures here, here, here and here		Part nr 60331204 RH and Part nr 60331303 LH Headlamp Motor Headlamp motor with protective rubber. Working properly. We also have some available without the protective rubber, please enquire. LH: Check availability in the webshop RH: Check availability in the webshop Detailed pictures here and here
	Control for Fuel Level Gauge M Part nr 116045 Frankly, impossible to find !!! We have one from a 13.000km Mondial 3.2 and was working well when removed. Mounting plate is included! Check availability in the webshop Detailed pictures here and here		Parking and Direction Light M8/QV Part nr 60870700 Wonderful reproduction of the front bumper light that fits the Mondial 8 and QV. Very clear lens for better visibility. Looks awesome! Check availability in the webshop Detailed pictures here, here and here

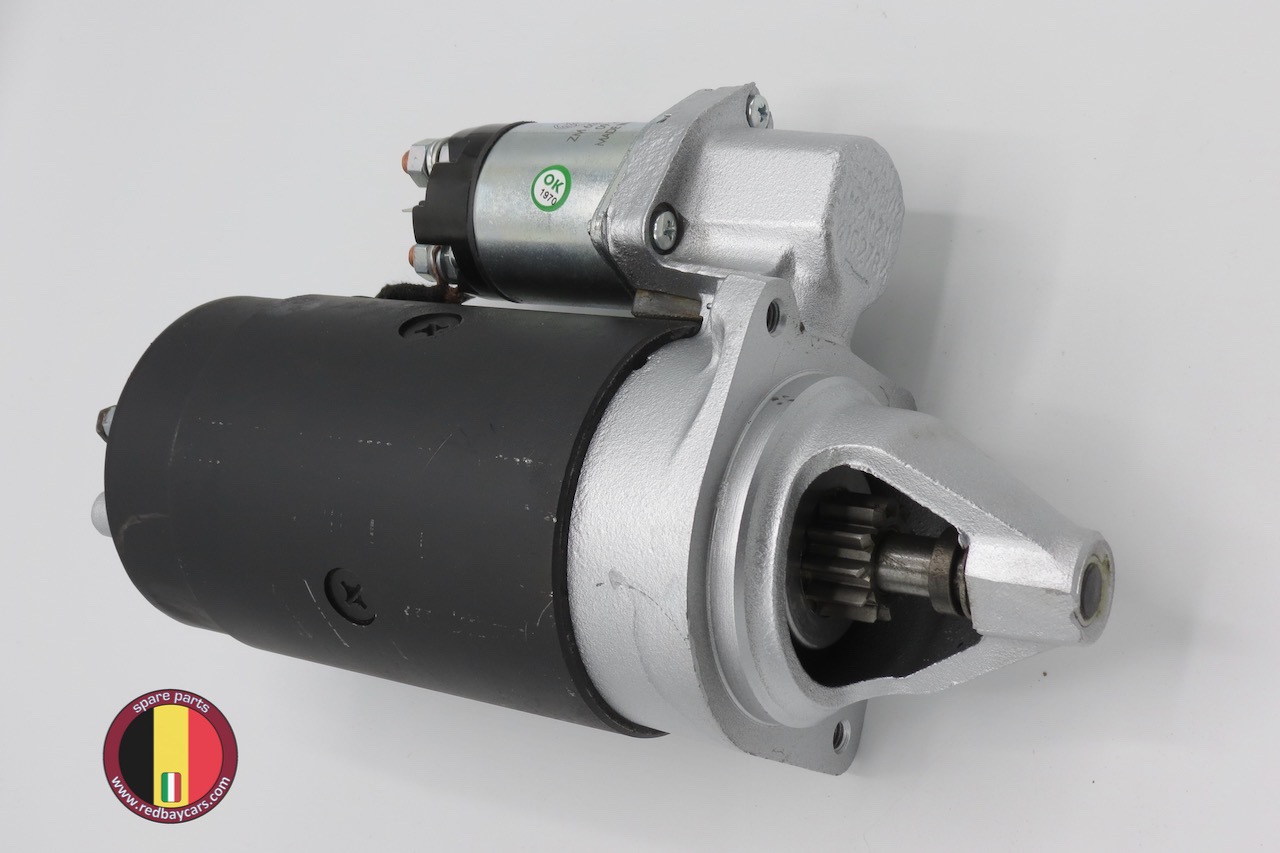

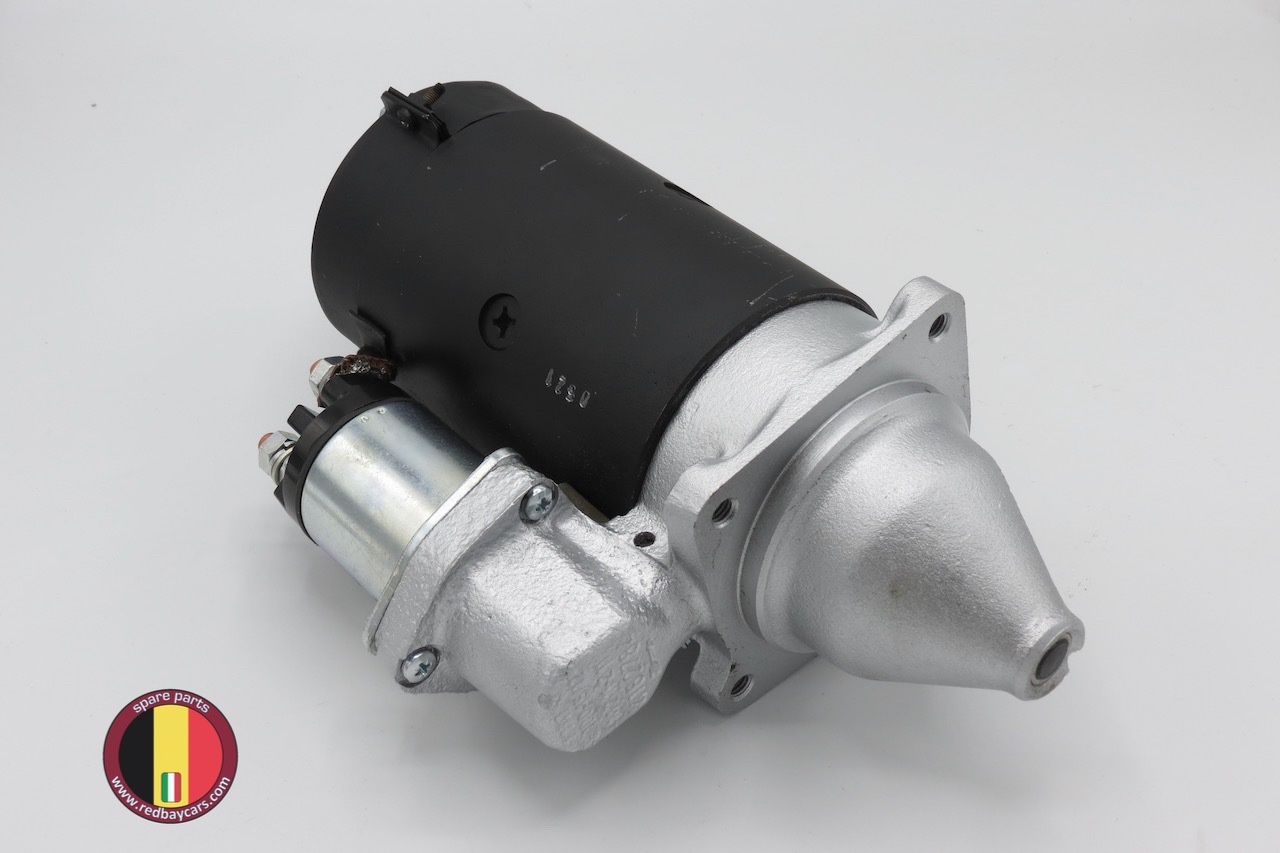

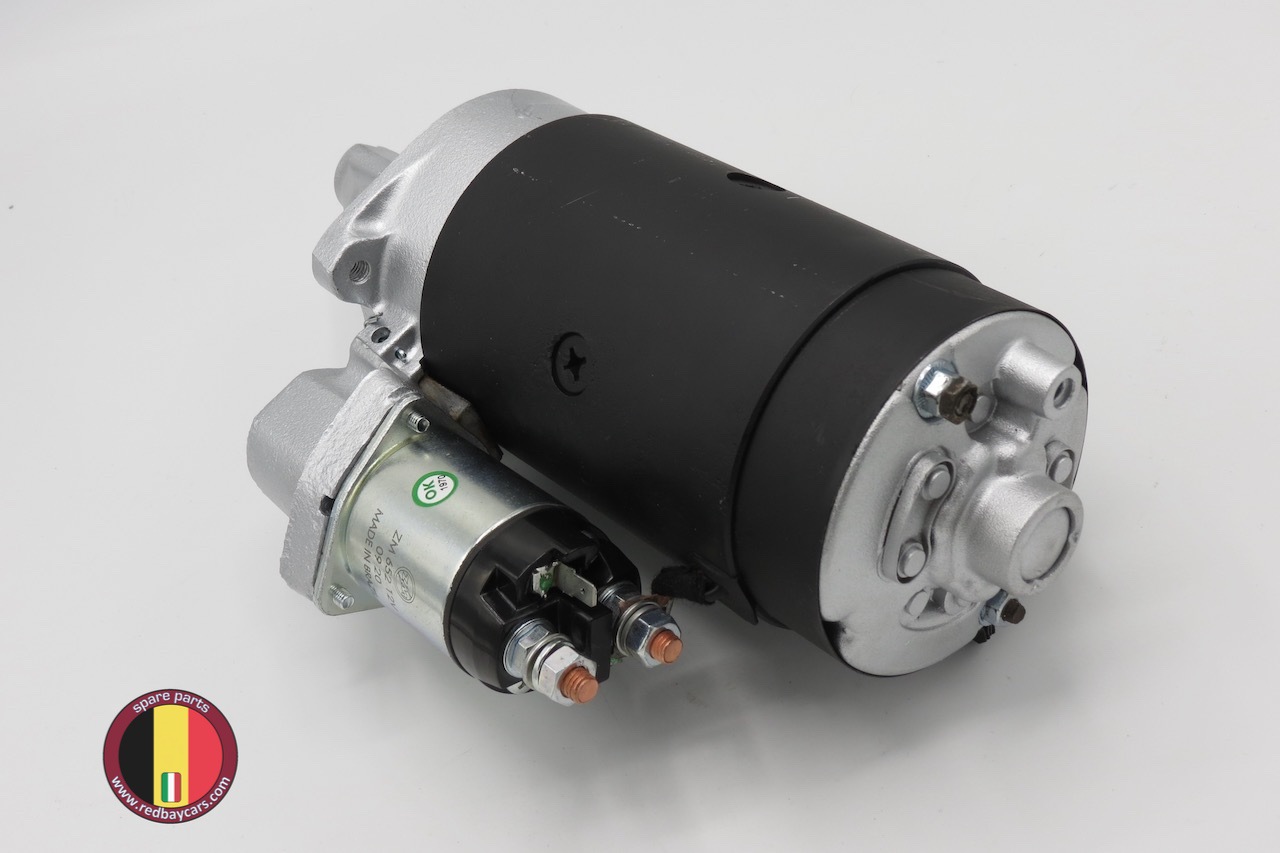

	Starter Motor M8/MQV Part nr 103959 A refurbished authentic starter motor (made by FIAT) for the Mondial QV and 8. Condition is like new, fully rebuilt. Very heavy! Model 4162784 Check availability in the webshop Detailed pictures here, here and here

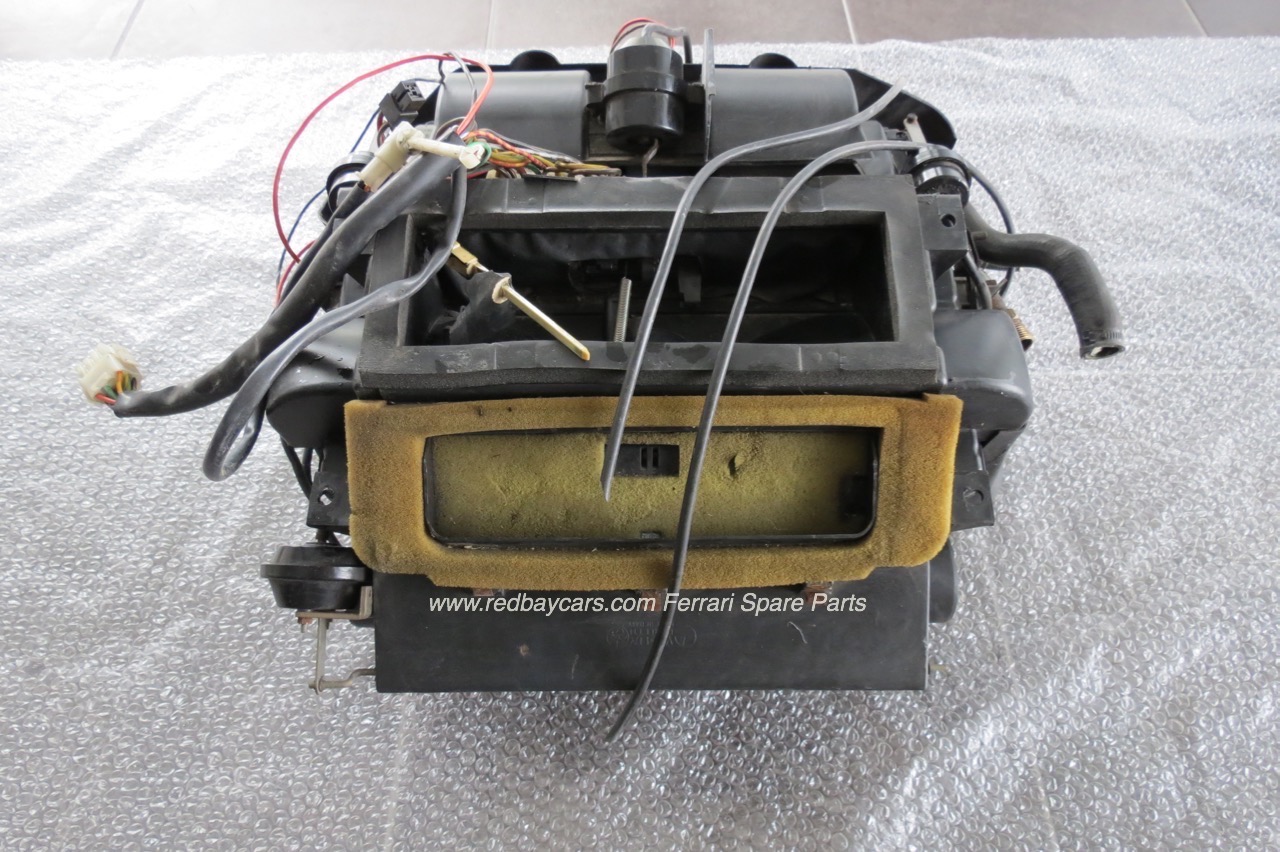

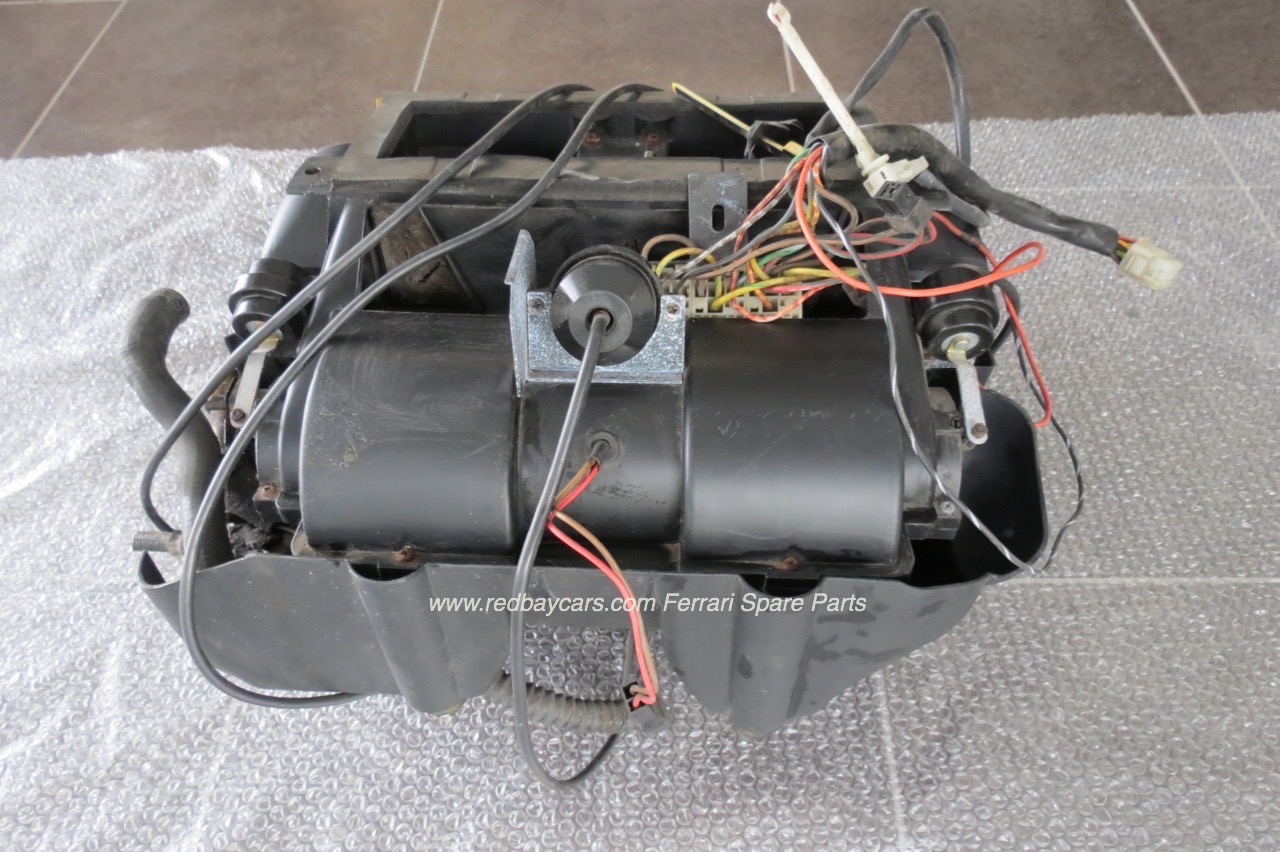

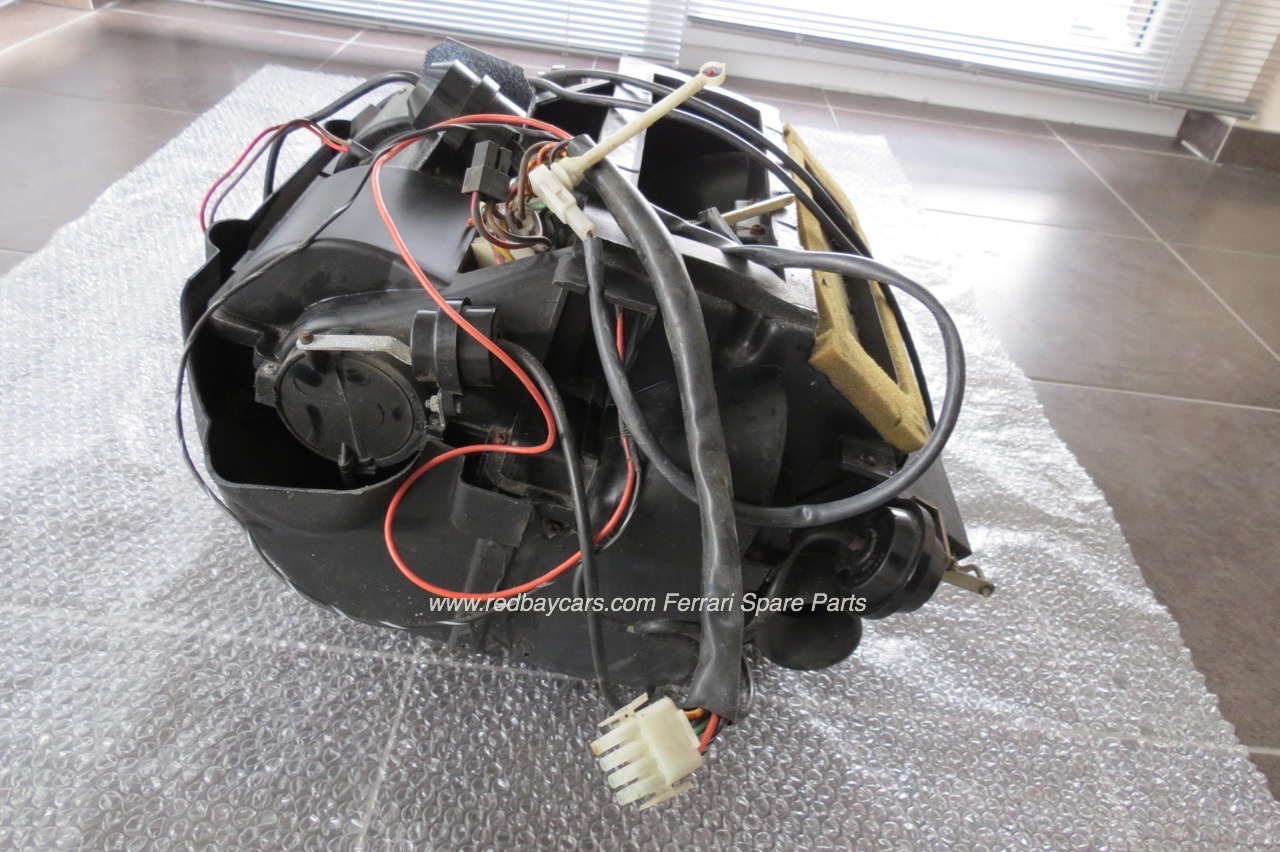

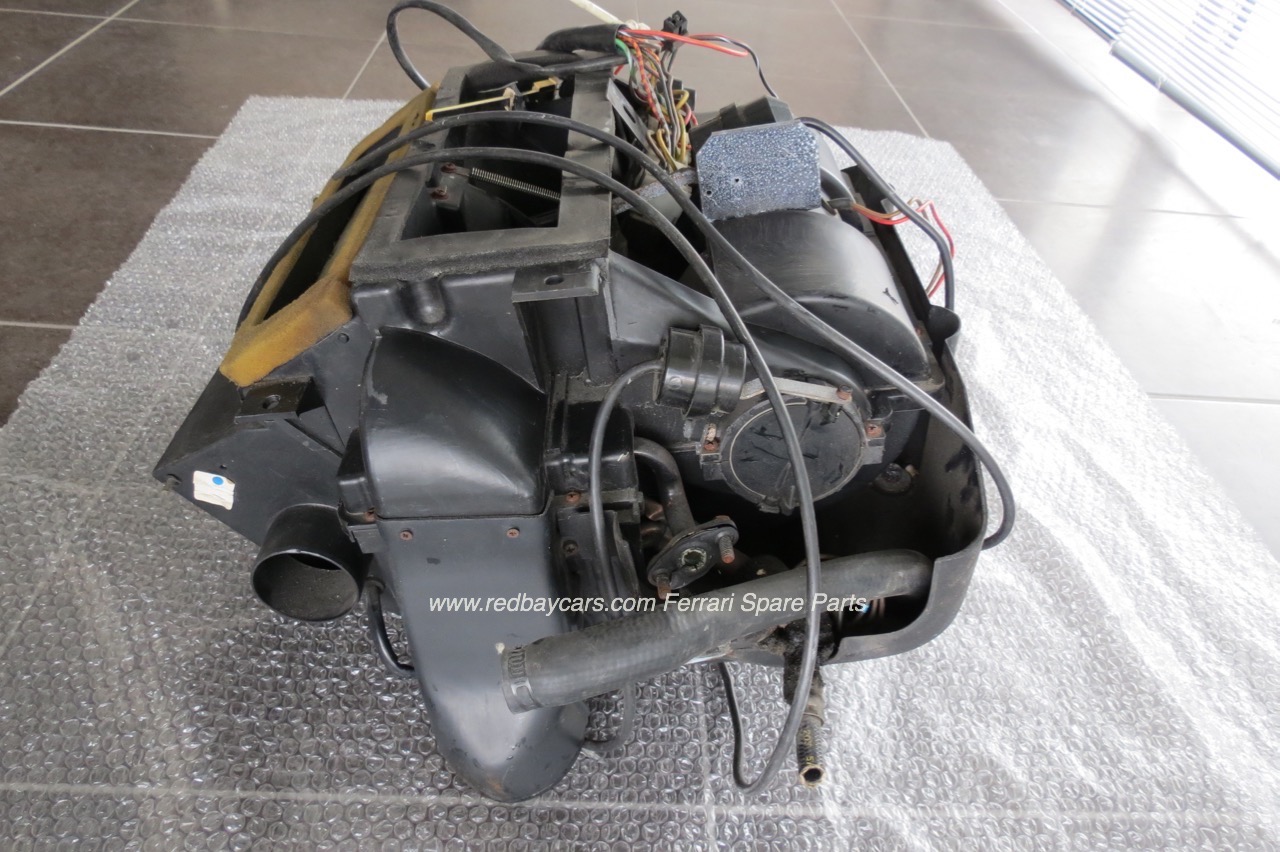

	Complete central heating/airco module This is for the entire block including sensors, vents and cables attached. Comes from a RHD Mondial 8. Insulating foam on the outside to be replaced. Check availability in the webshop Detailed pictures here, here, here and here		A/C Compressor TCCI Part nr 111222 This is a new - impossible to find - A/C compressor made by TCCI that fits many Ferrari models from early 70's to early 80's. More information on request. Check availability in the webshop Detailed pictures here, here, here and here

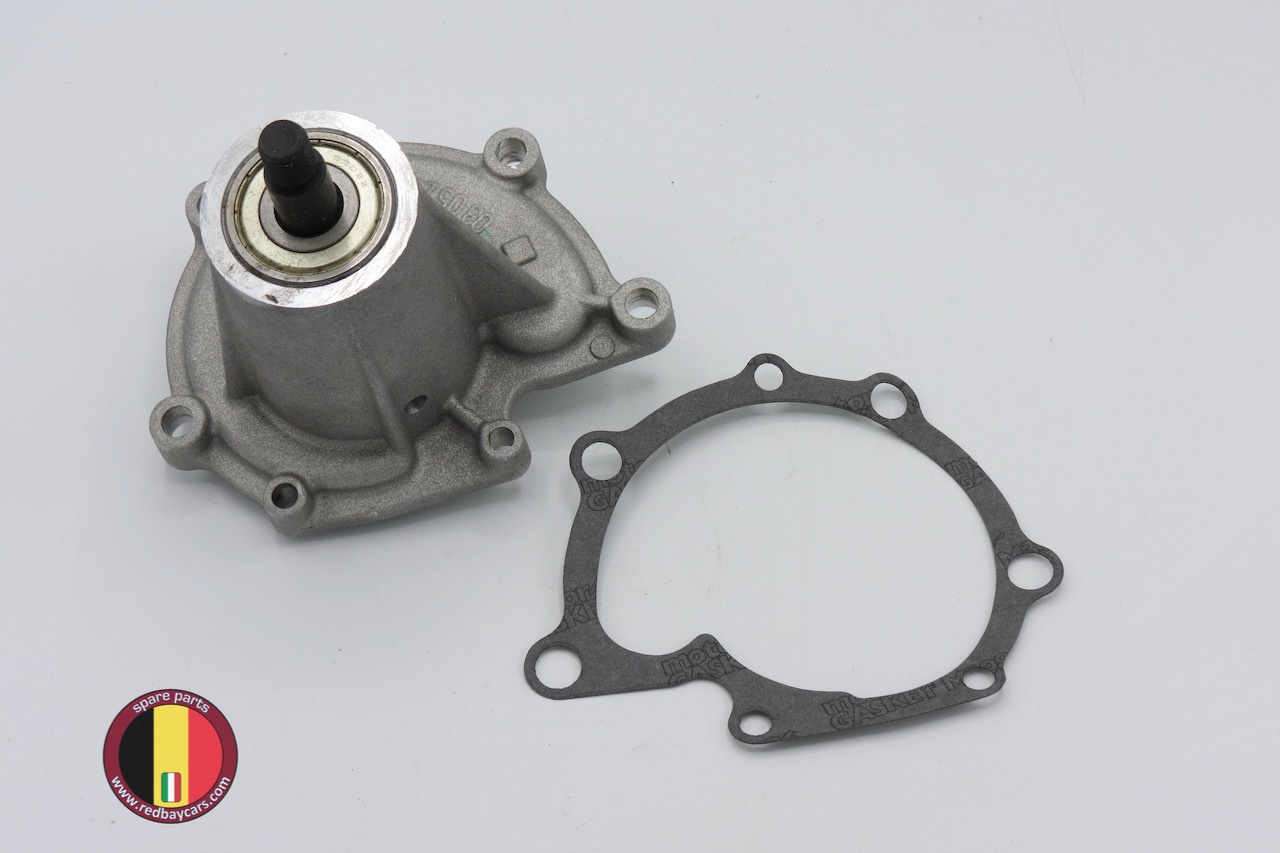

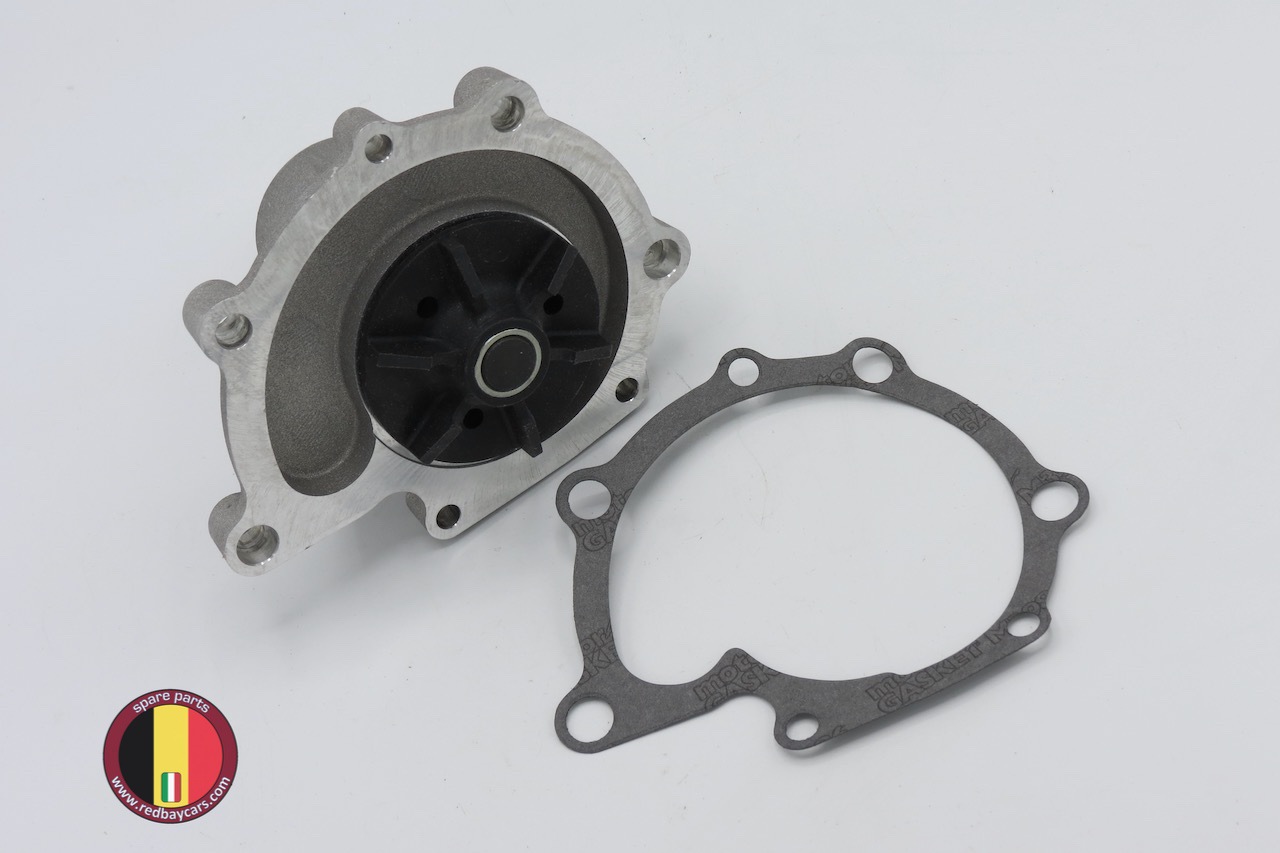

	Airco Dryer Delphi Part nr 129101 This is a new airco dryer made by DELPHI for the R134a gas. Fits many models. Check availability in the webshop Detailed picture here		Water Pump with Gasket Part nr 121255 A new water pump with the gasket. This fits all V8 engine models between 1976 and 1988. Check availability in the webshop Detailed pictures here and here

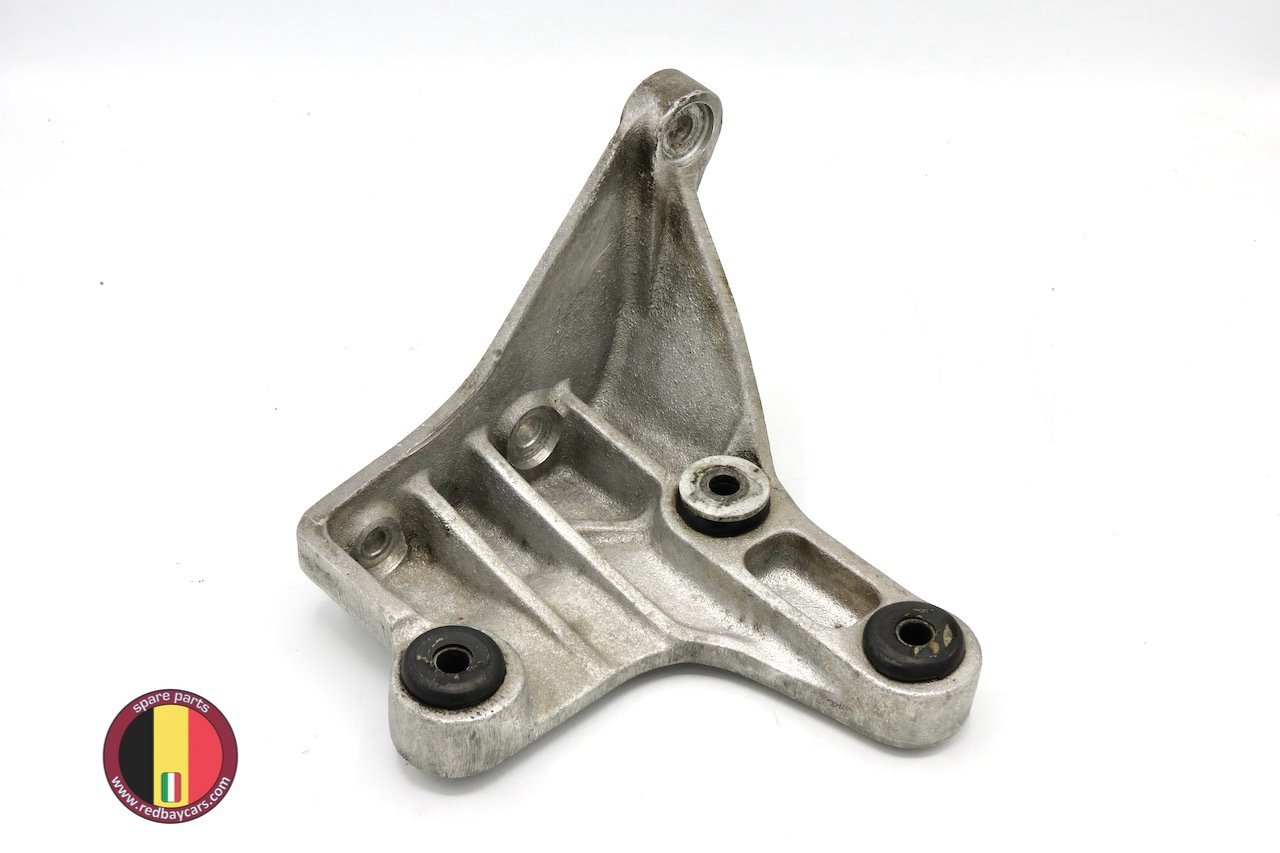

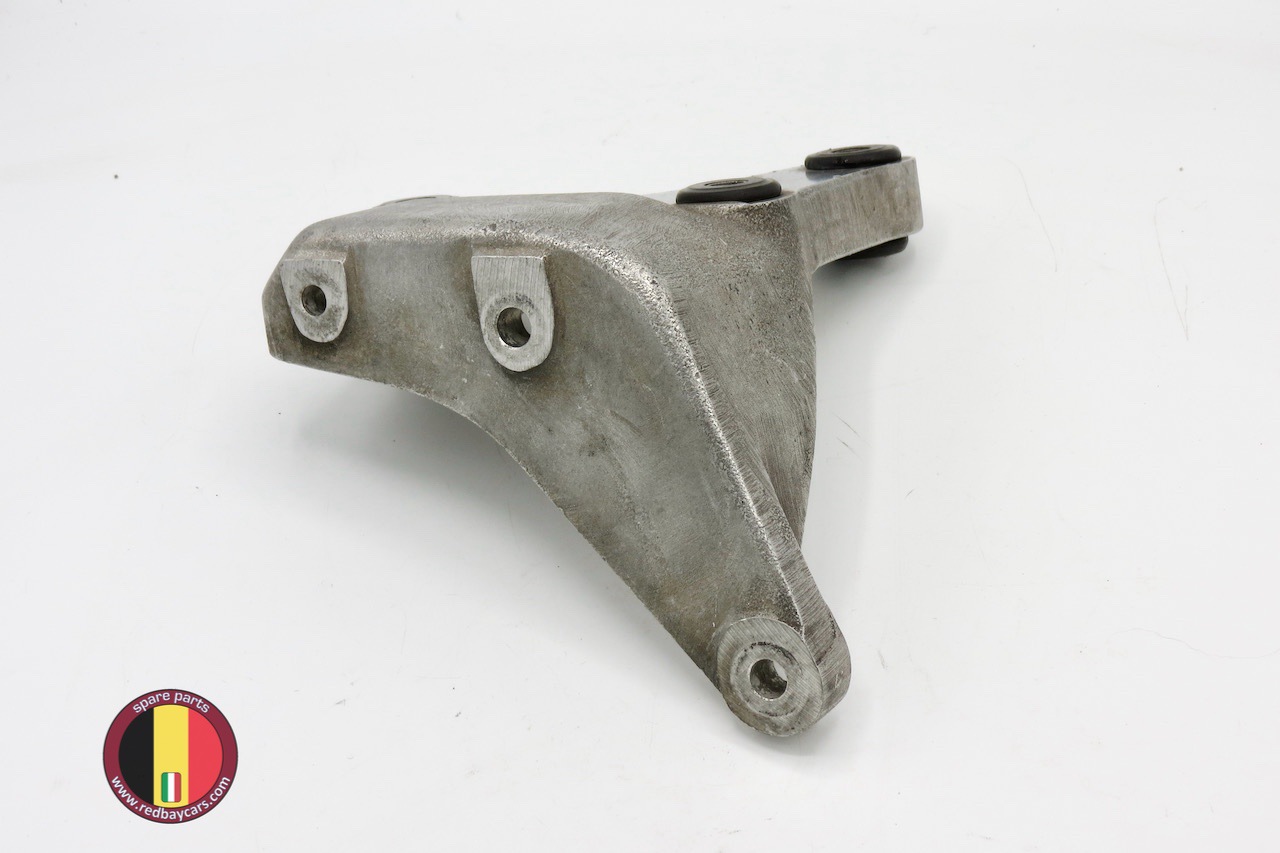

	A/C Compressor Bracket Part nr 108050 A bracket in good shape, with the rubber gaskets included. Fits the 308GT4, 308 and Mondial 8 models. Check availability in the webshop Detailed pictures here and here

Cooling and heating

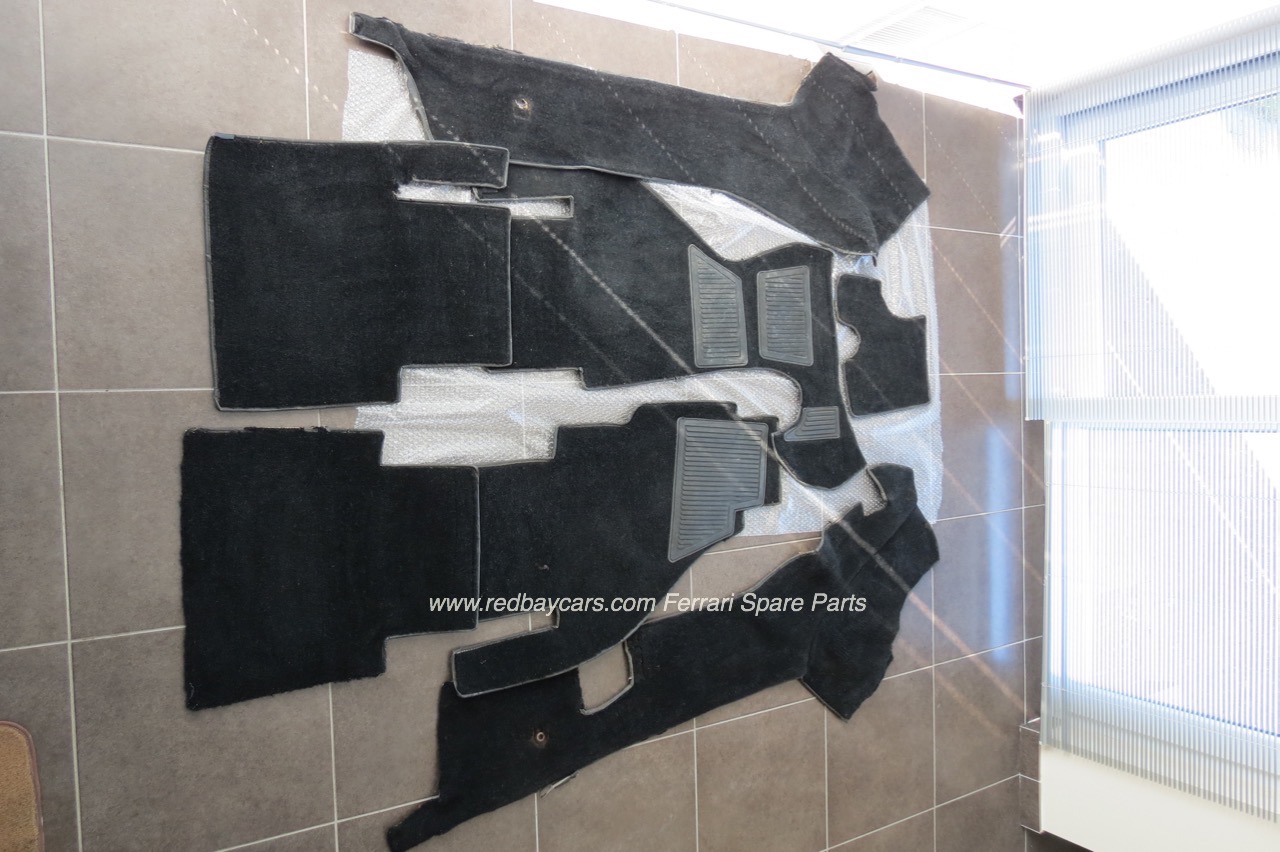

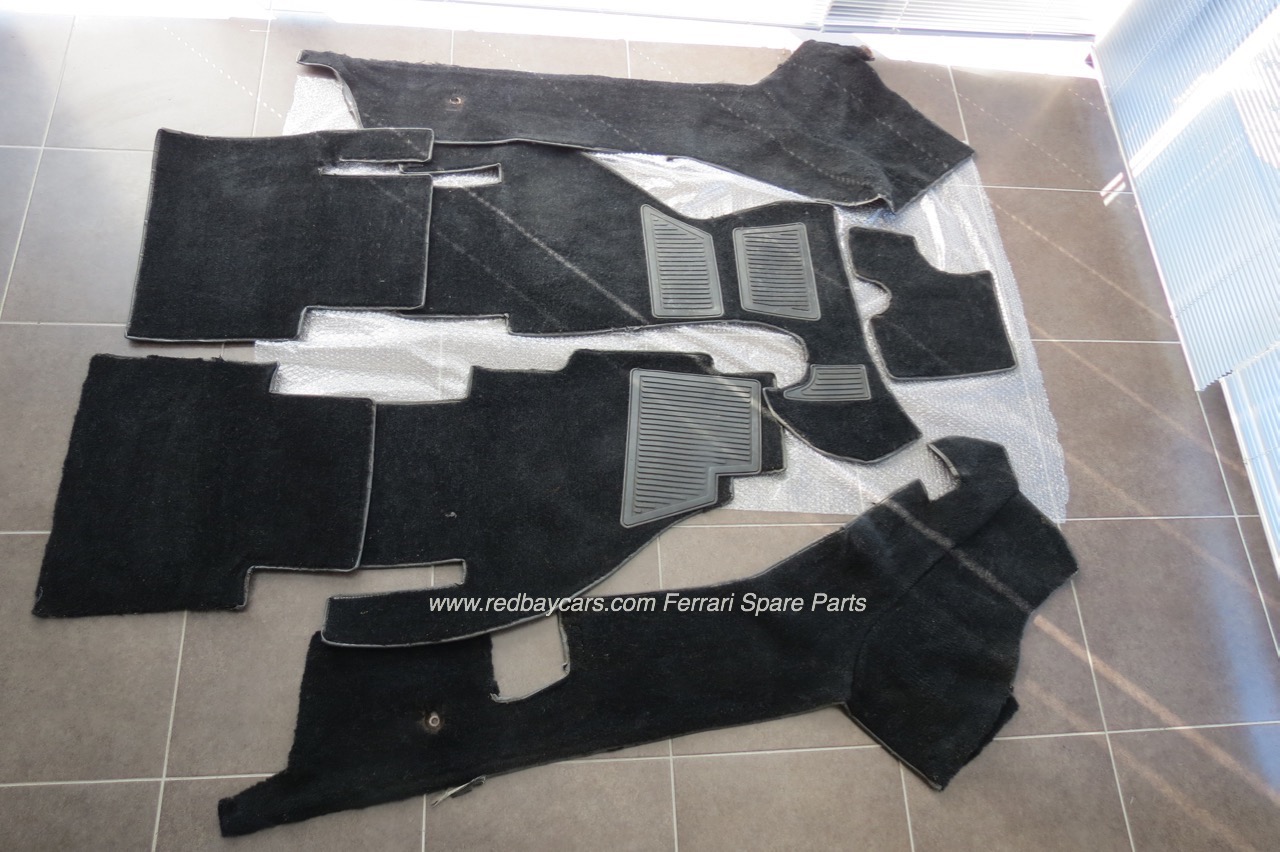

	Set of floor mats for driver and passengers for a RHD car These are original floor mats for the Mondial 8 RHD cars. All mats in good condition, rubber also in very good condition! Ready to be installed. Price: 295 euro Detailed pictures here and here		Complete RHD dashboard We sell a complete black dashboard for a RHD car, holding the full instrument cluster. The dashboard is in excellent condition, as are the leather and instruments. Total speedometer is showing only 29416 miles! You can enquire for specific parts as we do sell them separately. Check availability in the webshop Detailed pictures here, here and here

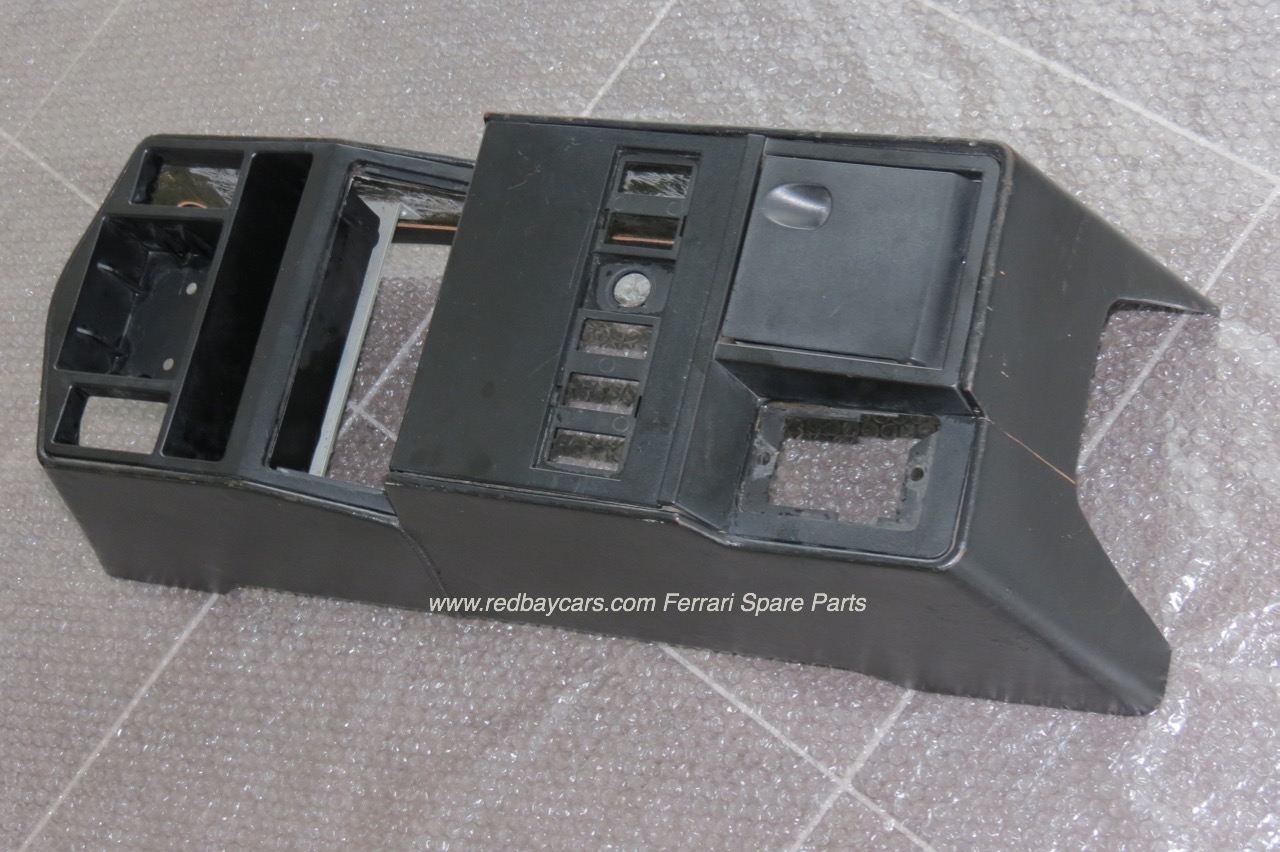

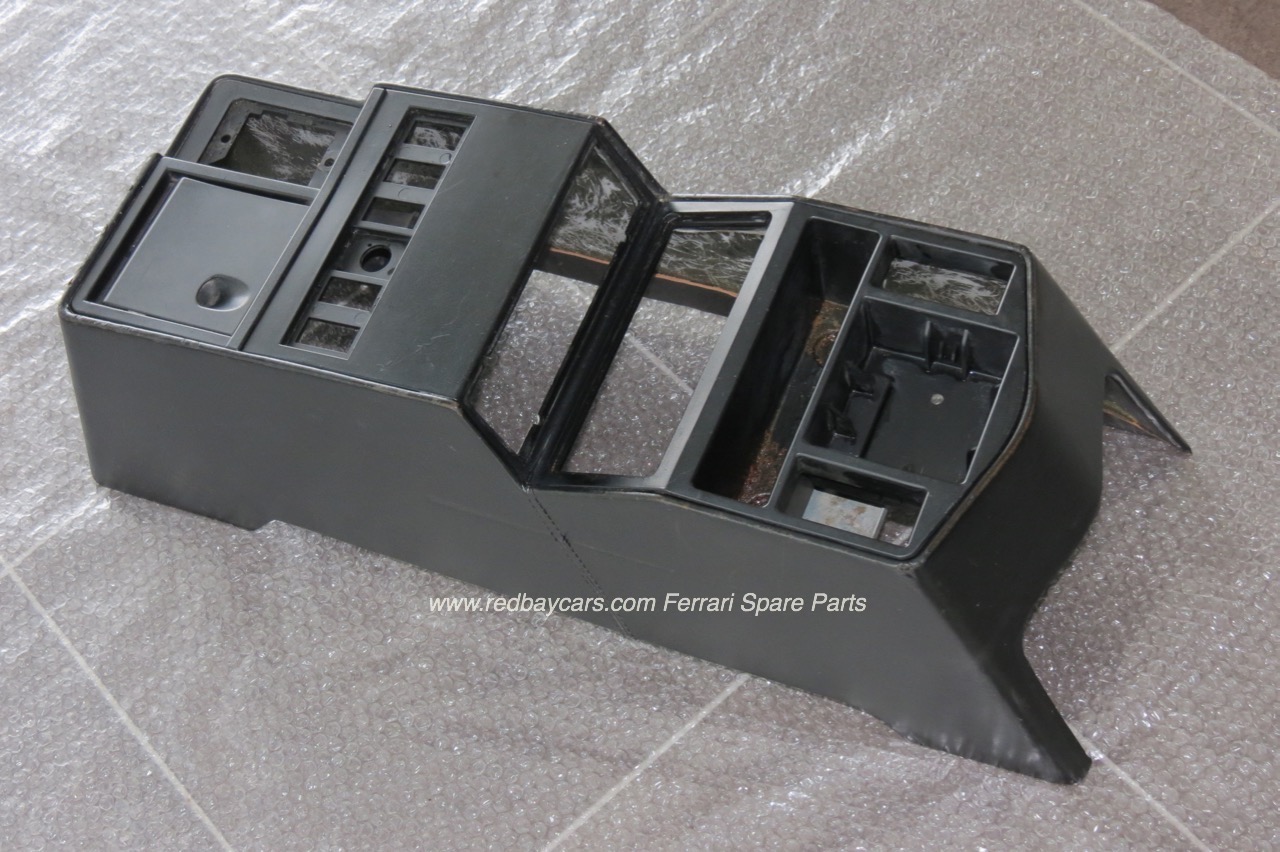

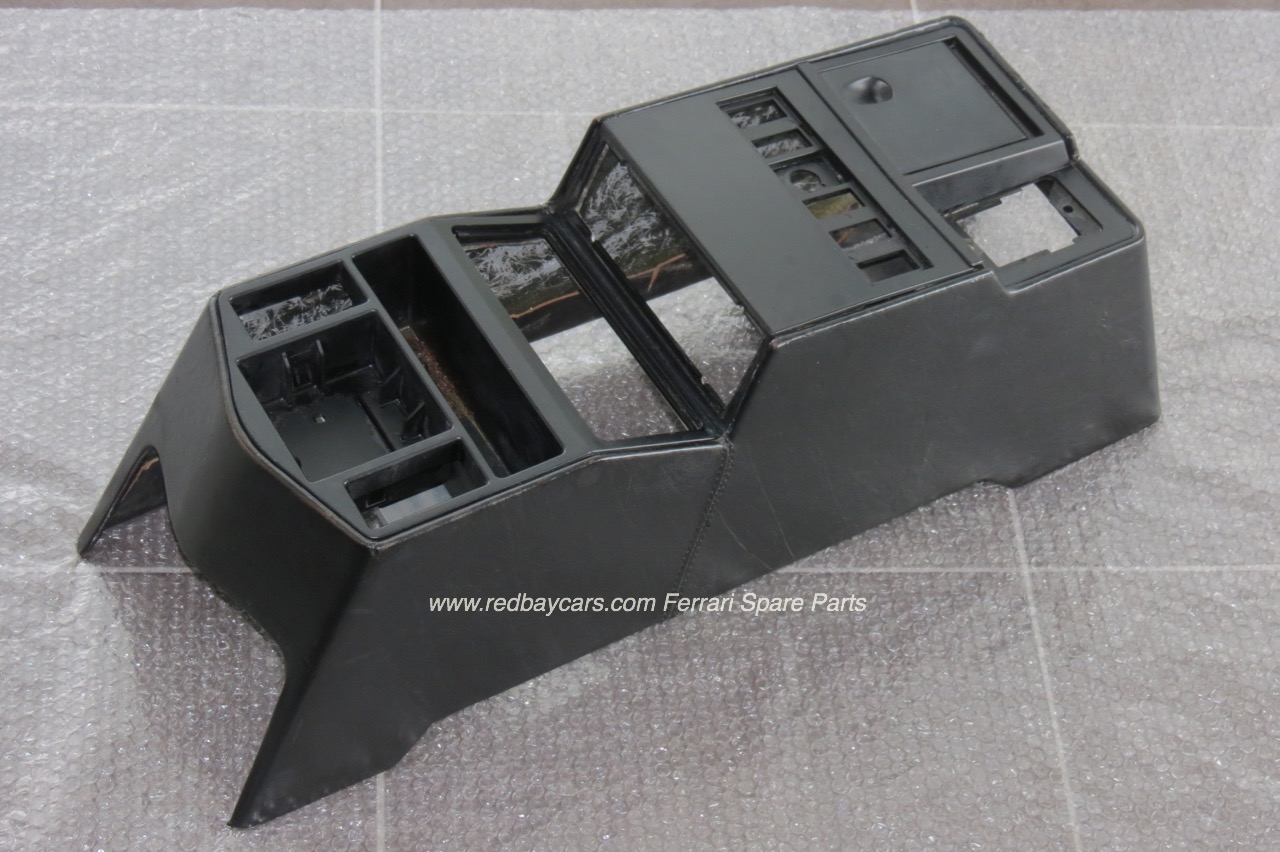

	Part nr 60593300 Center tunnel console with ashtray The console, covered by black leather is in great condition. Some minor scuffs at the back, but it has been treated well with leather conditioner and looks very good. The top ashtray is included, but no lighter. We sell the lighter separately (see the Ferrari generic page). Check availability in the webshop Detailed pictures here, here and here		Part nr 60750200 Heating module with part nr 60928700 thermostat and part nr 60928100 controls This is a complete heater console with all controls and wires. The leather is in good condition with some very small scuffs on the bottom. Sold out at the moment Detailed pictures here, here and here

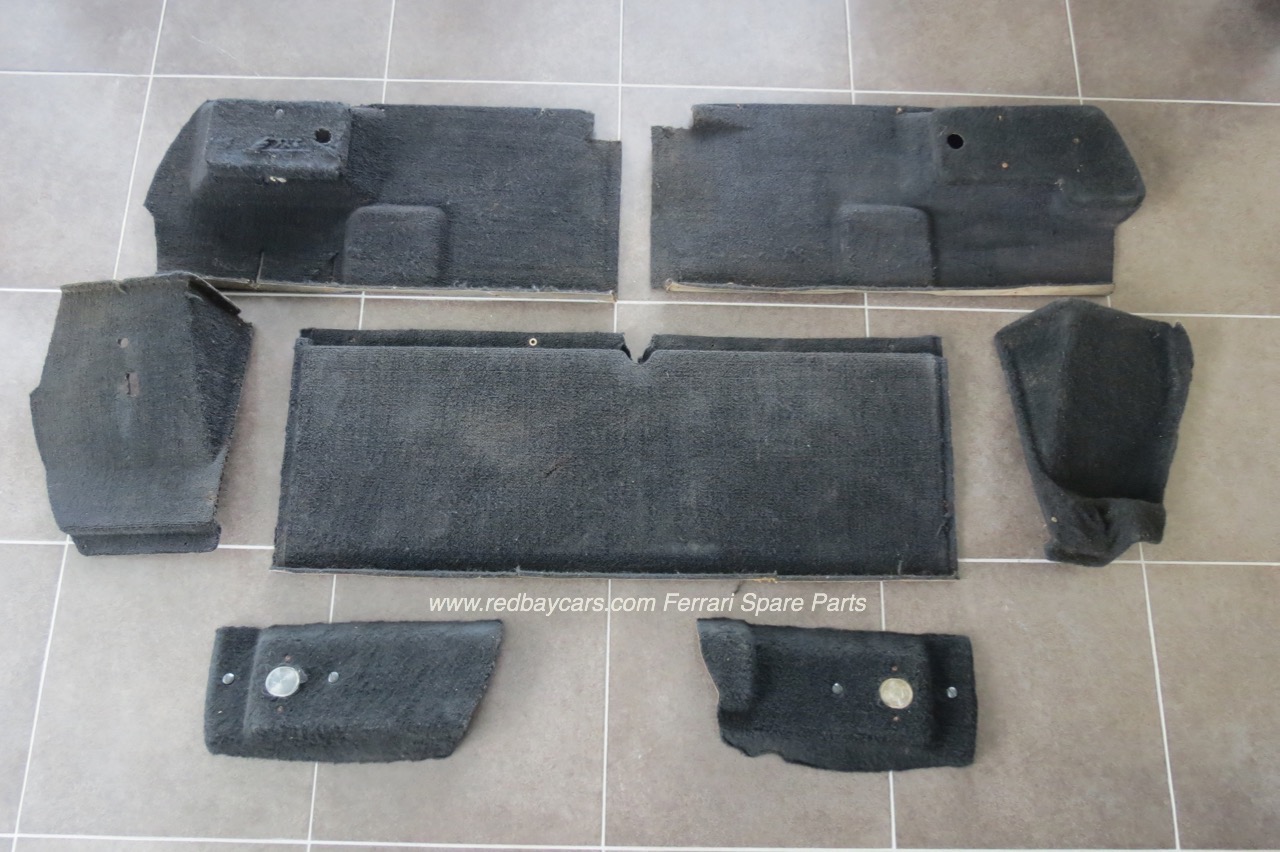

	Part nr 60761500 Protection cover for central tunnel In fine condition, not really more to say, look at the pictures. Check availability in the webshop Detailed pictures here and here		Set of trunk covers In black tissue of excellent quality, we also sell the panel that goes behind the square cover on the side of the engine. Check availability in the webshop Detailed picture here
	Part nr 60656500 Side Air Outlet These outlets fit in the dashboard of the F40, F50 and the Mondial range. It's simply screwed onto the dashboard from underneath. Several available, all in excellent condition. Check availability in the webshop Detailed pictures here and here		Cover for the inner door handle Made in chromed steel, very nice condition no cracks, looking awesome! Check availability in the webshop Detailed pictures here and here

Interior

Wheels

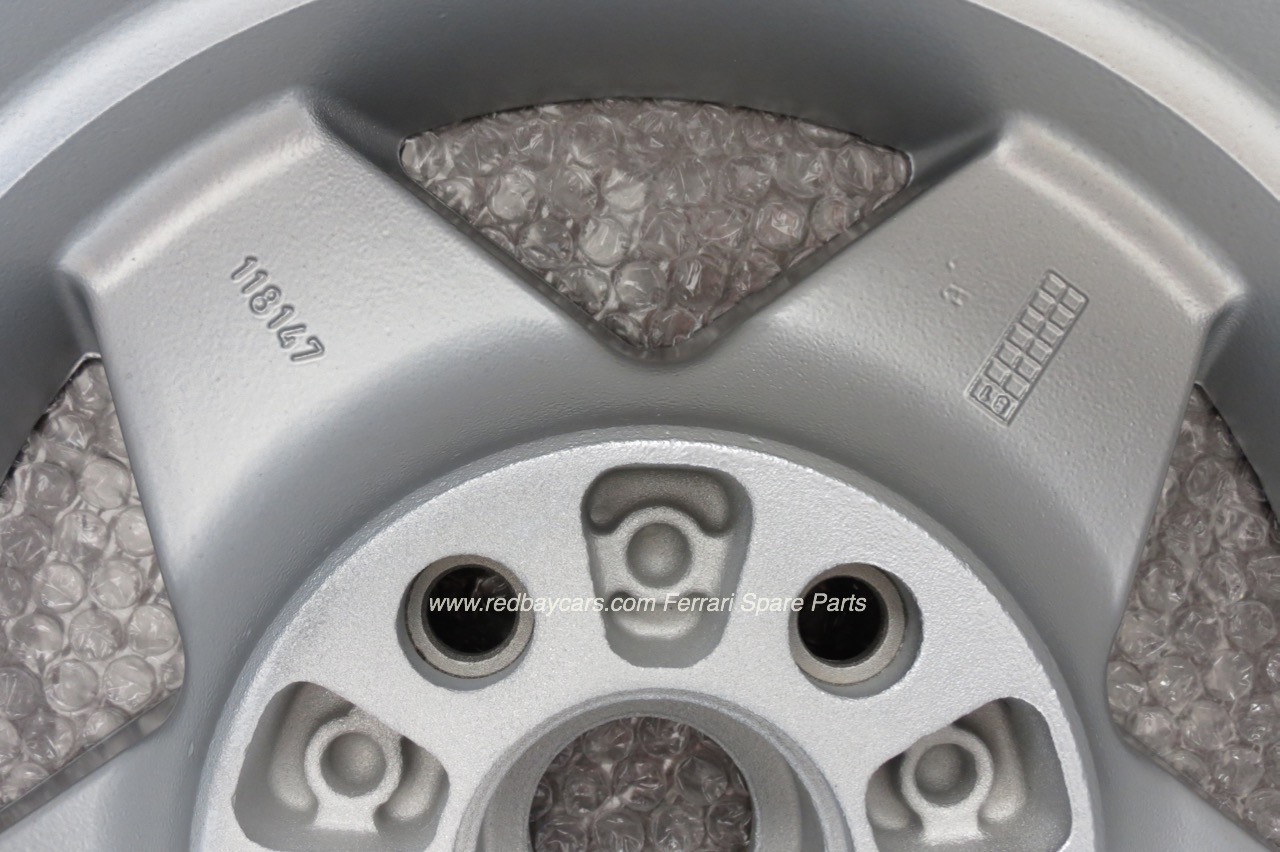

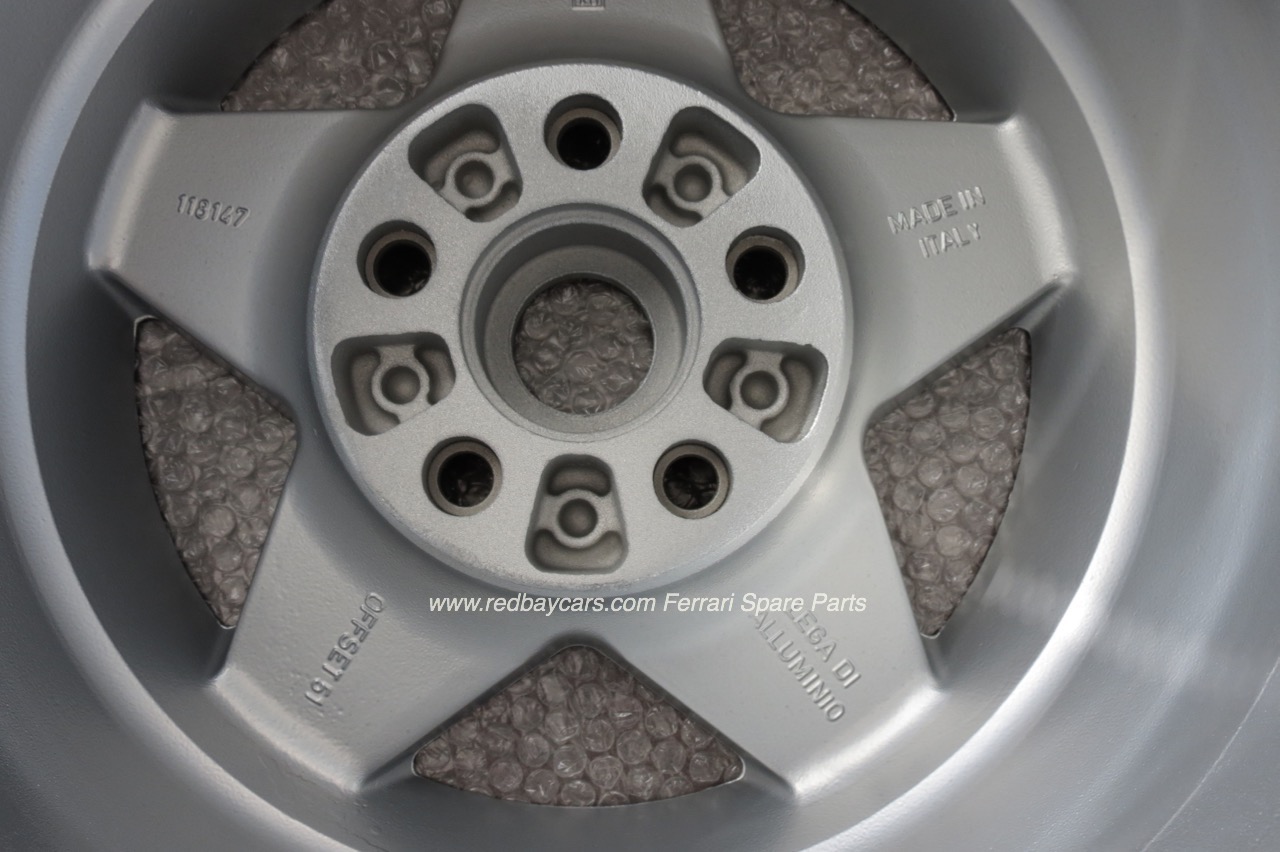

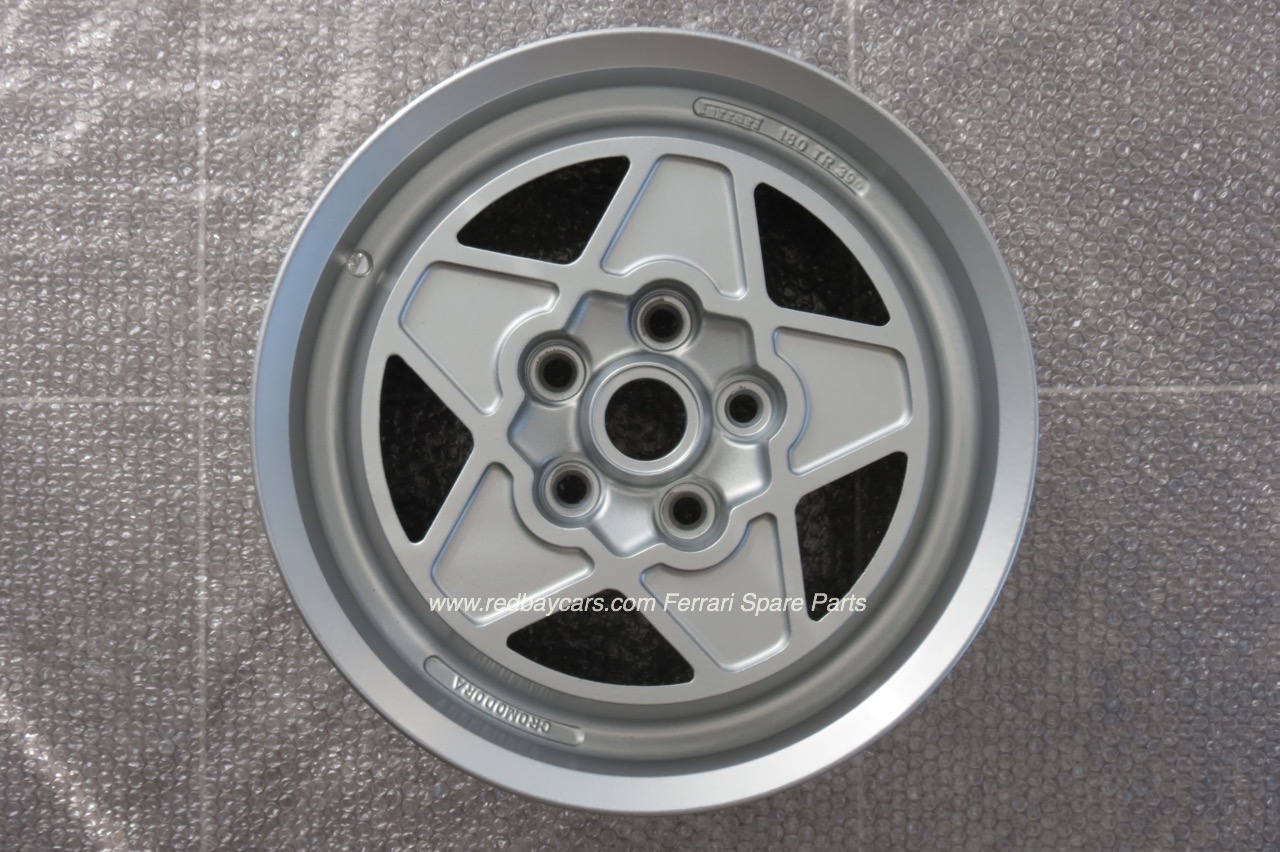

Part nr 118147 Tyre rim, 180 TR 390

We have a set of 5 wheels for Michelin TRX tyres, authentic rims that fit the Mondial 8 and QV's. These have been powder coated with the exact color and correct finish! These are looking very beautiful! They date back to 1981.

Check availability in the webshop

Detailed pictures here, here and here

Exhaust

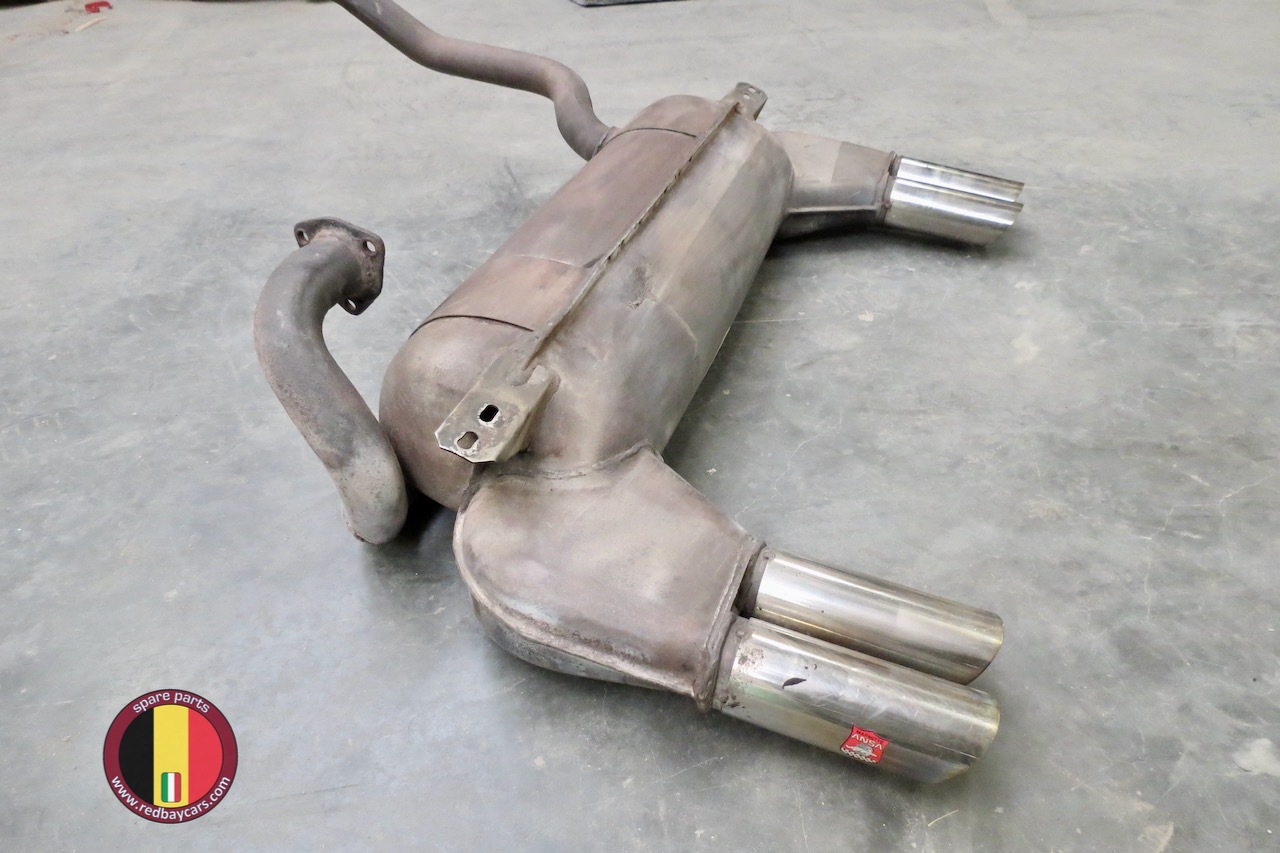

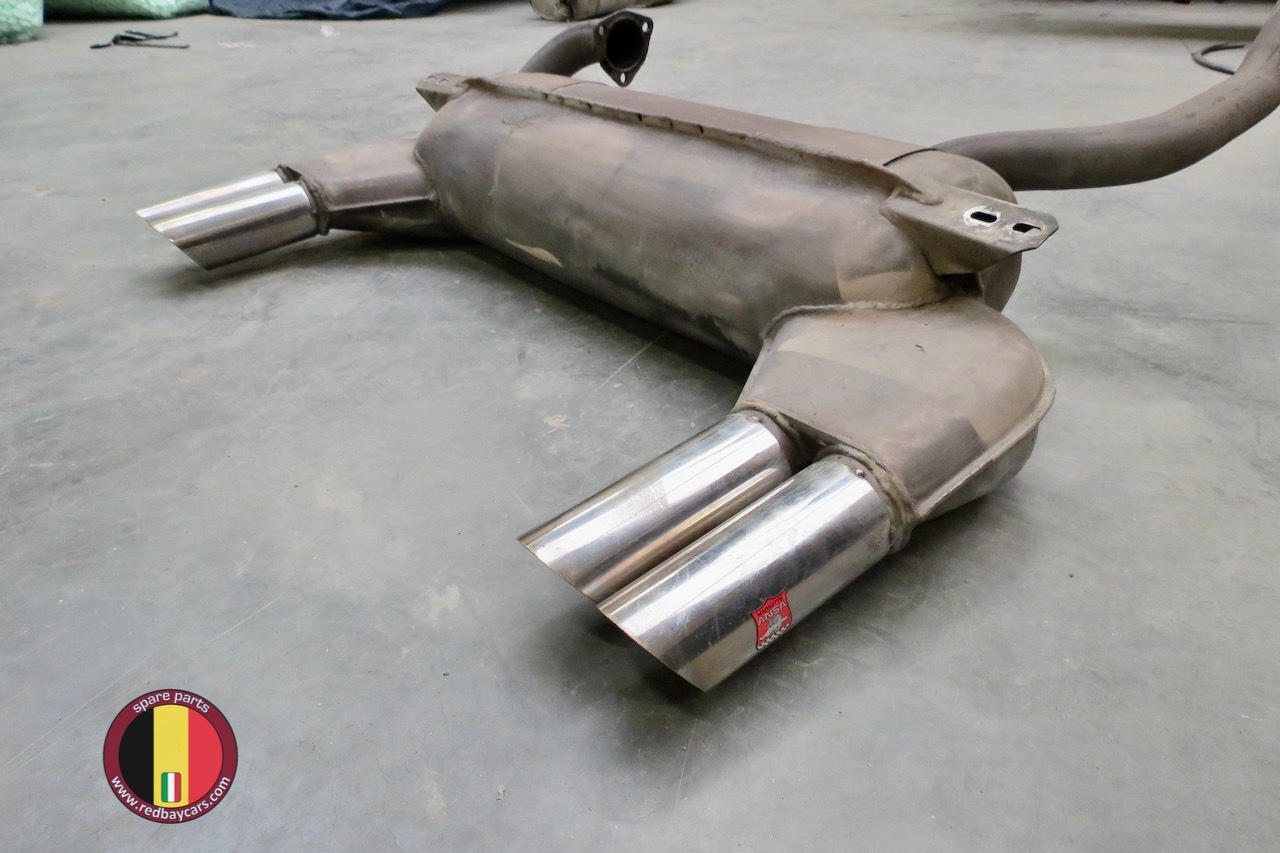

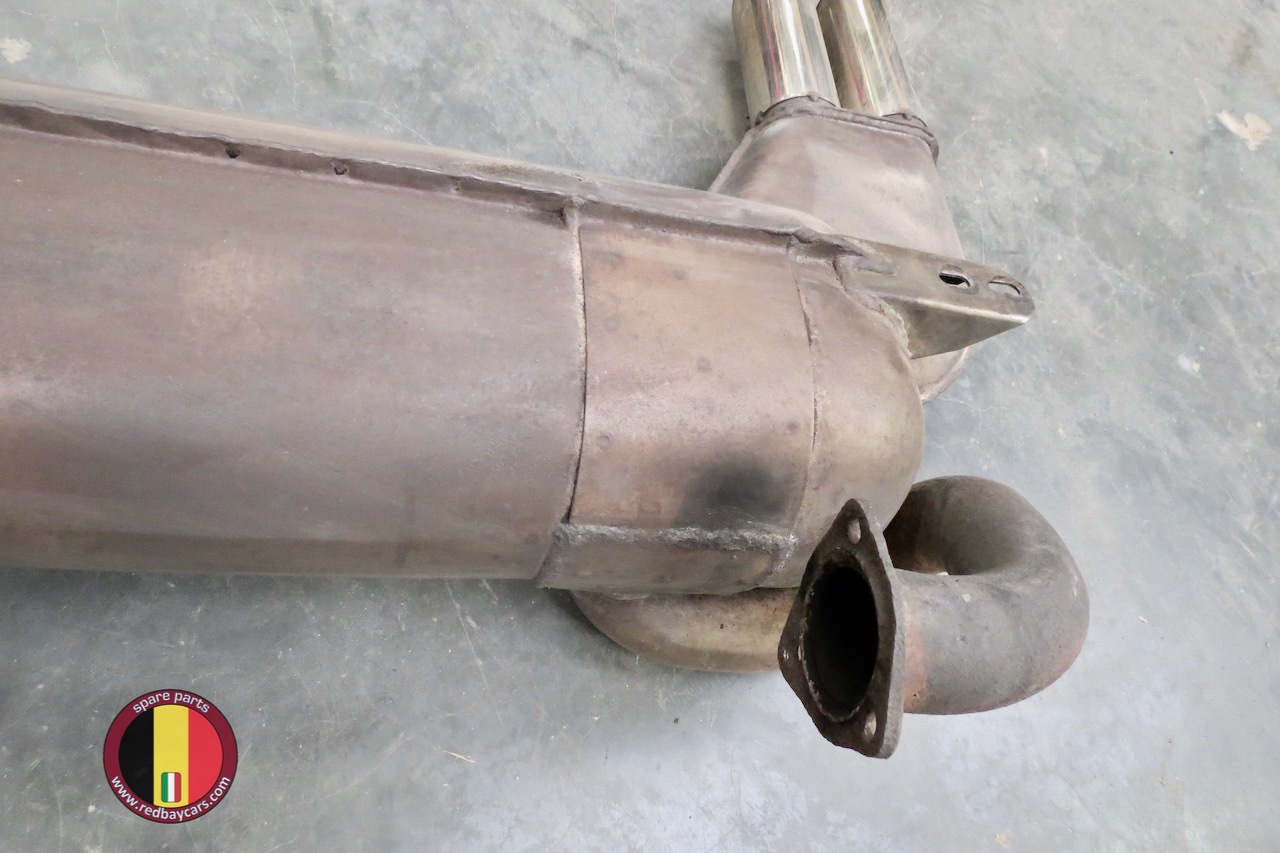

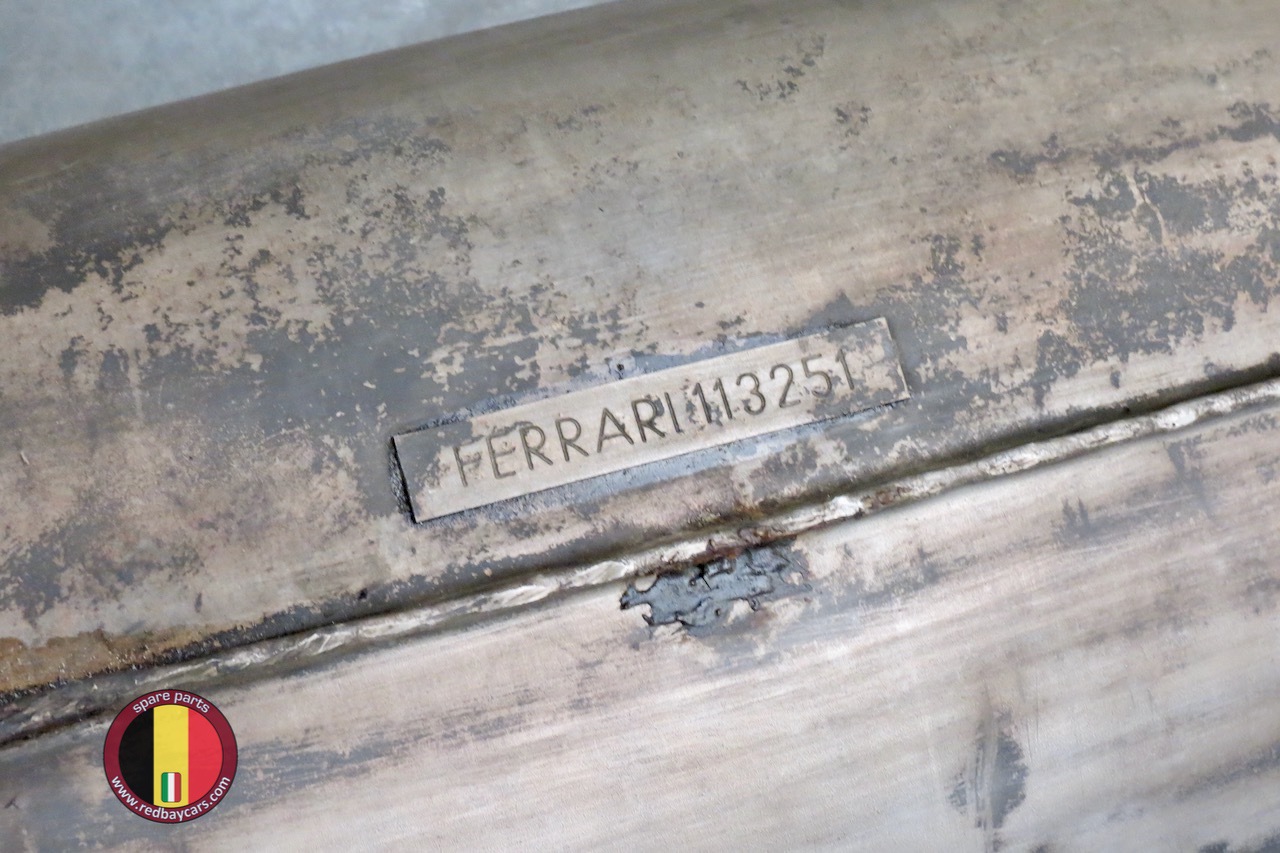

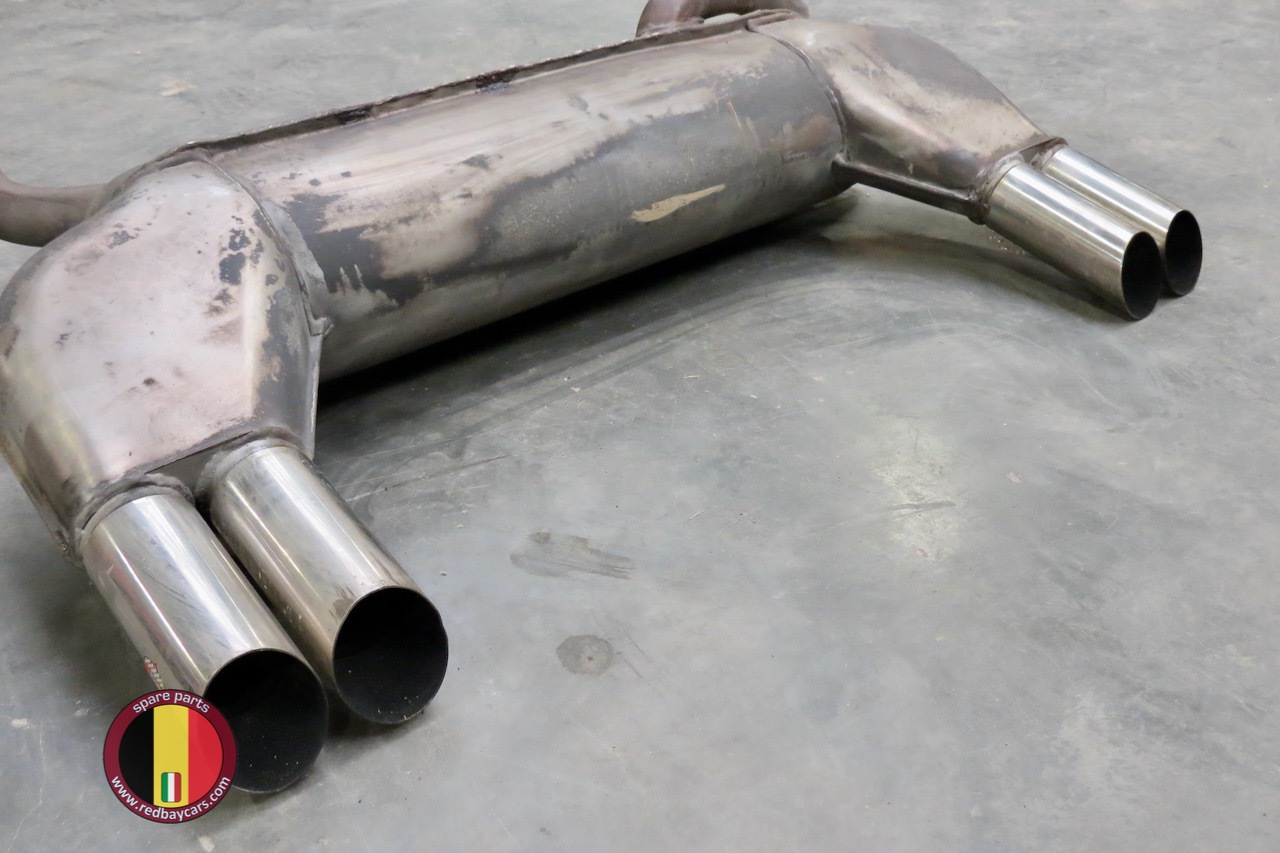

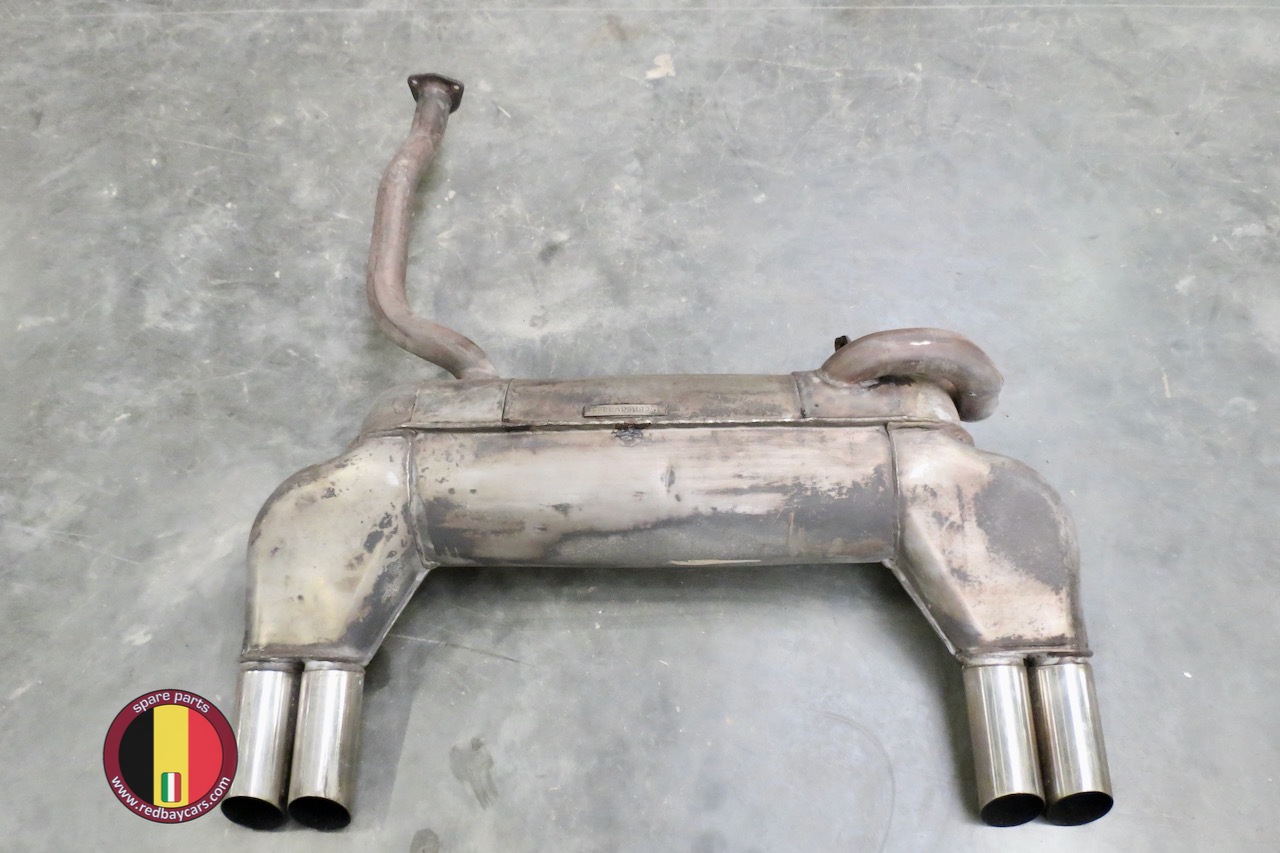

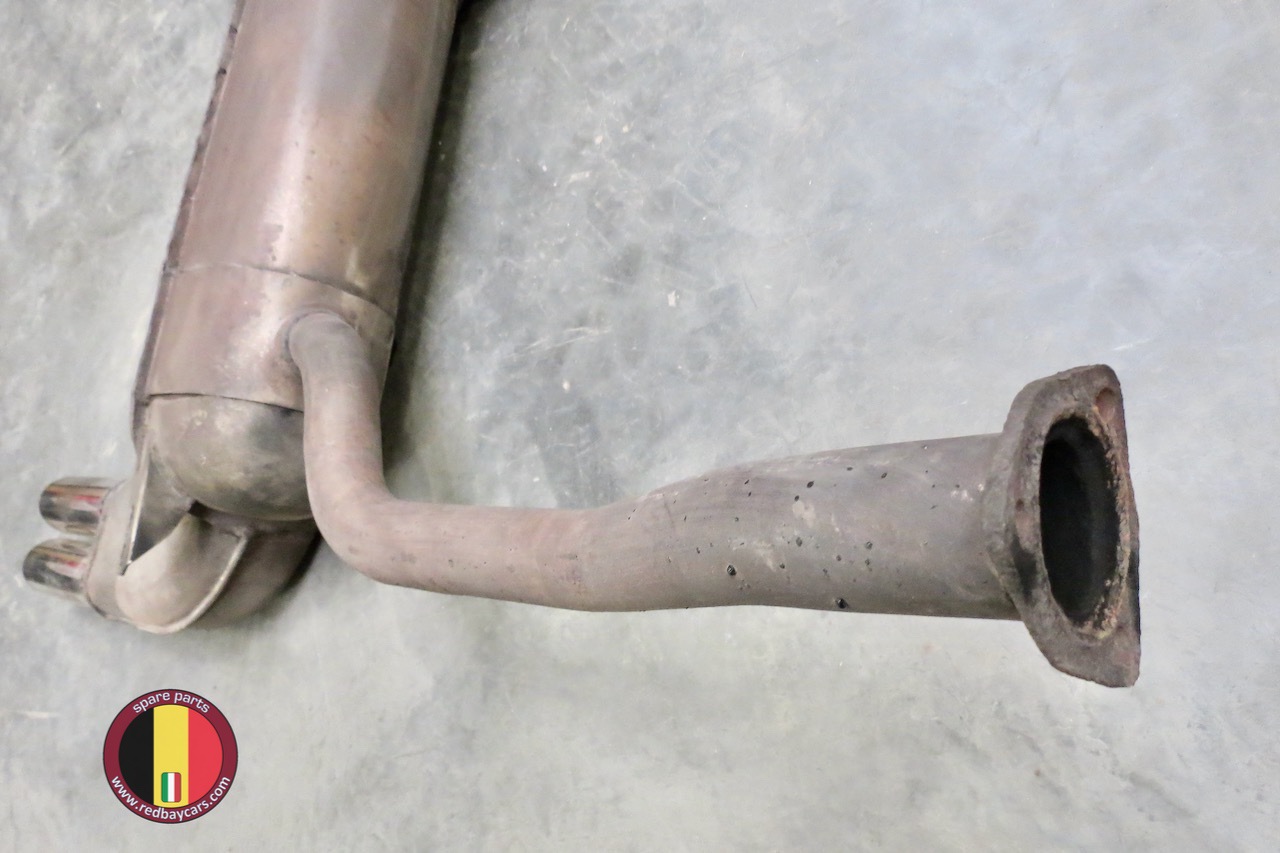

Exhaust Muffler M8 Part nr 113251

This authentic muffler is in used condition, but can still serve many kilometers. The triangles at the end of the pipes (where these are attached to the manifolds) have suffered over time and you should weld 2 new triangles.

Check availability in the webshop

Detailed pictures here, here, here, here, here, here and here
